Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

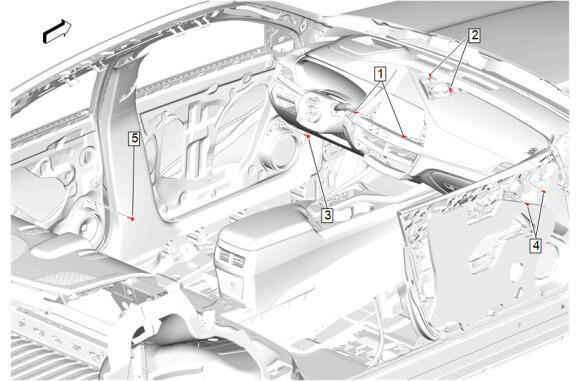

Interior
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Radio Control Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Radio Control Replacement |
| 2 | Radio Front Center Speaker Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Radio Front Center Speaker Replacement |
| 3 | Radio Front Side Door Speaker Bolt | - | - | 2.5 (22 lb in) | Radio Front Side Door Speaker Replacement |
| 4 | Radio Front Side Door Upper Speaker Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Radio Front Side Door Upper Speaker Replacement |
| 5 | Radio Rear Side Door Speaker Bolt | - | - | 2.5 (22 lb in) | Radio Rear Side Door Speaker Replacement |

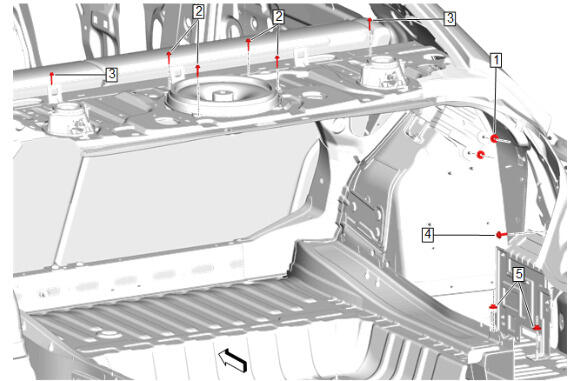

Interior- Rear
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Communication Interface Module Bracket Nut [ 2x ] | - | - | 6 (53 lb in) | Communication Interface Module Bracket Replacement |
| 2 | Radio Rear Speaker Bolt [ 4x ] | - | - | 2.5 (22 lb in) | Radio Rear Speaker Replacement |
| 3 | Radio Rear Surround Speaker Bolt [ 2x ] | - | - | 2.5 (22 lb in) | Radio Rear Surround Speaker Replacement |
| 4 | Radio Speaker Amplifier Bolt | - | - | 9 (80 lb in) | Radio Speaker Amplifier Replacement |
| 5 | Radio Speaker Amplifier Nut [ 2x ] | - | - | 9 (80 lb in) | Radio Speaker Amplifier Replacement |

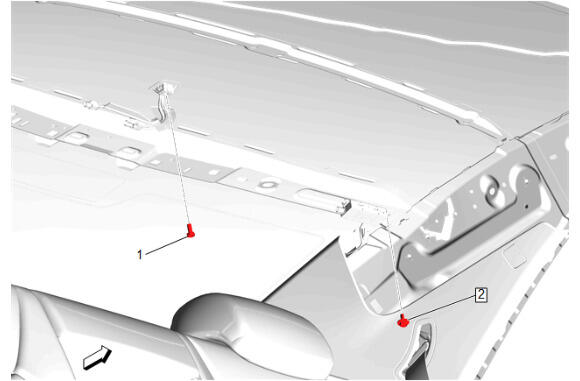

Interior-Roof
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | High Frequency Antenna Bolt | - | - | 9 (80 lb in) | High Frequency Antenna Replacement |
| 2 | Radio Antenna Module Bolt | - | - | 9 (80 lb in) | Radio Antenna Amplifier Replacement |

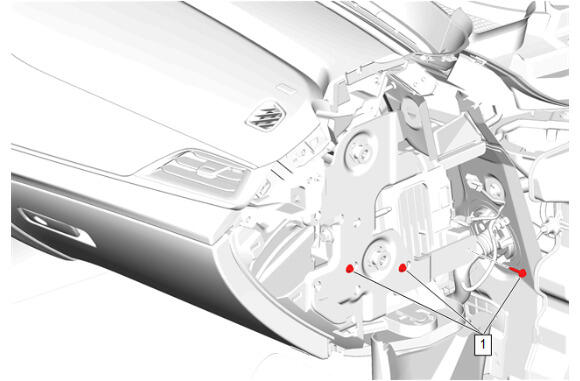

Radio Bracket
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Radio Bracket Bolt [ 3x ] | - | - | 2.5 (22 lb in) | Radio Bracket Replacement |

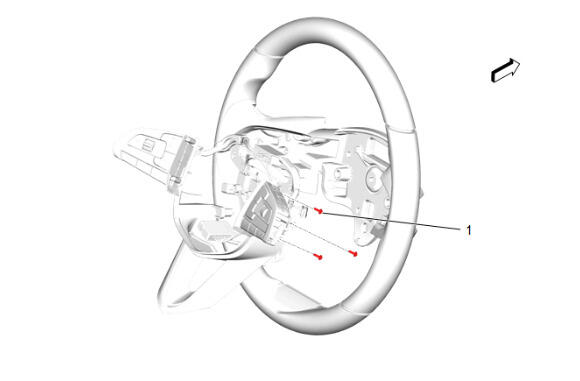

Steering Wheel
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Steering Wheel Bolt [ 3x ] | - | - | 0.8 (7 lb in) | Radio Control Switch Replacement - Steering Wheel |
