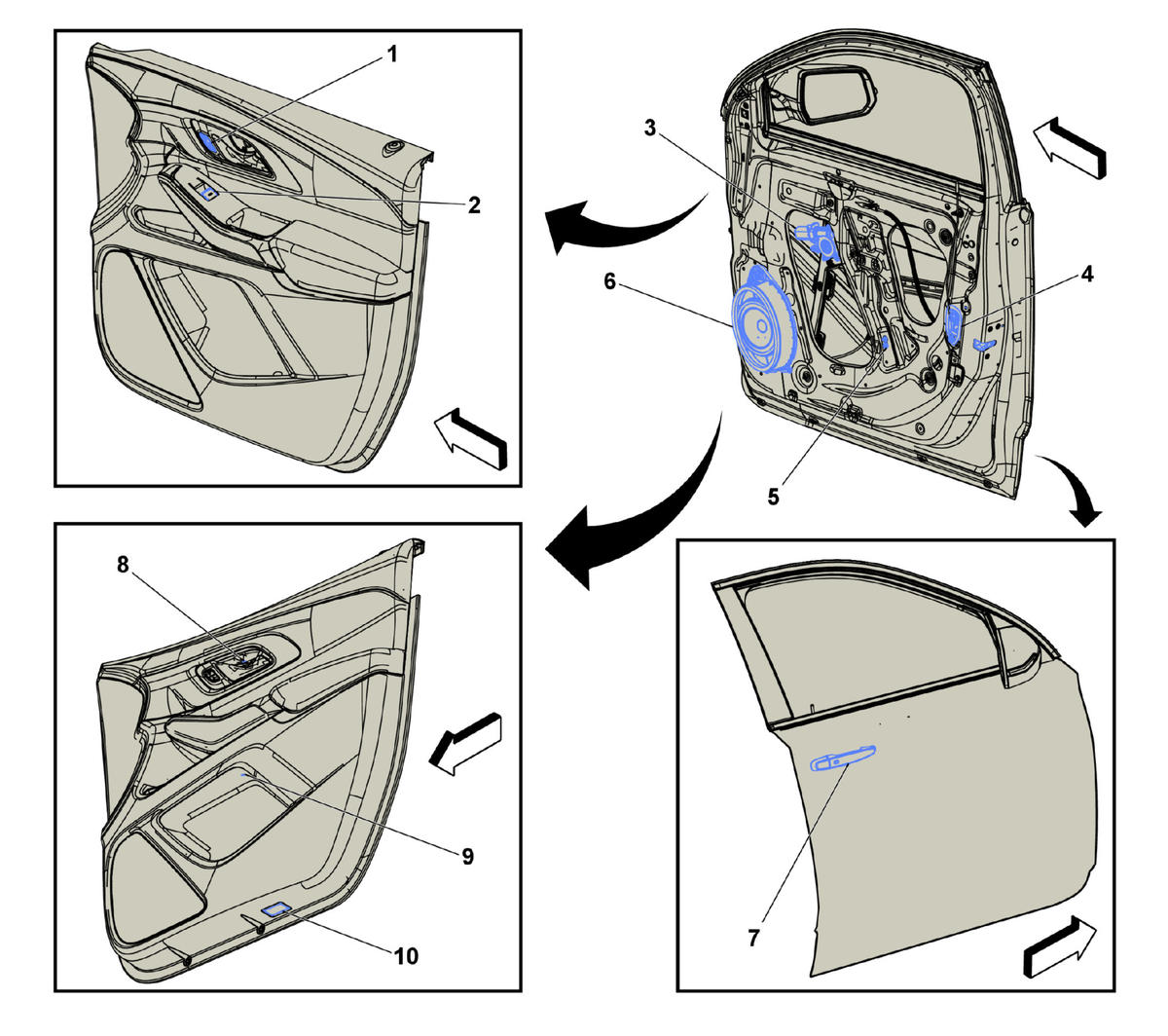

Right Front Door Components
Right Front Door Components
| Component Name | Callout |
|---|---|
| S13P Door Lock Switch - Passenger S13P Door Lock Switch - Passenger | 1 |
| S79P Window Switch - Passenger S79P Window Switch - Passenger | 2 |
| M74P Window Motor - Passenger M74P Window Motor - Passenger | 3 |
| A23P Door Latch Assembly - Passenger A23P Door Latch Assembly - Passenger | 4 |
| B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front | 5 |
| P19AH Speaker - Right Front Door P19AH Speaker - Right Front Door (UQA) , or P19AH Speaker - Right Front Door (UQF) | 6 |
| A24P Door Handle Assembly - Passenger Exterior A24P Door Handle Assembly - Passenger Exterior | 7 |
| E63P Flood Lamp - Passenger Door Handle E63P Flood Lamp - Passenger Door Handle | 8 |
| E55P Flood Lamp - Passenger Door Pocket (1LZ or 2LZ) | 9 |
| E8D Door Courtesy Lamp - Driver E8D Door Courtesy Lamp - Driver | 10 |
