Fastener Specifications
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Image Display Cameras
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rearview Camera Nut [ 3x ] | - | - | 4.7 (42 lb in) | Rearview Driver Information Camera Replacement |

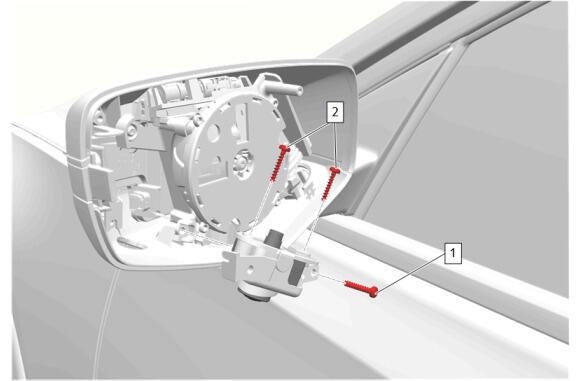

Side View Driver Information Camera
| Callout | Component Name [ Component Quantity ] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Outside Rearview Mirror Bolt | - | - | .9 N.m (8 lb in) | |
| 2 | Side View Driver Information Camera Bolt [ 2x ] | - | - | .9 (8 lb in) |
