Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

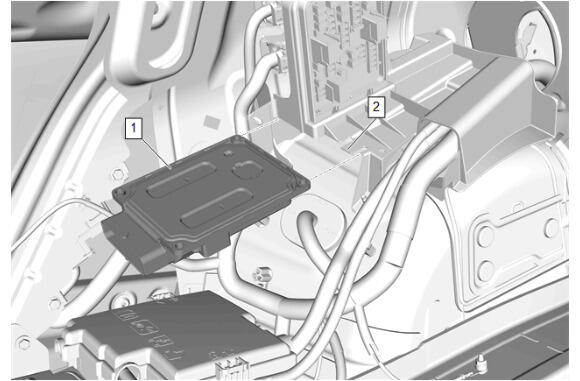

Slide the electronic suspension control module (1) into the rear body fuse block bracket until the retaining tab (2) is engaged.
- Reposition the wiring harness and connect the wiring harness retainers.

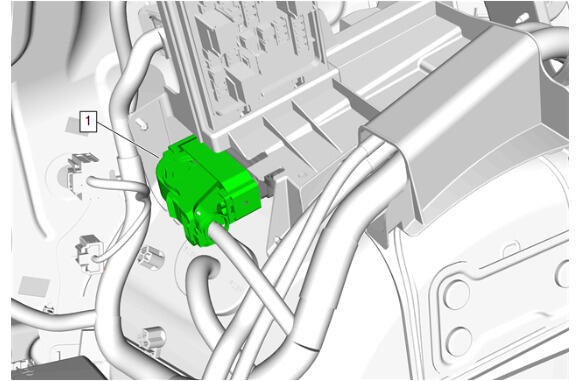

Electrical Connector (1) @ Electronic Suspension Control Module - Connect

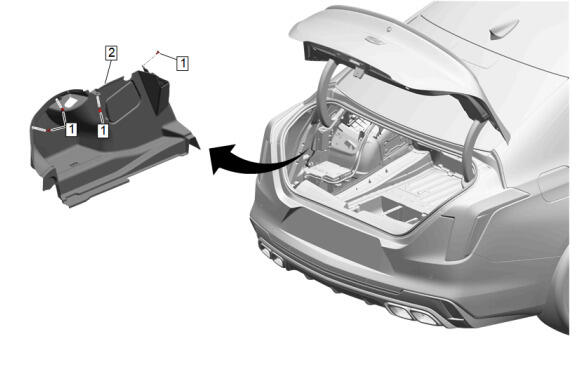

Rear Compartment Side Trim-Left Side (2) - Install
- Rear Compartment Side Trim Insulator Retainer (1) - Install [4x]
Rear End Trim Finish Panel (1) - Install
Rear End Trim Finish Panel Opening Cover (1) - Install
Rear Compartment Floor Panel Trim (1) - Install
Cargo Tie Down Loop (3) - Install [2x]
- Cargo Tie Down Loop Bolt (2) - Install and tighten [2x] - Fastener Specifications
- Cargo Tie Down Loop Bolt Cap (1) - Install [2x]
- Perform the necessary programming and setup procedure:Control Module References
CAUTION:
Refer to Fastener Caution .
