Fastener Specifications

WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.

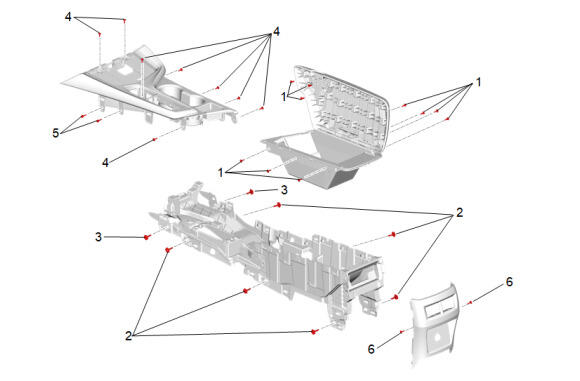

GM5423438Courtesy of GENERAL MOTORS COMPANY
Front Floor Console

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Floor Console Armrest Bolt [ 10x ] - - 2.5 (22 lb in) Front Floor Console Armrest Replacement (with M5N) Front Floor Console Armrest Replacement (with MQA)
2 Front Floor Console Bolt [ 6x ] - - 7 (62 lb in) Front Floor Console Removal and Installation (with M5N) Front Floor Console Removal and Installation (with MQA)
3 Front Floor Console Bracket Bolt [ 2x ] - - 7 (62 lb in) Front Floor Console Removal and Installation (with M5N) Front Floor Console Removal and Installation (with MQA)
4 Front Floor Console Cup Holder Bolt [ 8x ] - - 2.5 (22 lb in) Front Floor Console Cup Holder Replacement (with M5N) Front Floor Console Cup Holder Replacement (with MQA)
5 Front Floor Console Trim Plate Bolt [ 2x ] - - 2.5 (22 lb in) Front Floor Console Trim Plate Replacement (with M5N) Front Floor Console Trim Plate Replacement (with MQA)
6 Front Floor Console Rear Cover Bolt [ 2x ] - - 2.5 (22 lb in) Front Floor Console Rear Trim Panel Replacement

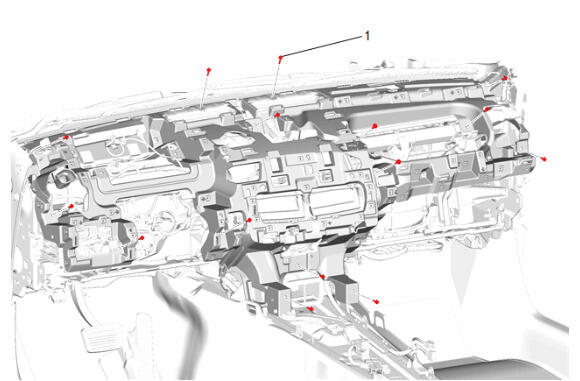

GM5493096Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Carrier with Head Up Display

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt [ 15x ] - - 2.5 (22 lb in) Instrument Panel Carrier Replacement (without Head Up Display) Instrument Panel Carrier Replacement (with Head Up Display)
GM5492973Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Carrier without Head Up Display

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Bolt [ 18x ] - - 2.5 (22 lb in) Instrument Panel Carrier Replacement (without Head Up Display) Instrument Panel Carrier Replacement (with Head Up Display)

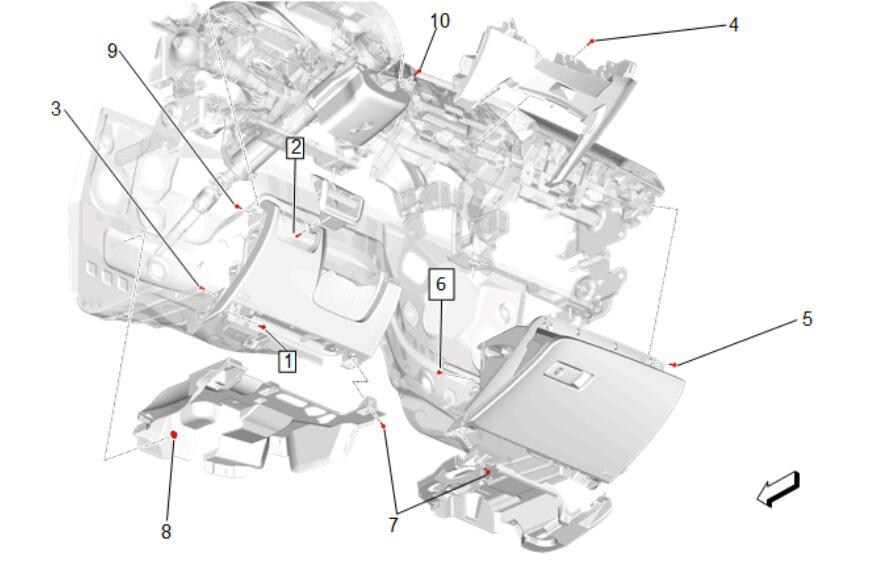

GM5437577Courtesy of GENERAL MOTORS COMPANY
Instrument Panel- Lower

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Data Link Connector Bolt [ 2x ] - - 2.5 (22 lb in) Instrument Panel Knee Bolster Replacement
2 Instrument Panel Accessory Bezel Bolt [ 4x ] - - 0.75 (7 lb in) Instrument Panel Switch Trim Plate Replacement
3 Instrument Panel Bolt - - 2.5 (22 lb in) Instrument Panel Knee Bolster Replacement
4 Instrument Panel Center Trim Panel Bolt [ 6x ] - - 2.5 (22 lb in) Instrument Panel Lower Center Trim Panel Replacement (with M5N) Instrument Panel Lower Center Trim Panel Replacement (with MQA)
5 Instrument Panel Compartment Bolt [ 5x ] - - 2.5 (22 lb in) Instrument Panel Compartment Replacement
6 Instrument Panel Compartment Door Dampener Bolt [ 2x ] - - 1 (9 lb in) Instrument Panel Compartment Door Dampener Replacement
7 Instrument Panel Insulator Bolt [ 6x ] - - 2.5 (22 lb in) Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
Instrument Panel Lower Trim Panel Insulator Replacement - Right Side
8 Instrument Panel Insulator Nut [ 2x ] - - 6 (53 lb in) Instrument Panel Lower Trim Panel Insulator Replacement - Left Side
9 Instrument Panel Knee Bolster Bolt [ 3x ] - - 2.5 (22 lb in) Instrument Panel Knee Bolster Replacement
10 Instrument Panel Steering Column Lower Trim Cover Bolt [ 3x ] - - 2.5 (22 lb in) Instrument Panel Steering Column Lower Trim Cover Replacement

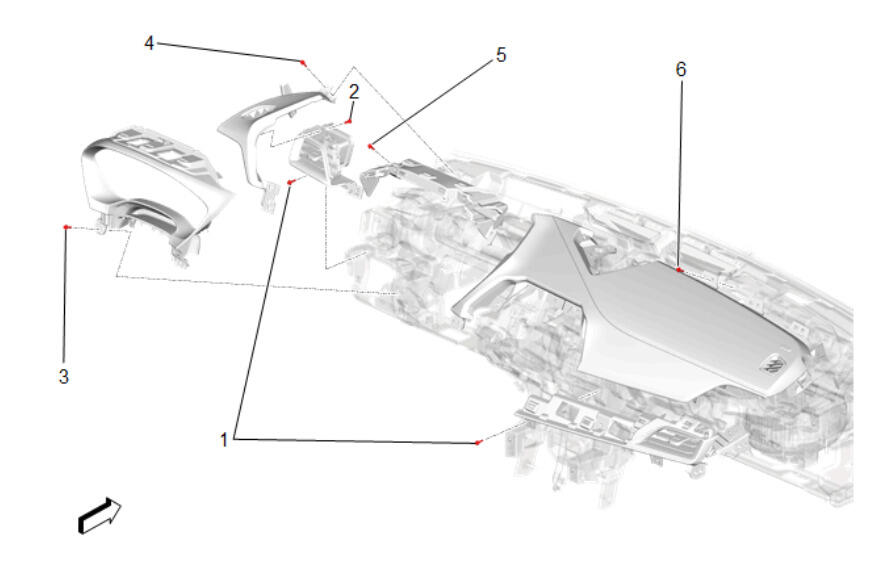

GM5442480Courtesy of GENERAL MOTORS COMPANY
Instrument Panel- Upper

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Instrument Panel Accessory Trim Plate Bolt @ Instrument Panel Carrier [ 10x ] - - 2.5 (22 lb in) Instrument Panel Trim Plate Applique Replacement - Right Side
Instrument Panel Trim Plate Applique Replacement - Left Side
2 Instrument Panel Accessory Trim Plate Bolt @ Instrument Panel Upper Trim Panel [ 2x ] - - 4.7 (42 lb in) Instrument Panel Trim Plate Applique Replacement - Left Side
3 Instrument Panel Cluster Trim Plate Bolt [ 2x ] - - 2.5 (22 lb in) Instrument Panel Cluster Trim Plate Replacement
4 Instrument Panel Outer Upper Bolt [ 2x ] - - 2.5 (22 lb in) Instrument Panel Upper Trim Panel Replacement - Left Side
5 Instrument Panel Upper Bracket Bolt [ 4x ] - - 2.5 (22 lb in) Instrument Panel Upper Bracket Replacement
6 Instrument Panel Upper Trim Panel Bolt [ 9x ] - - 2.5 (22 lb in) Instrument Panel Upper Trim Panel Replacement - Right Side

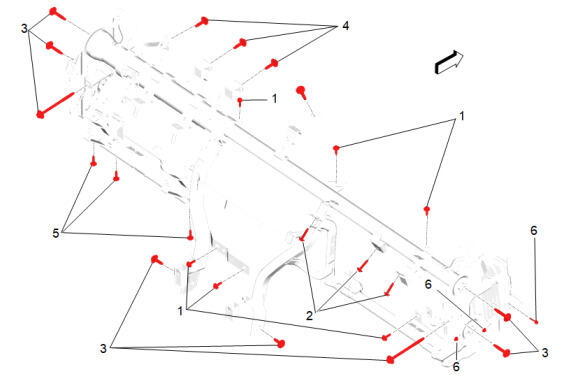

GM5507609Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Tie Bar

Callout Component Name [ Component Quantity ] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Heater and Air Conditioning Evaporator and Blower Module Bolt [ 6x ] - - 9 (80 lb in) Instrument Panel Tie Bar Replacement
2 Instrument Panel Airbag Bolt [ 3x ] - - 9 (80 lb in) Instrument Panel Upper Trim Panel Replacement - Right Side
3 Instrument Panel Tie Bar Bolt [ 9x ] - - 22 (16 lb ft) Instrument Panel Tie Bar Replacement
4 Instrument Panel Tie Bar Brace Bolt @ Engine Compartment [ 3x ] - - 22 (16 lb ft) Instrument Panel Tie Bar Replacement
5 Instrument Panel Tie Bar Brace Bolt @ Instrument Panel Knee Bolster Deflector [ 3x ] - - 9 (80 lb in) Instrument Panel Tie Bar Replacement
Instrument Panel Knee Bolster Deflector Replacement
6 Radio Bracket Bolt [ 3x ] - - 2.5 (22 lb in) Radio Bracket Replacement
