Installation Procedure
WARNING: This page is about a different car, the 2020 Cadillac CT4. However, it is still accessible from the selected car via links, so may be relevant.
Connect the electrical connector.
- Slide the sensor into the keyhole slot.

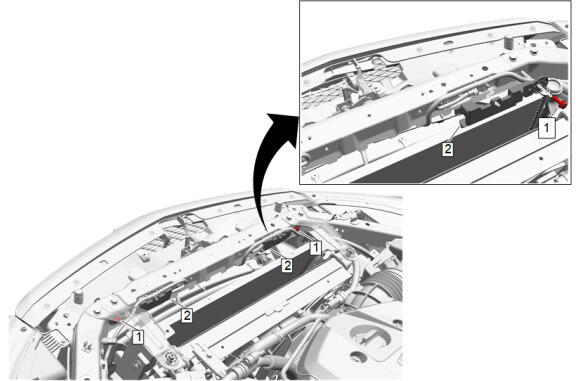

- Airbag Front End Discriminating Sensor (1) - Install and tighten - Fastener Specifications
Airbag Front End Discriminating Sensor Protector (2) - Install [ 2x ]
- Airbag Front End Discriminating Sensor Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

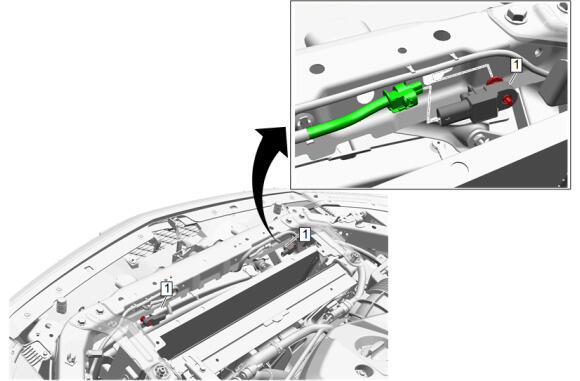

- Reinstall the harness retainers, as needed.
Wiring Harness Retainer-Right Side (1) - Install

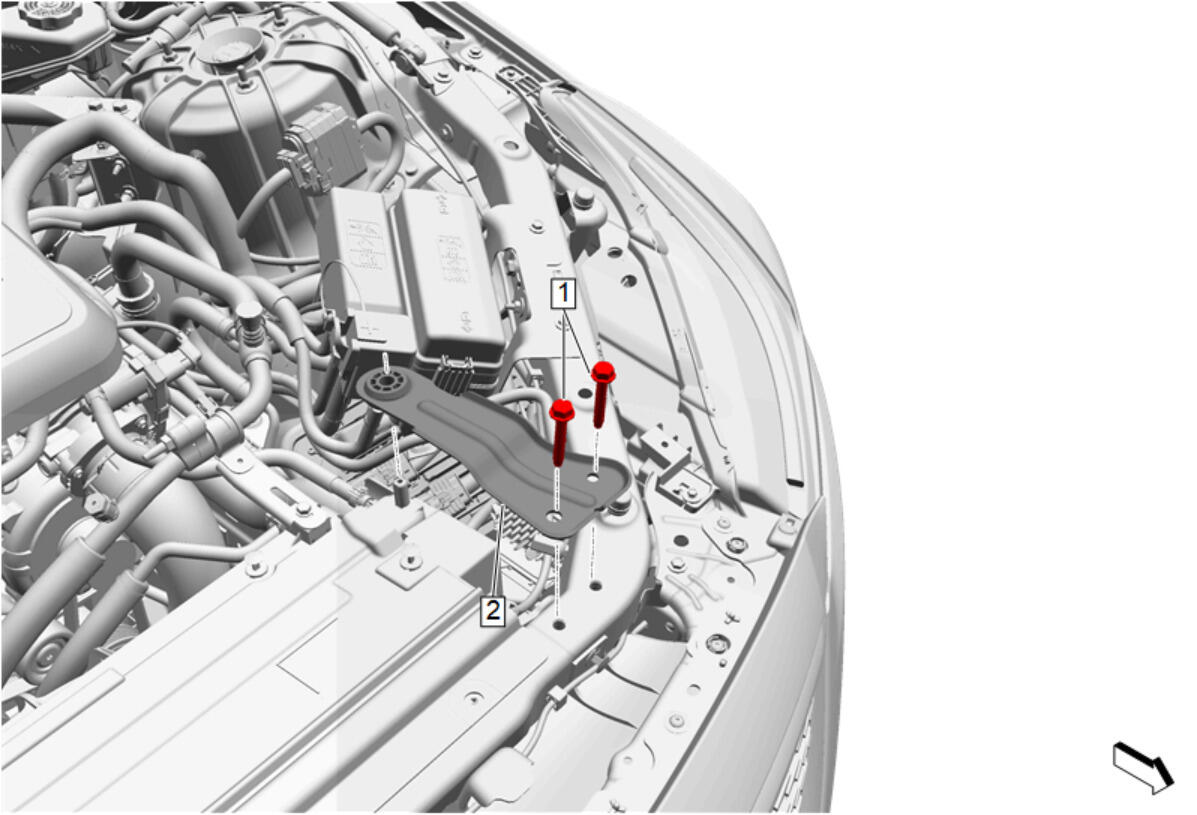

- Radiator Upper Bracket-Right Side (3) - Install
- Radiator Upper Bracket Bolt-Right Side (2) - Install and tighten [ 2x ] -

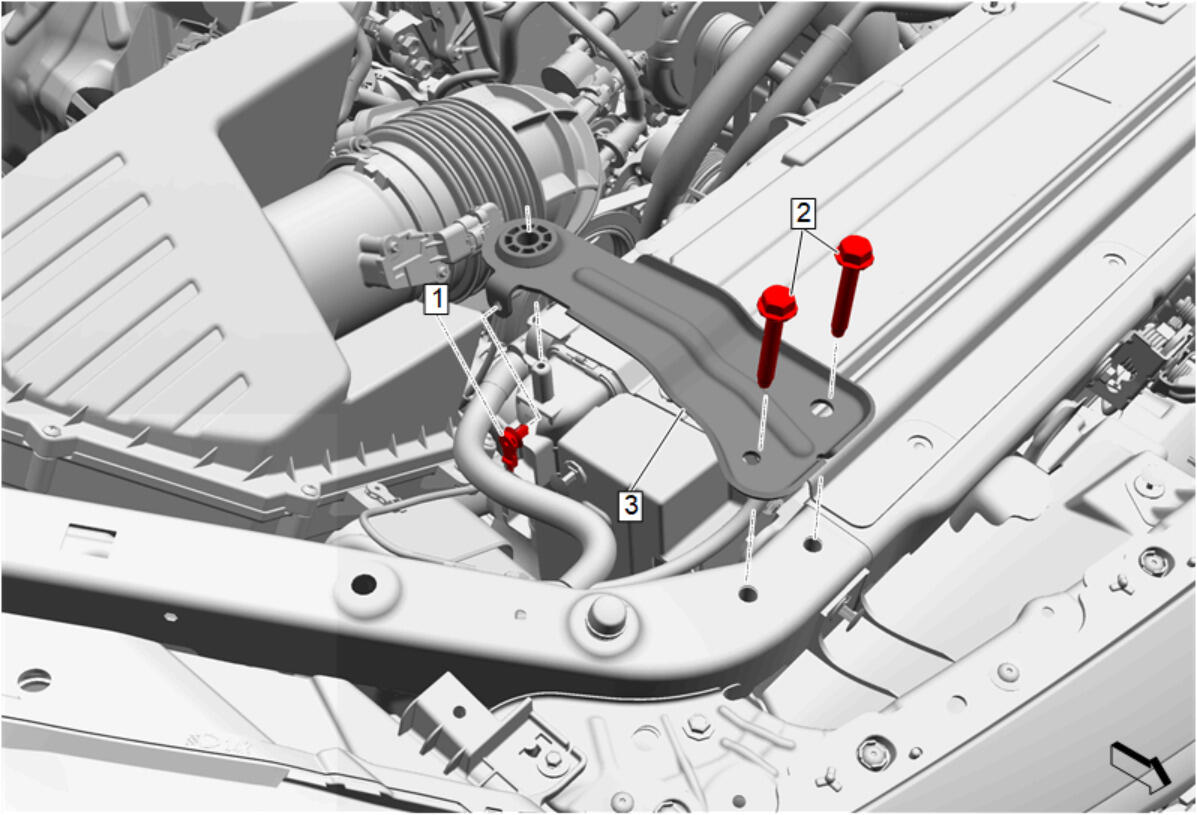

Radiator Upper Bracket- Left Side (2) - Install
- Radiator Upper Bracket Bolt- Left Side (1) - Install and tighten [ 2x ] -

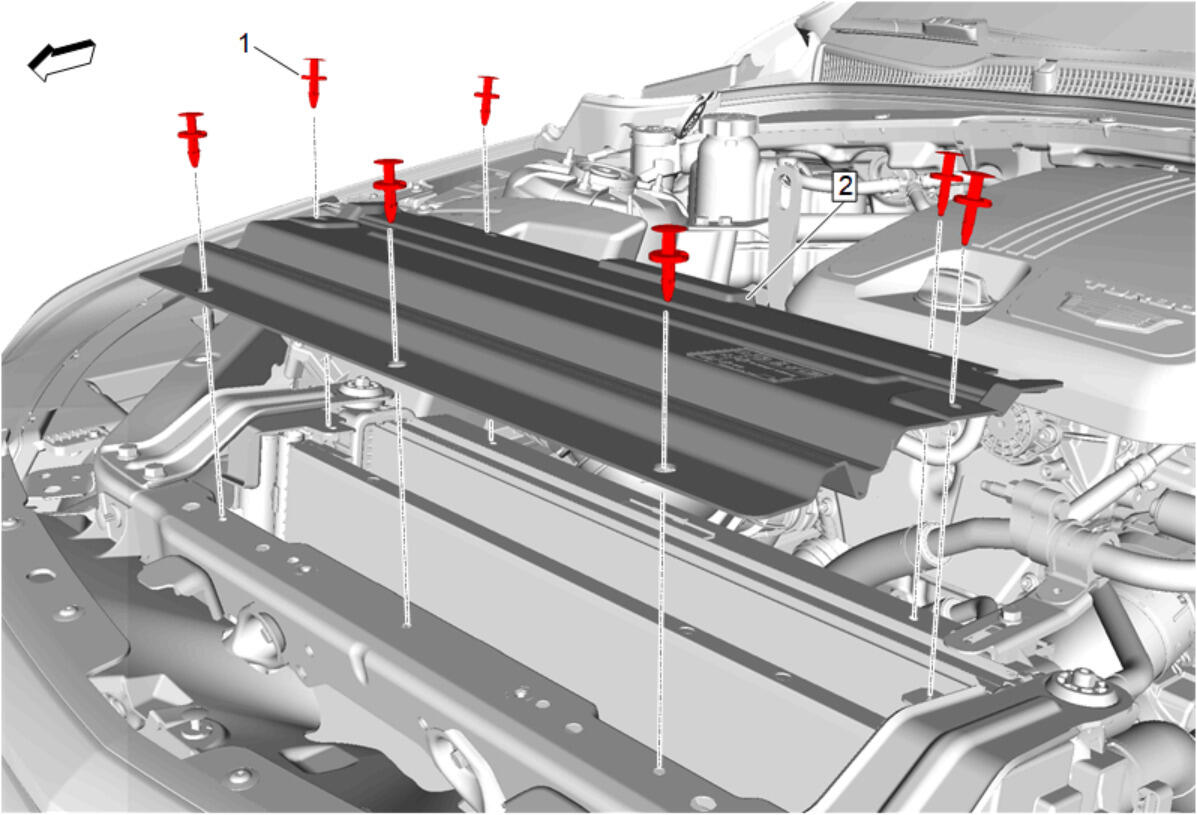

Radiator Air Upper Baffle (2) - Install
- Radiator Air Upper Baffle Retainer (1) - Install [ 7x ]
- Enable the SIR System. SIR Disabling and Enabling
CAUTION:
Refer to Fastener Caution .
