Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

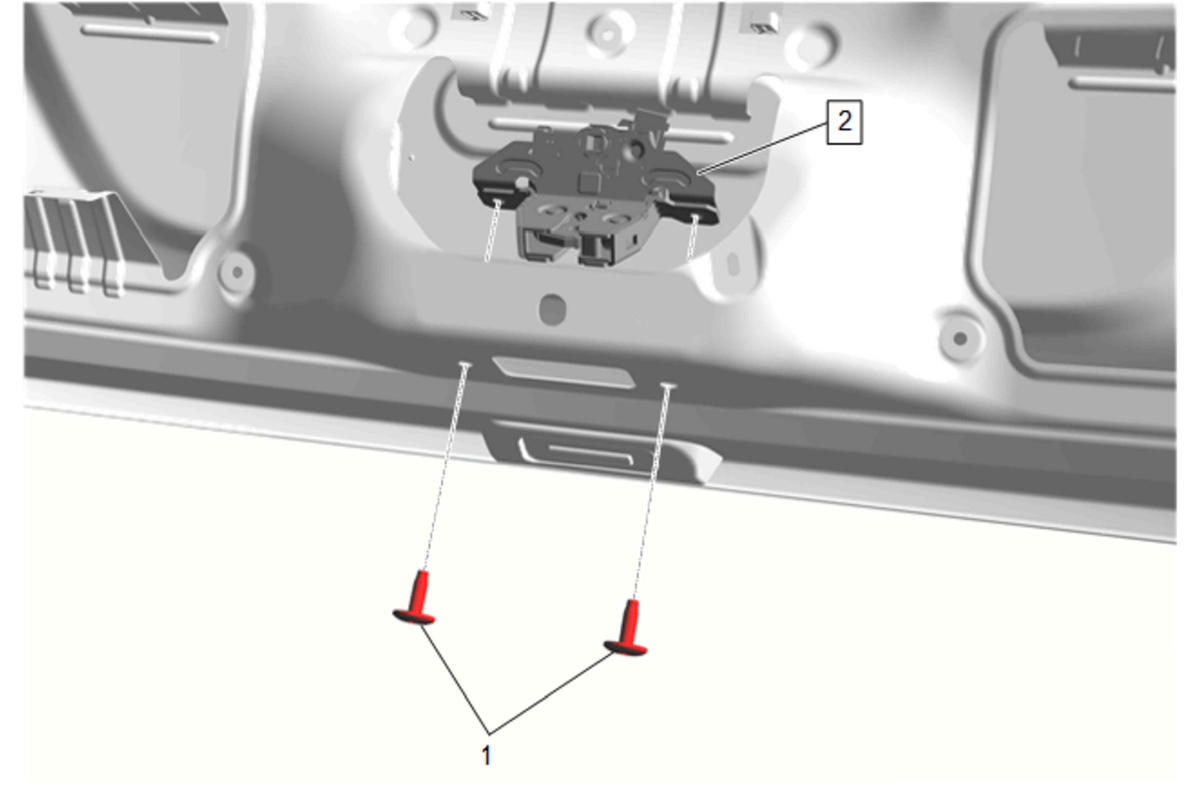

Liftgate Latch (2) - Install

CAUTION:

Refer to Fastener Caution .

Liftgate Latch Bolt (1) - Install and tighten [2x] - Fastener Specifications
If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:
1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
3. Remove loose debris from internal and external threads using compressed air.
4. Apply liquid thread locking adhesive in a strip along half of the length of the external threads, starting at the tip, just prior to installation. Adhesives, Fluids, Lubricants, and Sealers (US, Canada) , or Adhesives, Fluids, Lubricants, and Sealers (except US, Canada)
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

Liftgate Lower Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

Liftgate Upper Side Trim Finish Panel (1)-Both Sides - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

Luggage Shade Pivot (1)-Both Sides - Install NEW [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Install the liftgate upper center trim finish panel (1).
Courtesy of GENERAL MOTORS COMPANY

Install the liftgate trim finish panel pull cup (2).
Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
