Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

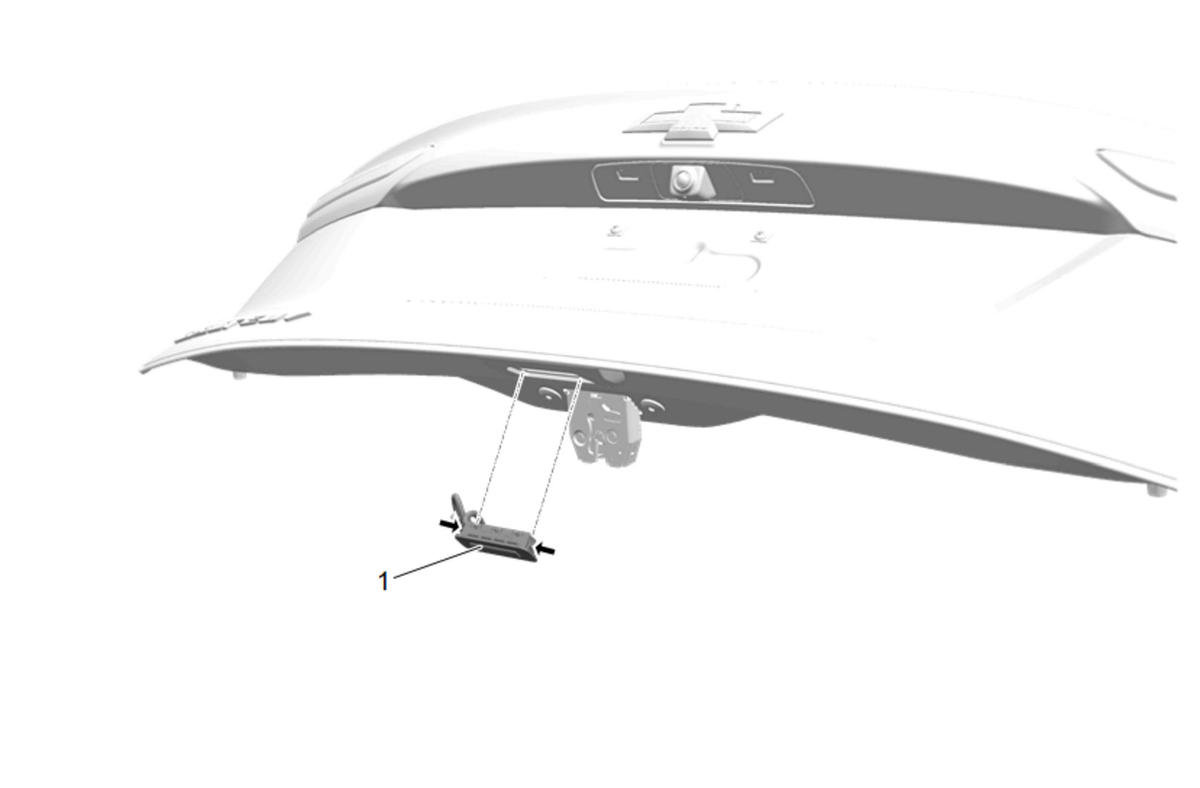

Liftgate Release Switch (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

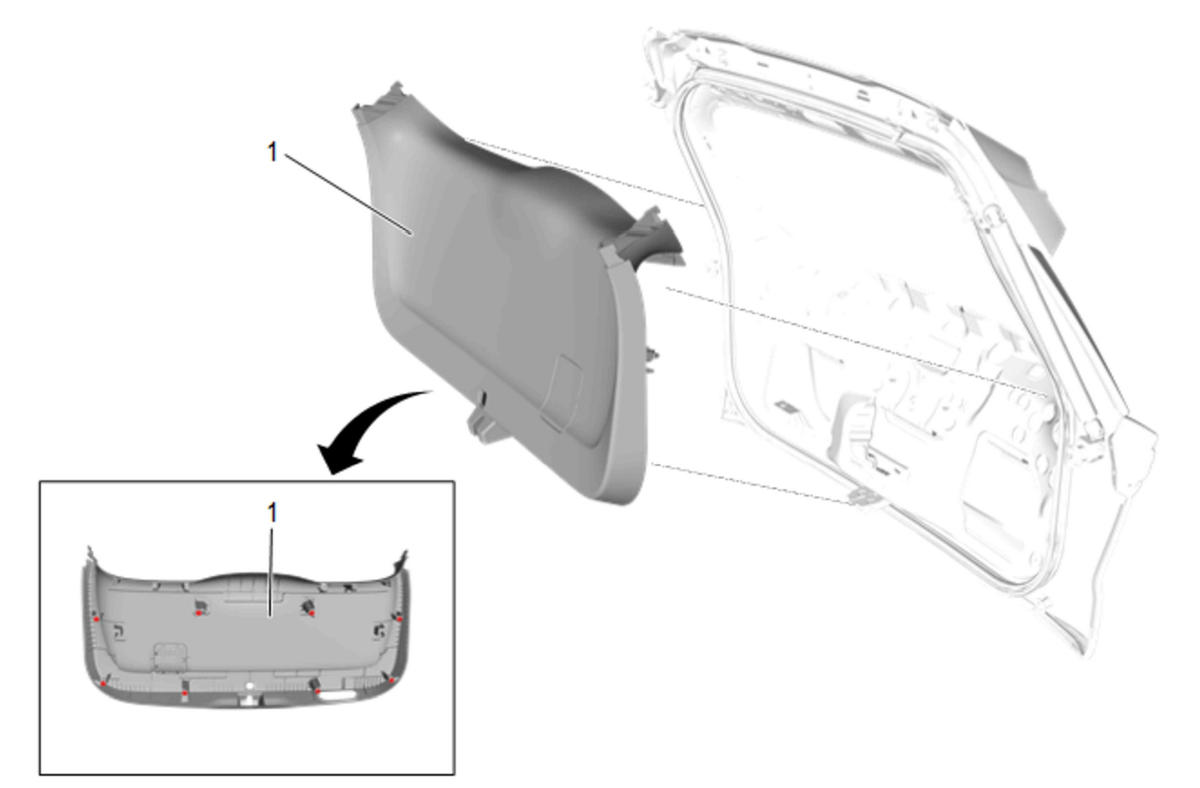

Liftgate Lower Trim Finish Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Left side shown, right side similar.

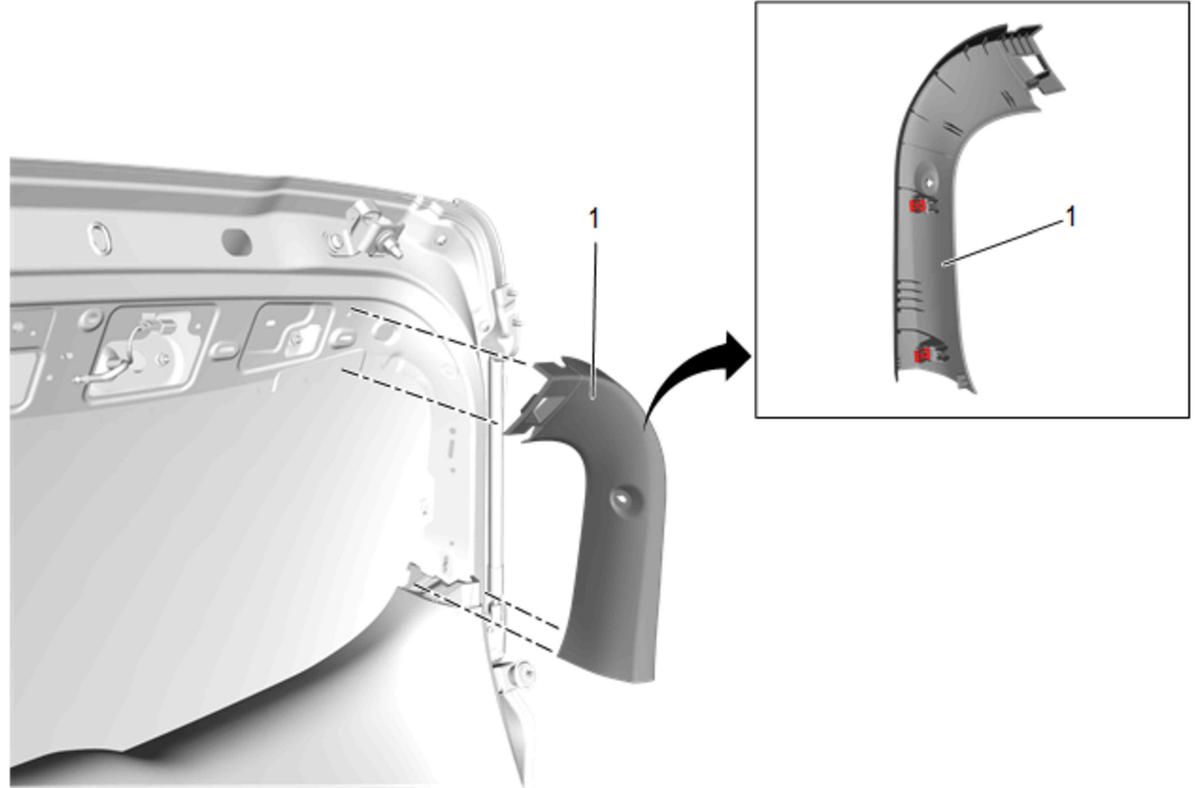

Liftgate Upper Side Trim Finish Panel (1)-Both Sides - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

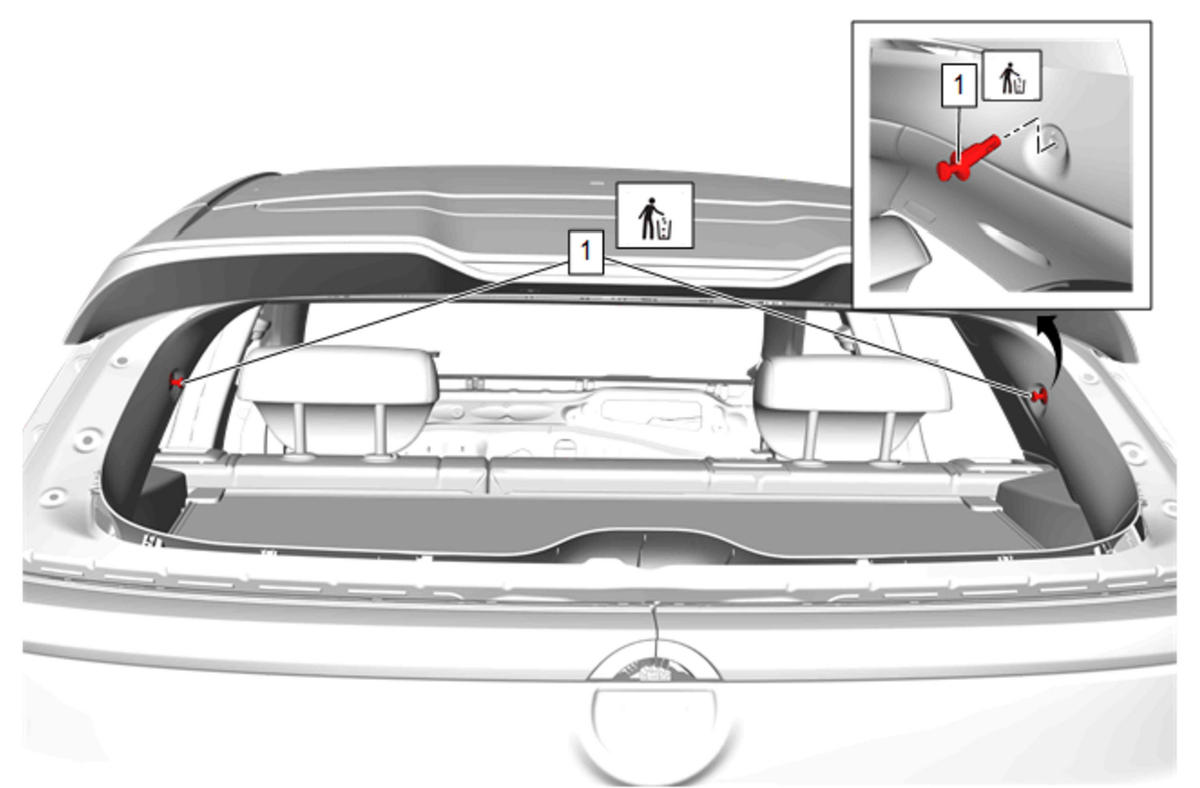

Luggage Shade Pivot (1)-Both Sides - Install NEW [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

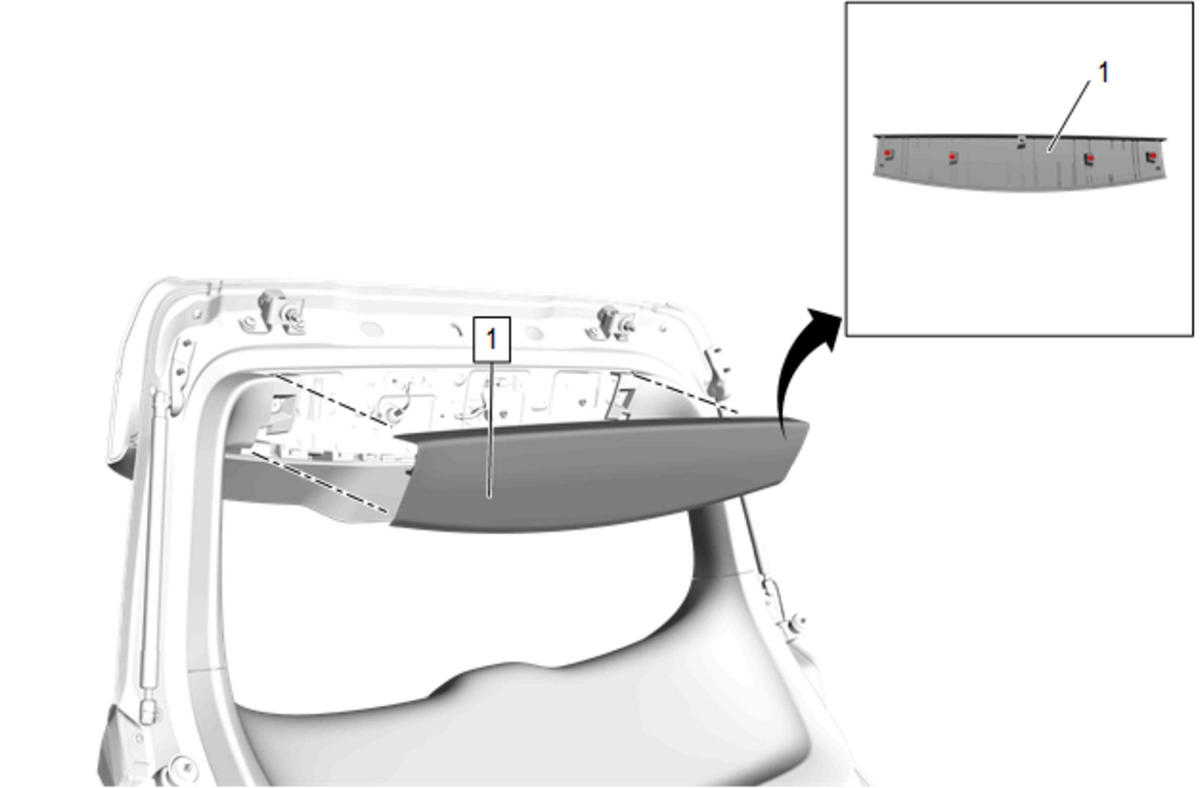

Install the liftgate upper center trim finish panel (1).
Courtesy of GENERAL MOTORS COMPANY

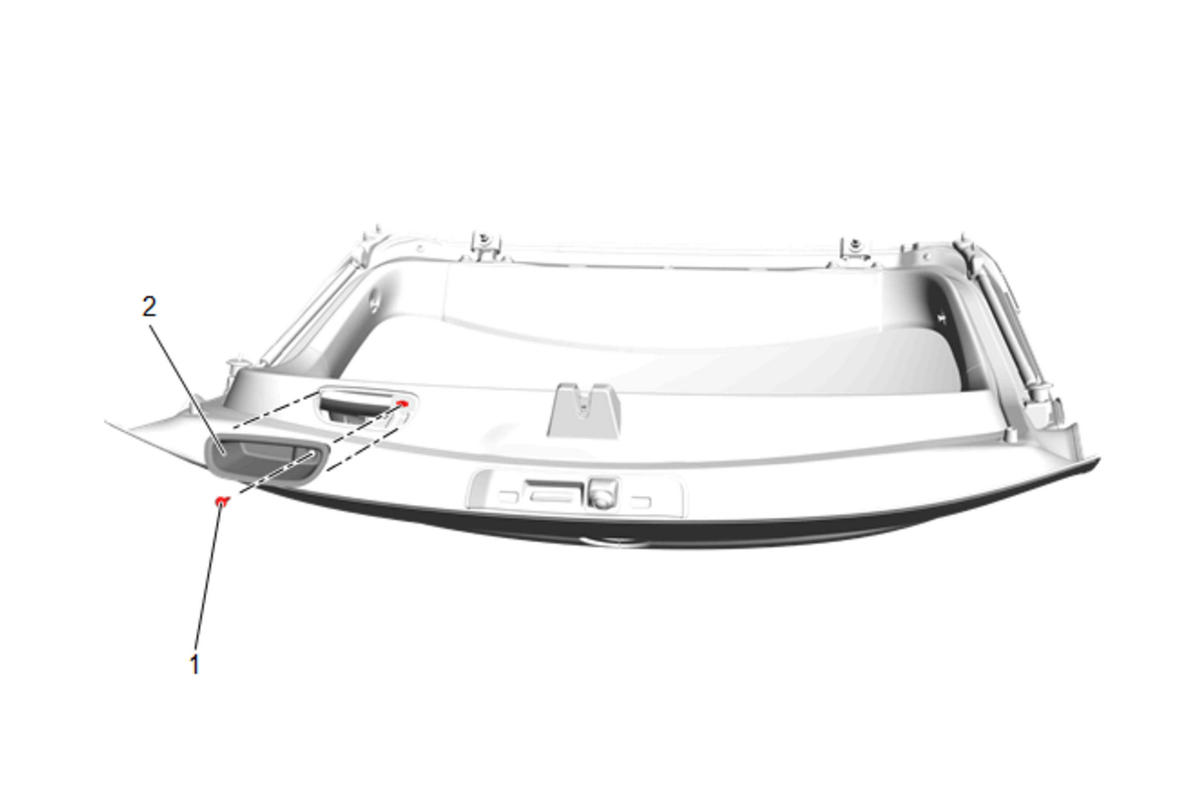

Install the liftgate trim finish panel pull cup (2).

CAUTION:

Liftgate Lower Trim Finish Panel Bolt (1) - Install and tighten - Fastener Specifications
