Fastener Specifications

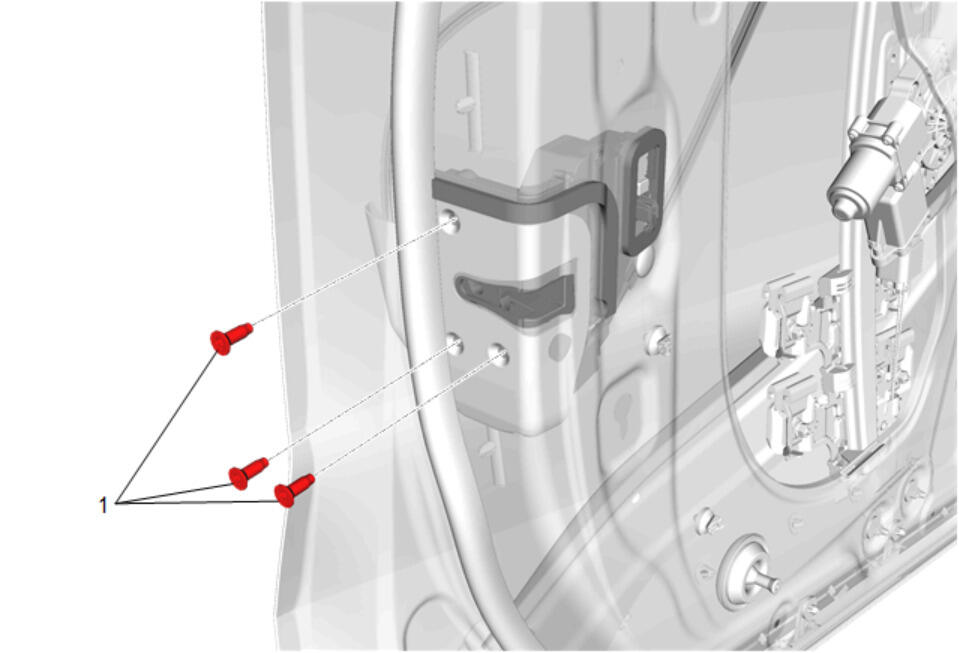

GM5220255Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Front Side Door Latch Replacement
GM5757392Courtesy of GENERAL MOTORS COMPANY
Front Side Door Lock Cylinder Opening Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Bolt - - 4.7 N.m (42 lb in) Front Side Door Lock Cylinder Opening Cover Replacement
GM5757393Courtesy of GENERAL MOTORS COMPANY
Front Side Door Lock Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Lock Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Lock Striker Replacement

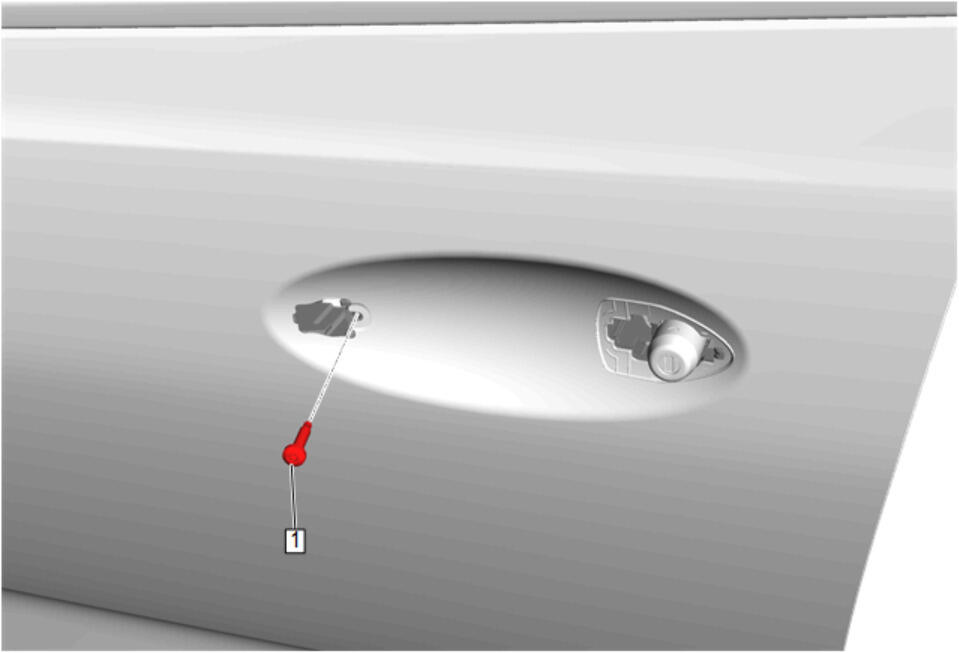

GM5220254Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Fastener - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement

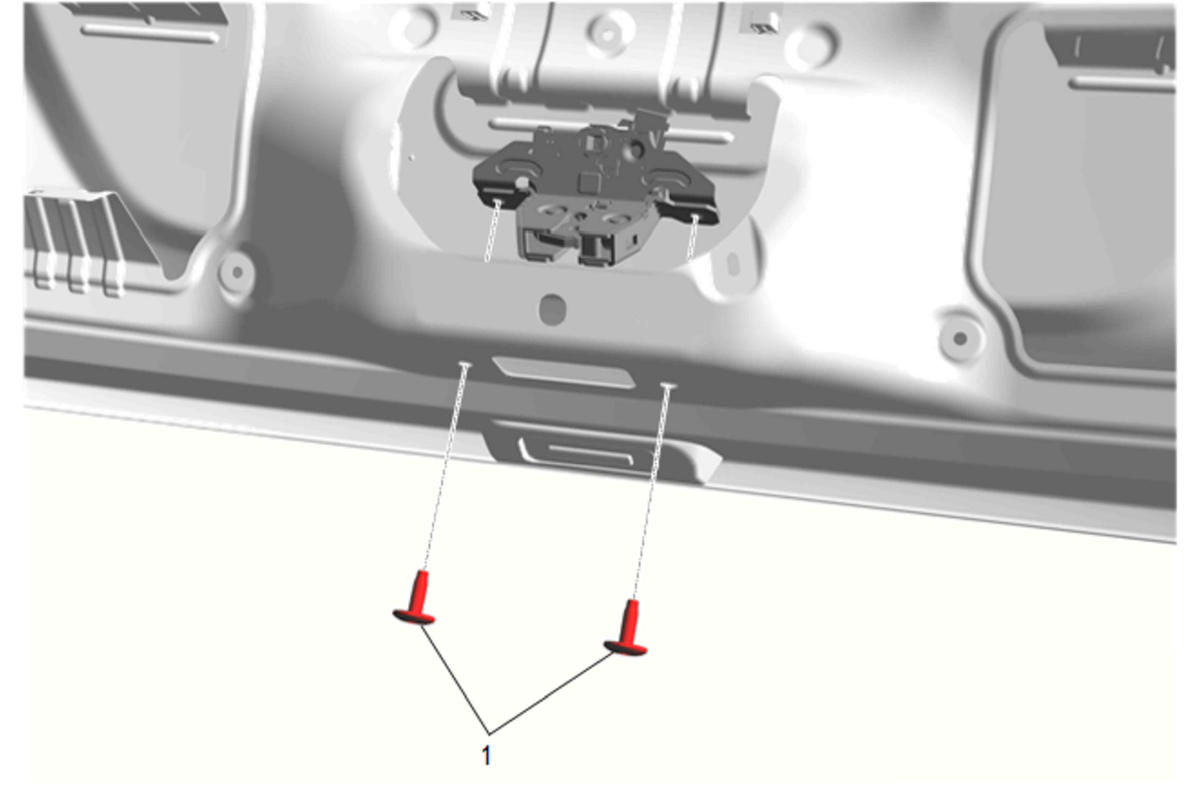

GM5757394Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [2x] - Yes 22 N.m (16 lb ft) Liftgate Latch Replacement

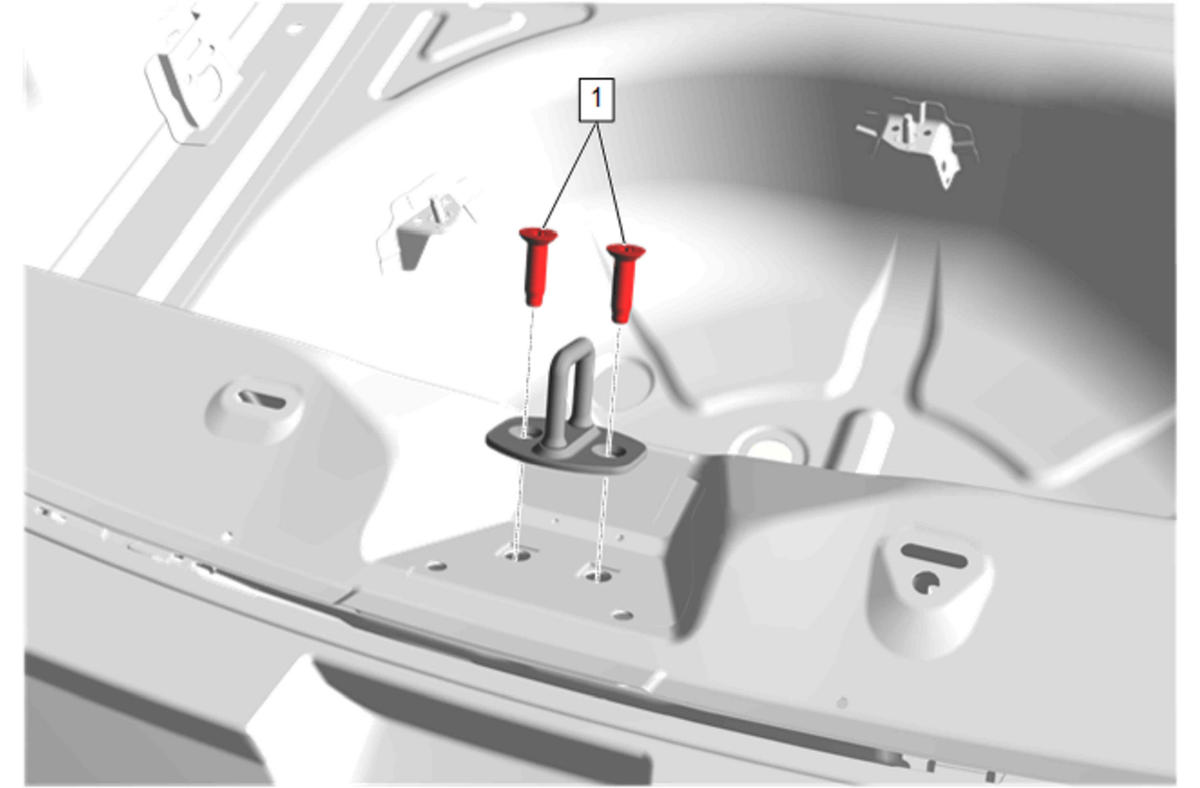

GM5757395Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement

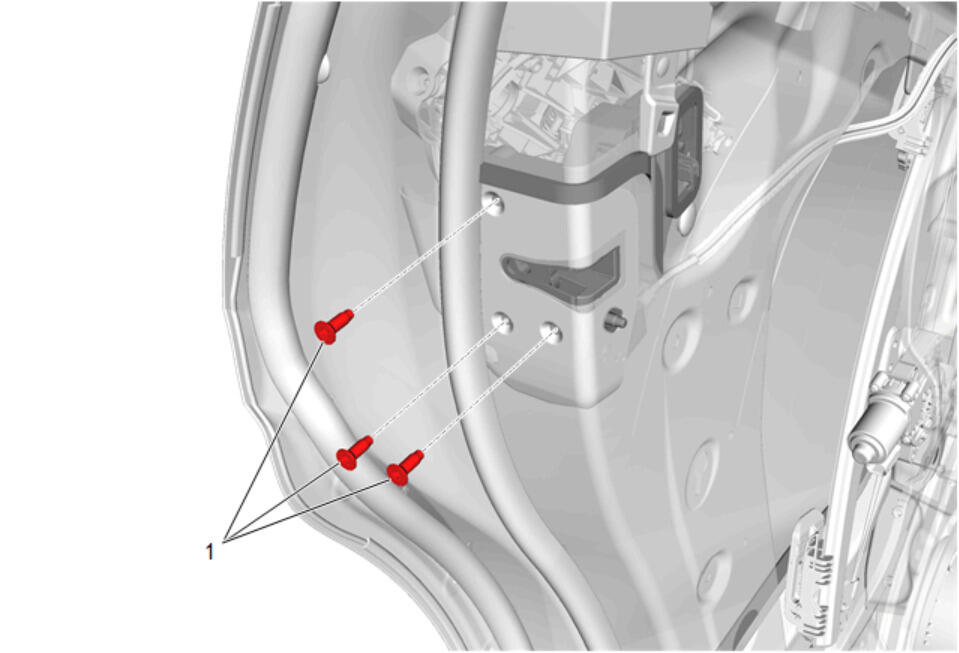

GM5220266Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [3x] - - 9 N.m (80 lb in) Rear Side Door Latch Replacement
GM5757396Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Lock Cylinder Opening Cover

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Bolt - - 4.7 N.m (42 lb in) Rear Side Door Lock Cylinder Opening Cover Replacement
GM5757397Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Lock Striker

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Lock Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Lock Striker Replacement

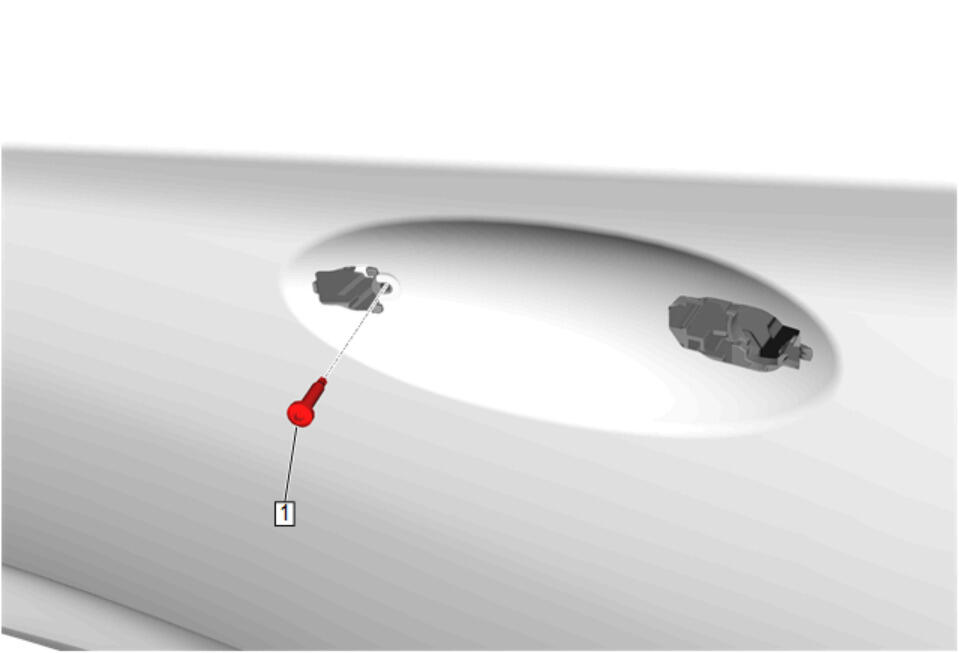

GM5220265Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Fastener - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement
