Center Console Components Top

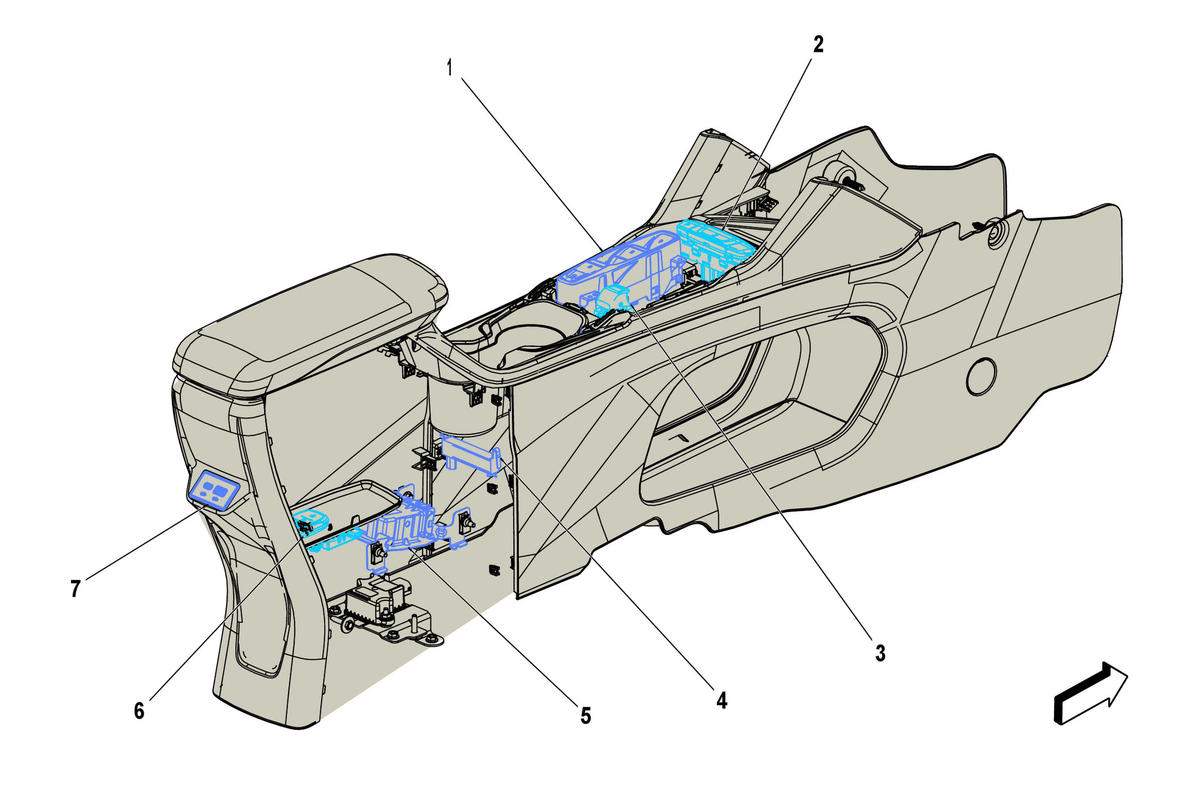

GM5810939Courtesy of GENERAL MOTORS COMPANY
Center Console Components Top

Component Name Callout
K212 Electronic Transmission Shift Control Push-button Circuit Board K212 Electronic Transmission Shift Control Push-button Circuit Board 1
S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel 2
S91 Park Brake Control Switch S91 Park Brake Control Switch 3
T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear 4
K132 Pedestrian Alert Sound Control Module K132 Pedestrian Alert Sound Control Module 5
K89 Immobilizer Control Module K89 Immobilizer Control Module 6
X92 USB Receptacle X92 USB Receptacle 7
