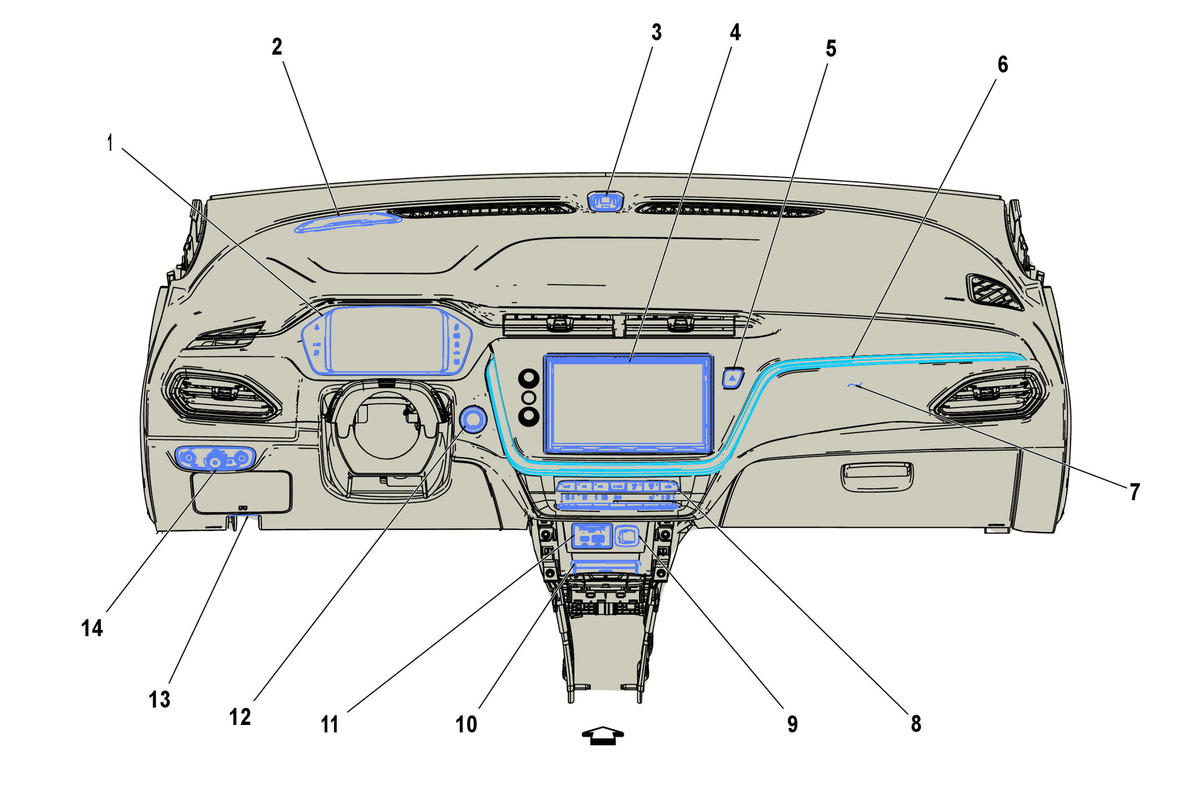

Front of Instrument Panel Components
Front of Instrument Panel Components
| Component Name | Callout |
|---|---|
| P16 Instrument Cluster P16 Instrument Cluster | 1 |
| P43 Collision Alert Indicators P43 Collision Alert Indicators (UEU/UHX/UHY) | 2 |
| B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator B305 Ambient Light/Sunload Sensor and Battery State of Charge Indicator | 3 |
| P17 Info Display Module P17 Info Display Module X1 , or P17 Info Display Module X2 ( ) | 4 |
| S26 Hazard Warning Switch S26 Hazard Warning Switch | 5 |
| E1H Accent Lamp - Right Instrument Panel E1H Accent Lamp - Right Instrument Panel | 6 |
| F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag | 7 |
| A26 HVAC Controls A26 HVAC Controls | 8 |
| X80 Accessory Power Receptacle X80 Accessory Power Receptacle | 9 |
| T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module (K4C) | 10 |
| X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 , or X83 Auxiliary Audio Input X2 | 11 |
| S83 Vehicle On/Off Switch S83 Vehicle On/Off Switch | 12 |
| X84 Data Link Connector X84 Data Link Connector | 13 |
| S30 Headlamp Switch S30 Headlamp Switch | 14 |
