Front View Driver Information Camera Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation Place the bumper fascia face down on a clean protected surface. Disconnect the electrical connector.

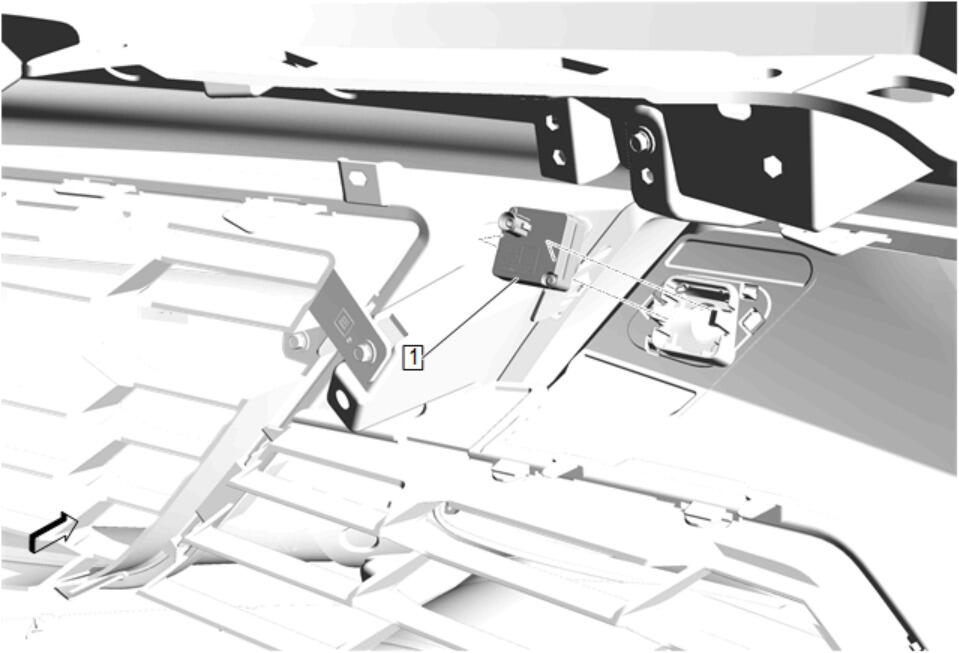

1	Front View Driver Information Camera Procedure Using the appropriate tool, release the retaining tabs and push the camera out from the front bumper fascia.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Removal and Installation
Place the bumper fascia face down on a clean protected surface.
Disconnect the electrical connector.

Front View Driver Information Camera
Procedure
Using the appropriate tool, release the retaining tabs and push the camera out from the front bumper fascia.
