Removal Procedure

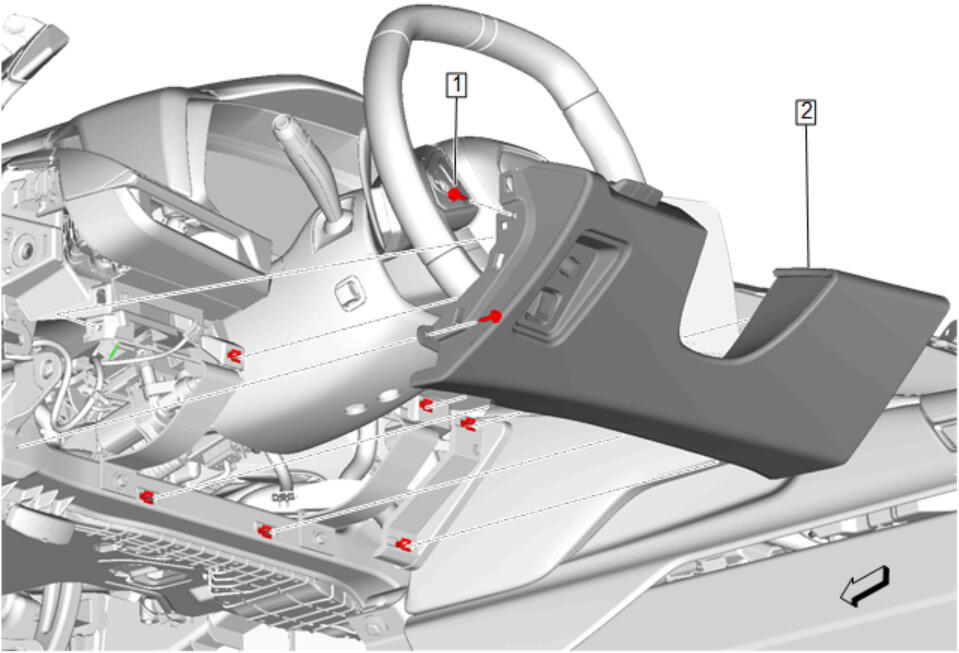

  1. GM5281863Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Remove - Instrument Panel Knee Bolster Replacement

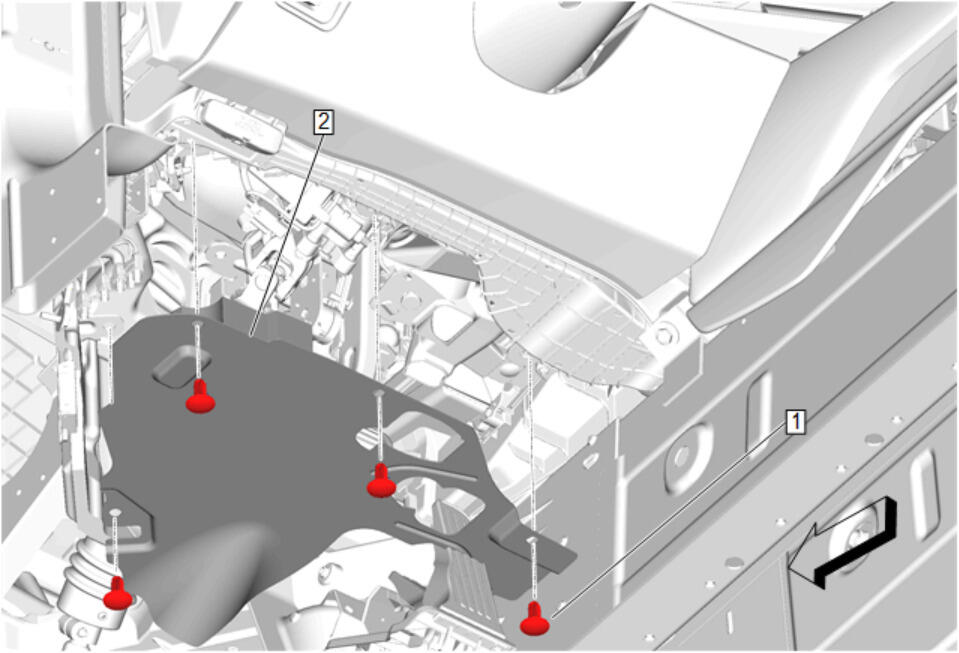

  2. GM5384818Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator- Left Side (2) - Remove - Instrument Panel Lower Trim Panel Insulator Replacement - Left Side

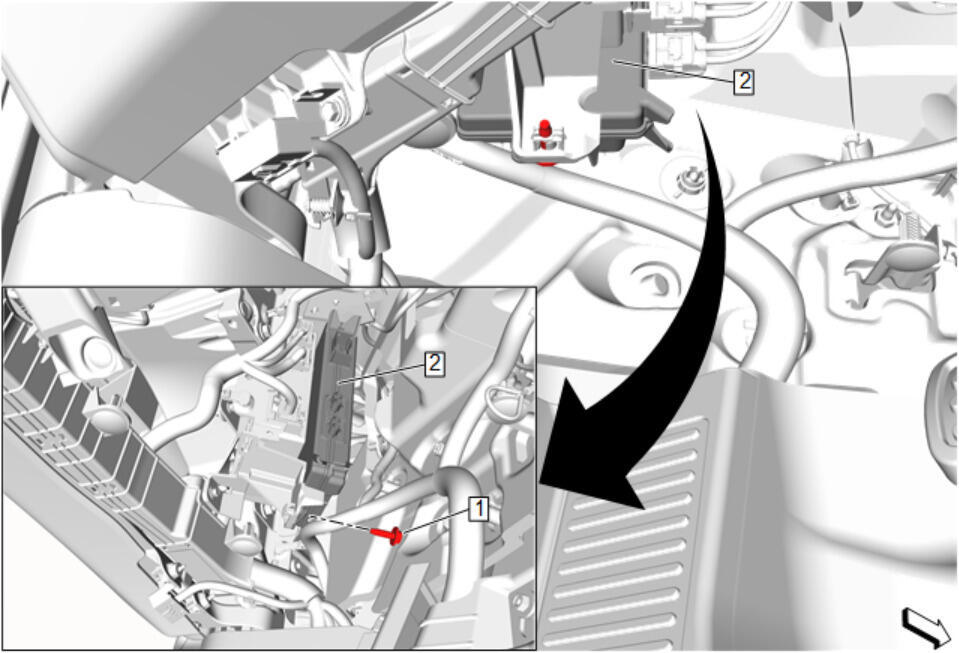

  3. GM5389833Courtesy of GENERAL MOTORS COMPANY

    Video Processing Module Bracket Bolt (1) - Remove

  4. Disconnect the electrical connectors.

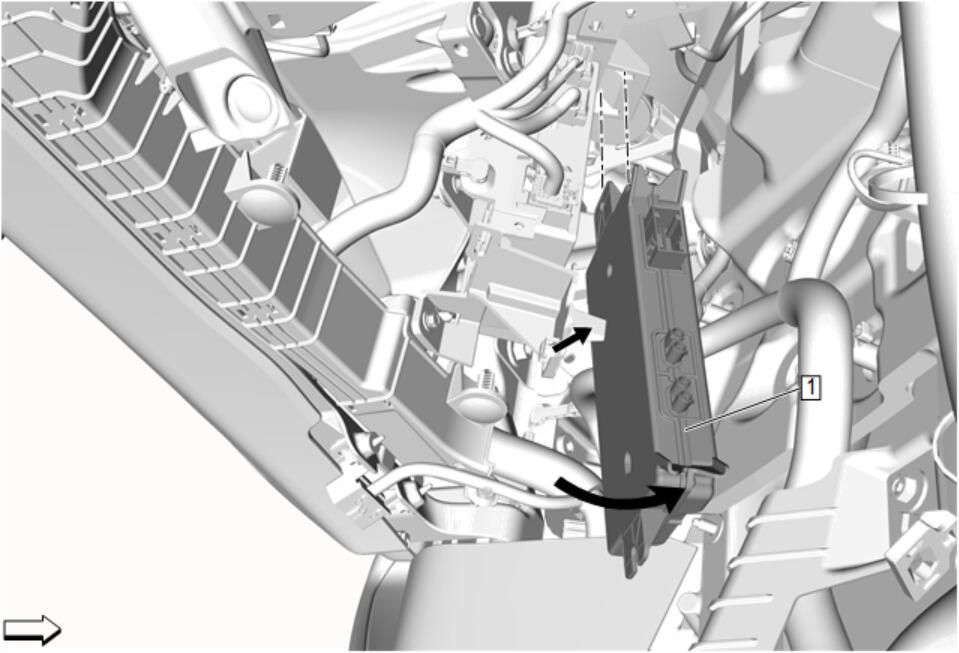

  5. GM5389836Courtesy of GENERAL MOTORS COMPANY

    Tilt the bottom of the video processing module (1) forward to release from the bracket.

  6. Video Processing Module (1) - Remove
