Shift Lock Control Wiring Schematics (M5X/MHT/MQB/MQE)
>>
Shift Lock Control (M5X/MHT/MQB/MQE)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

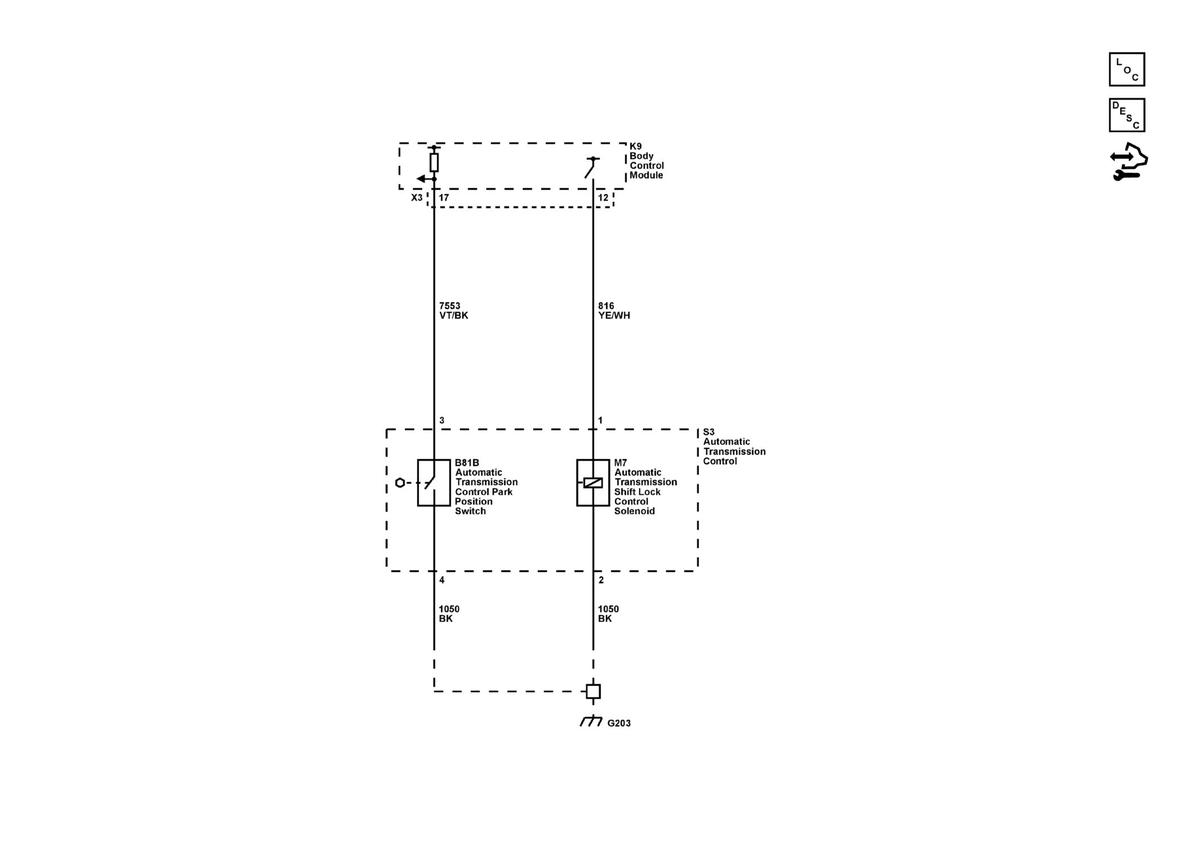

Shift Lock Control (M5X/MHT/MQB/MQE)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
