Wireless Charging System Module Replacement

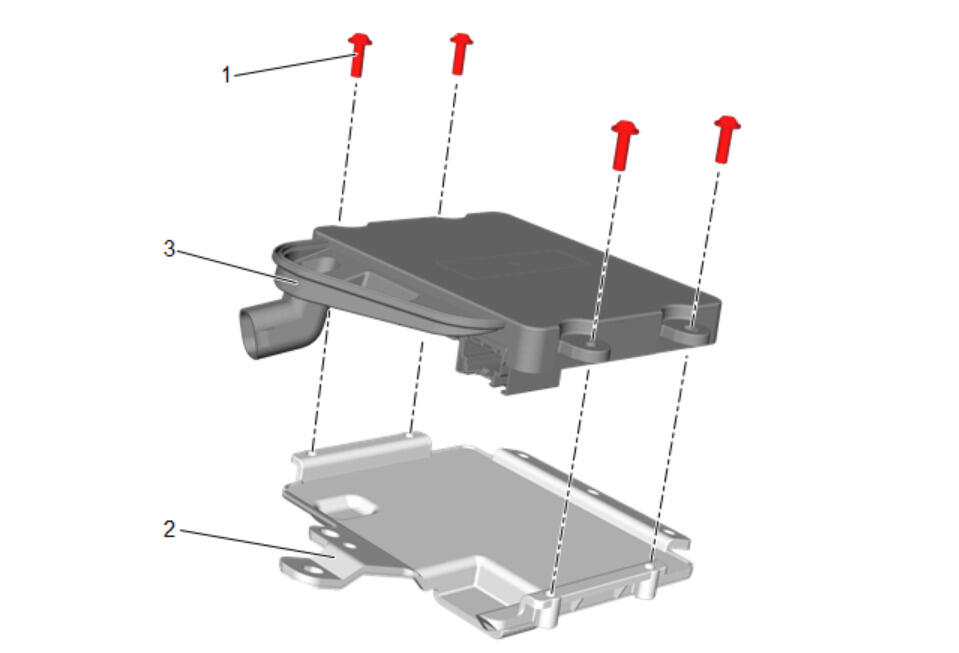

GM5361427Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Wireless Charging System Module Bracket Replacement
1 Wireless Charging System Module Bolt [4x]
CAUTION:

Fastener Caution


Tighten
0.8 N.m (7 lb in)
2 Wireless Charging System Module Bracket
3 Wireless Charging System Module
