Front Intake Air Duct Hole Plug Replacement

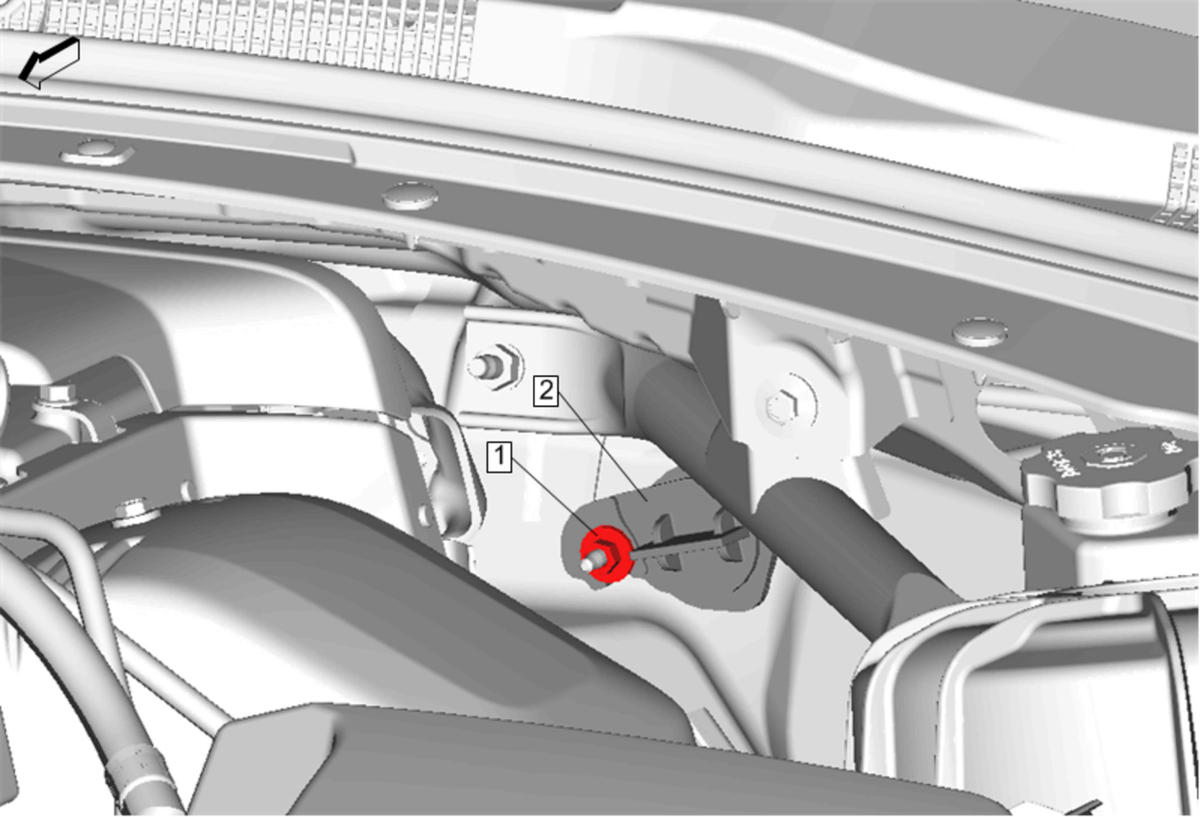

GM4376013Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name
1 Front Intake Air Duct Hole Plug Nut
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Front Intake Air Duct Hole Plug
