Intake Air Pressure and Temperature Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

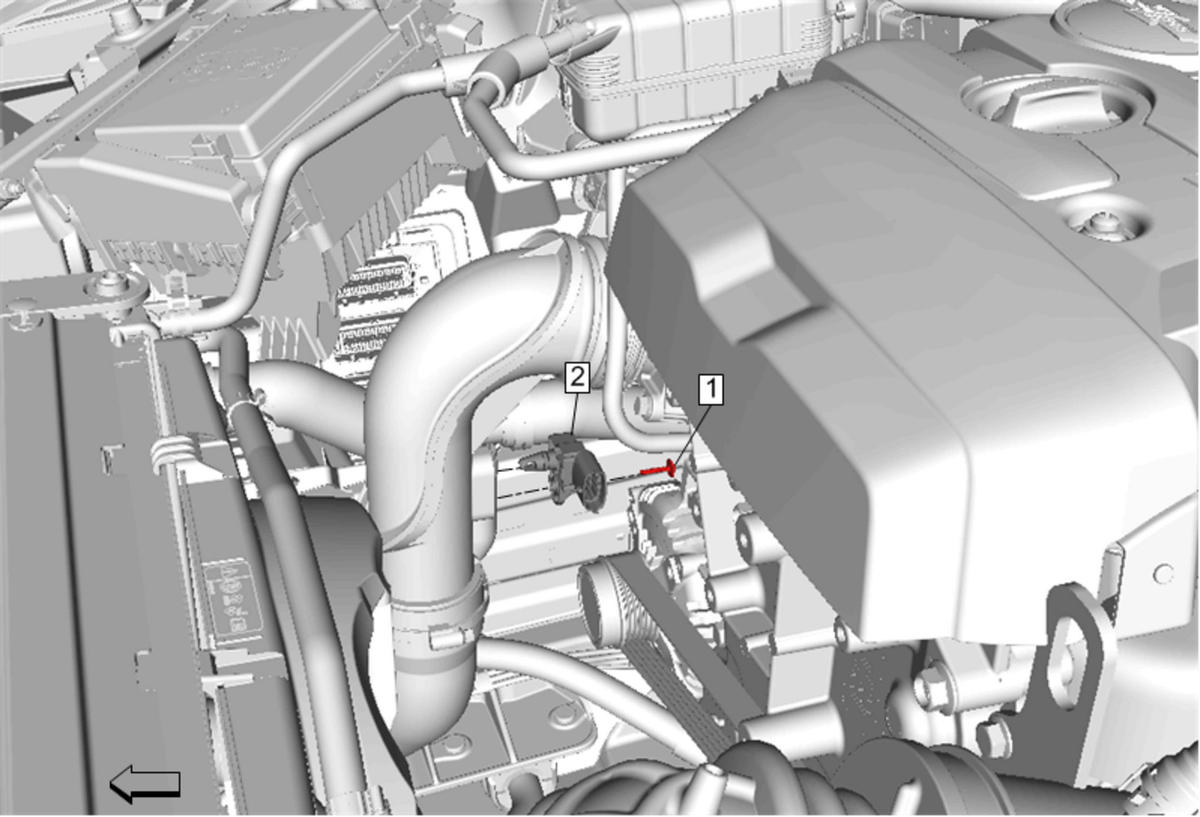

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Disconnect the electrical connector.
1	Intake Air Pressure and Temperature Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Intake Air Pressure and Temperature Sensor
