Fastener Specifications

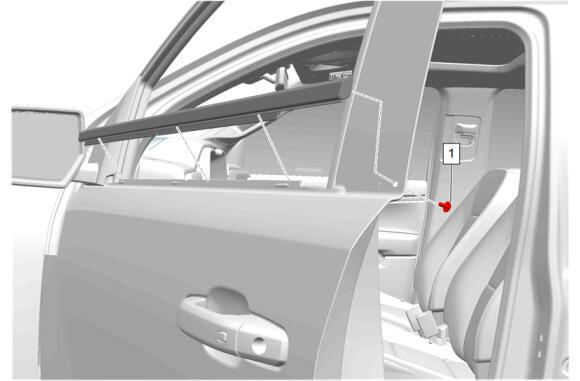

GM6202352Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Front Side Door Window Belt Reveal Molding Replacement

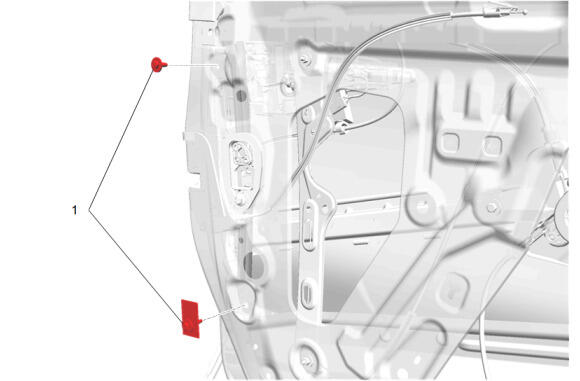

GM6202948Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2x] - Yes 11 N.m (97 lb in) Front Side Door Window Channel Retainer Replacement

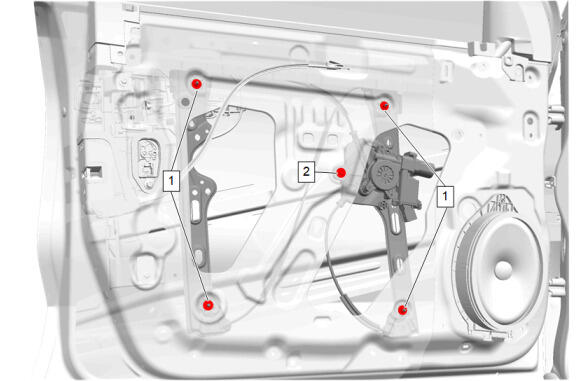

GM6201455Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [4x] - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement
2 Front Side Door Window Regulator Bolt - - 11 N.m (97 lb in) Front Side Door Window Regulator Replacement

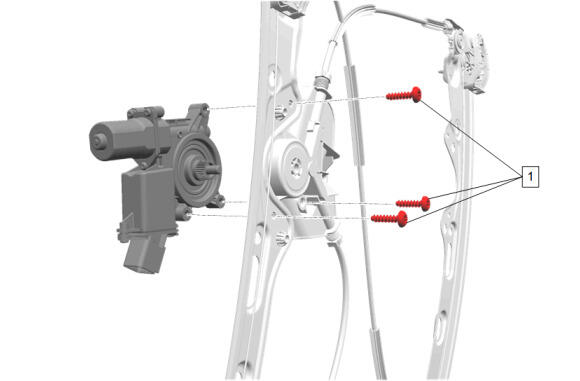

GM6202345Courtesy of GENERAL MOTORS COMPANY
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3x] - - 4.5 N.m (40 lb in) Front Side Door Window Regulator Motor Replacement

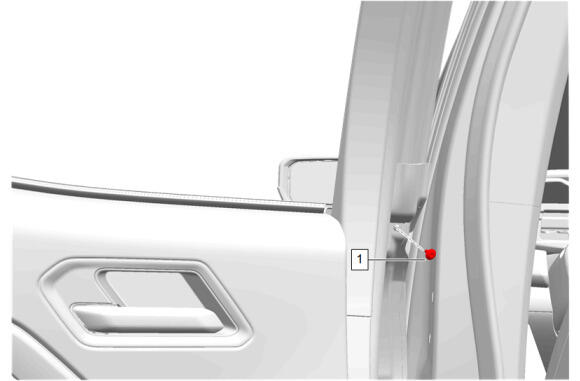

GM6202814Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding Bolt - - 1.5 N.m (13 lb in) Rear Side Door Window Belt Reveal Molding Replacement

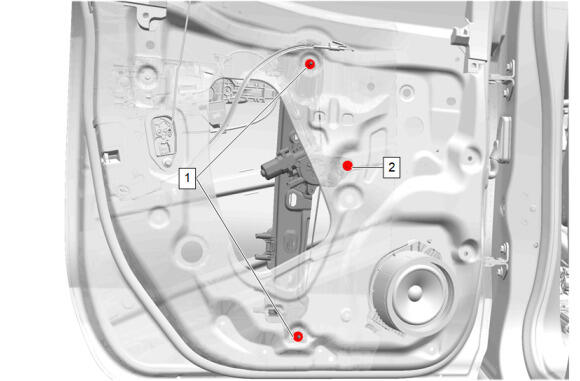

GM6201542Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [2x] - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement
2 Rear Side Door Window Regulator Bolt - - 11 N.m (97 lb in) Rear Side Door Window Regulator Replacement

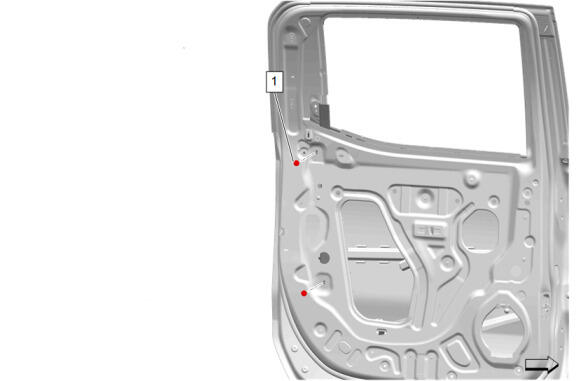

GM6003501Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Window Weatherstrip

Callout Component Name[Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Weatherstrip Bolt - Yes 11 N.m (97 lb in) Rear Side Door Window Replacement
