Fastener Specifications

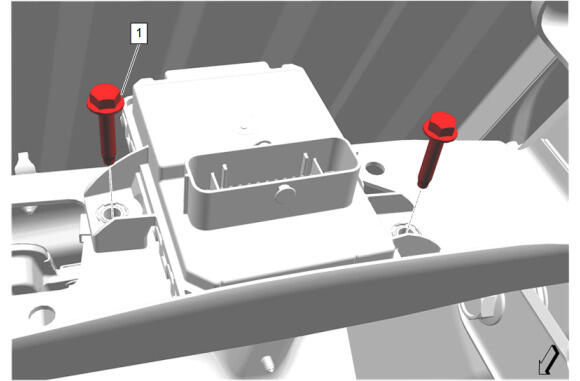

Trailer Brake Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Brake Power Control Module Bolt [2x] | - | - | 9 N.m (80 lb in) | Trailer Brake Control Module Replacement |

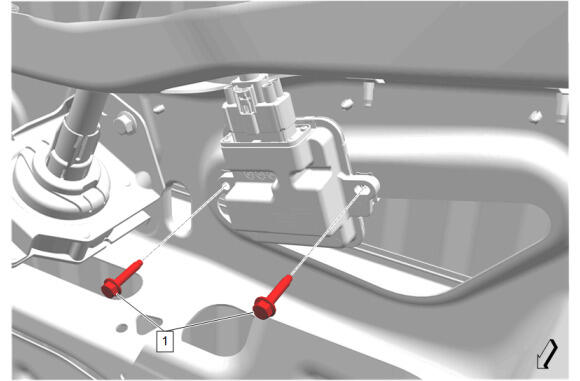

Trailer Lamp Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Lamp Control Module Bolt [2x] | - | - | 9 N.m (80 lb in) | Trailer Lamp Control Module Replacement |

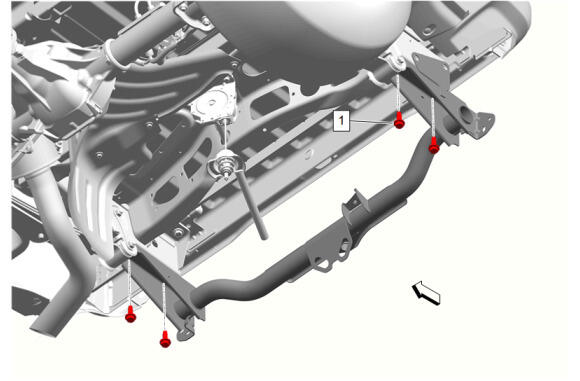

Trailer Hitch Platform
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Trailer Hitch Platform Bolt [4x] | - | Yes | 160 N.m (118 lb ft) | Trailer Hitch Platform Replacement |
