Installation Procedure

  1. Fill the transfer case to the bottom of the fill plug hole with the recommended fluid. Adhesives, Fluids, Lubricants, and Sealers , and Approximate Fluid Capacities .

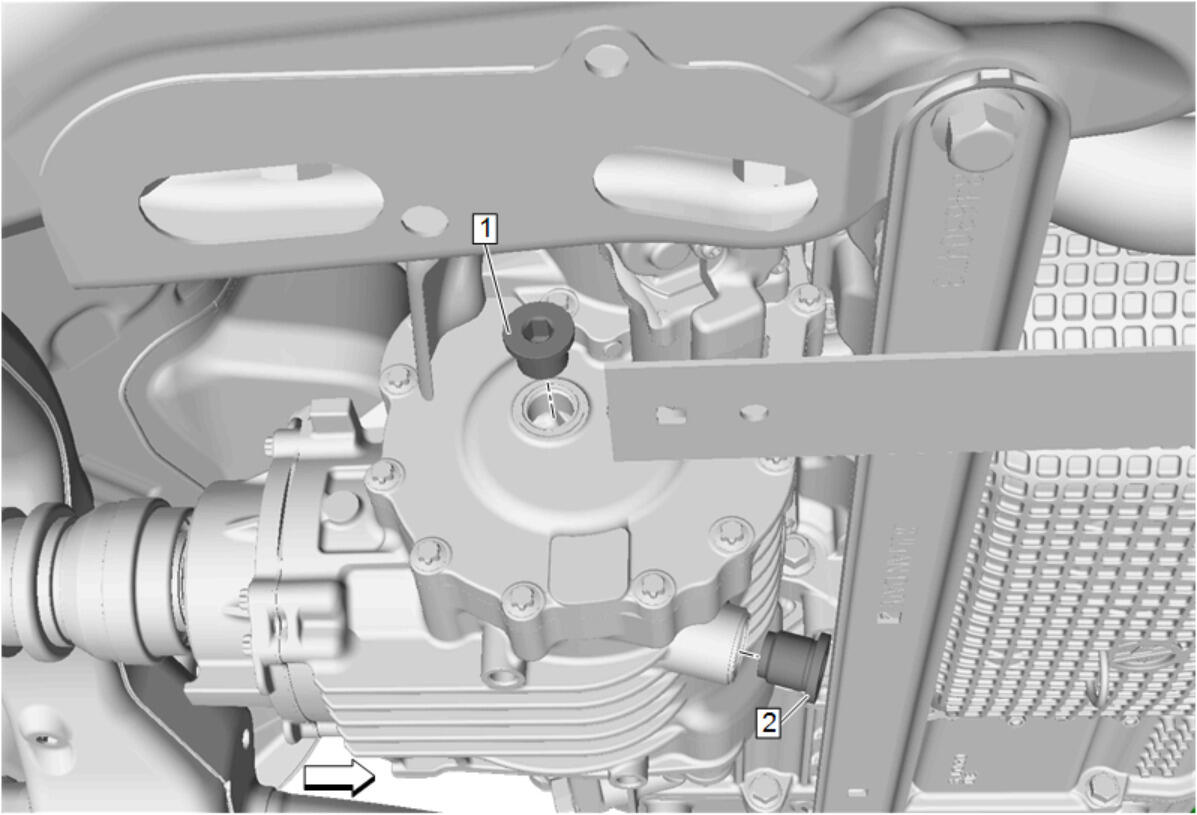

  2. GM5208594Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Install fill plug (1) and seal and tighten to 39 N.m (29 lb ft).

  3. Lower the vehicle.
