Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Wireless Charging System Module (2) - Install

CAUTION:

Wireless Charging System Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connectors.

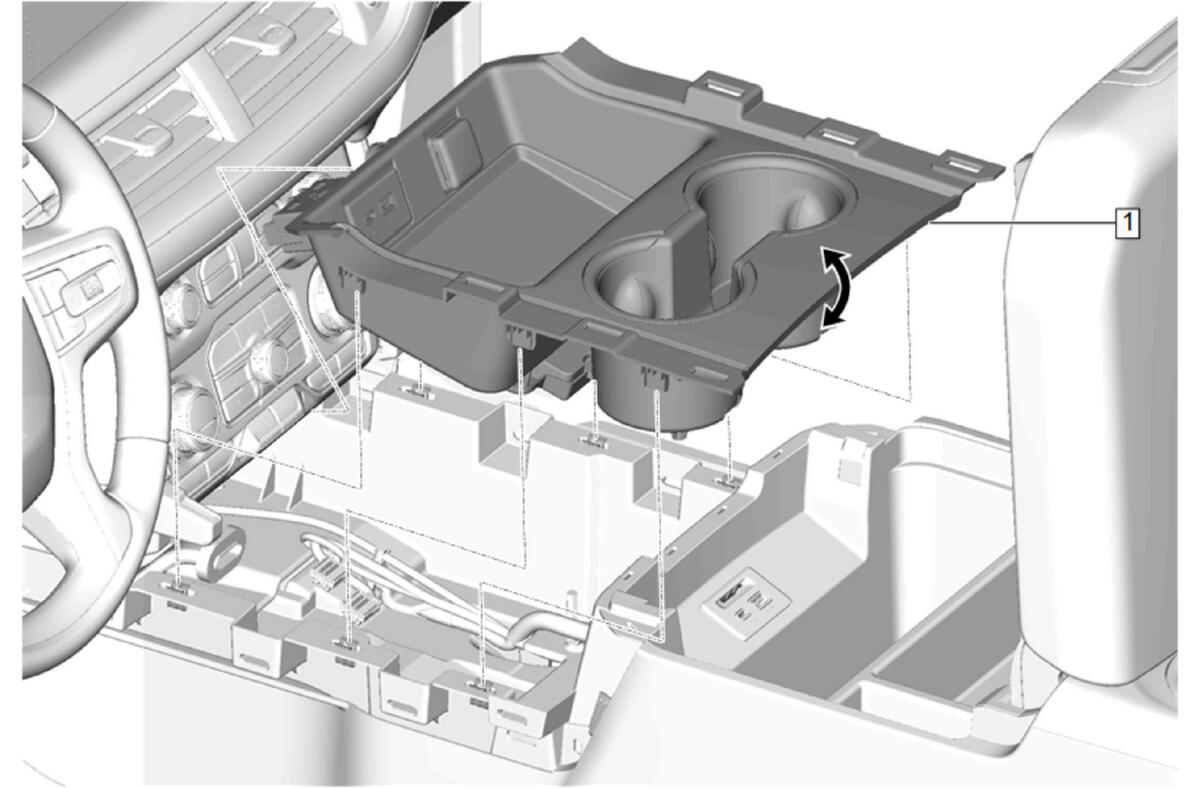

Front Floor Console Cup Holder Trim Plate (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Rear Console Side Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

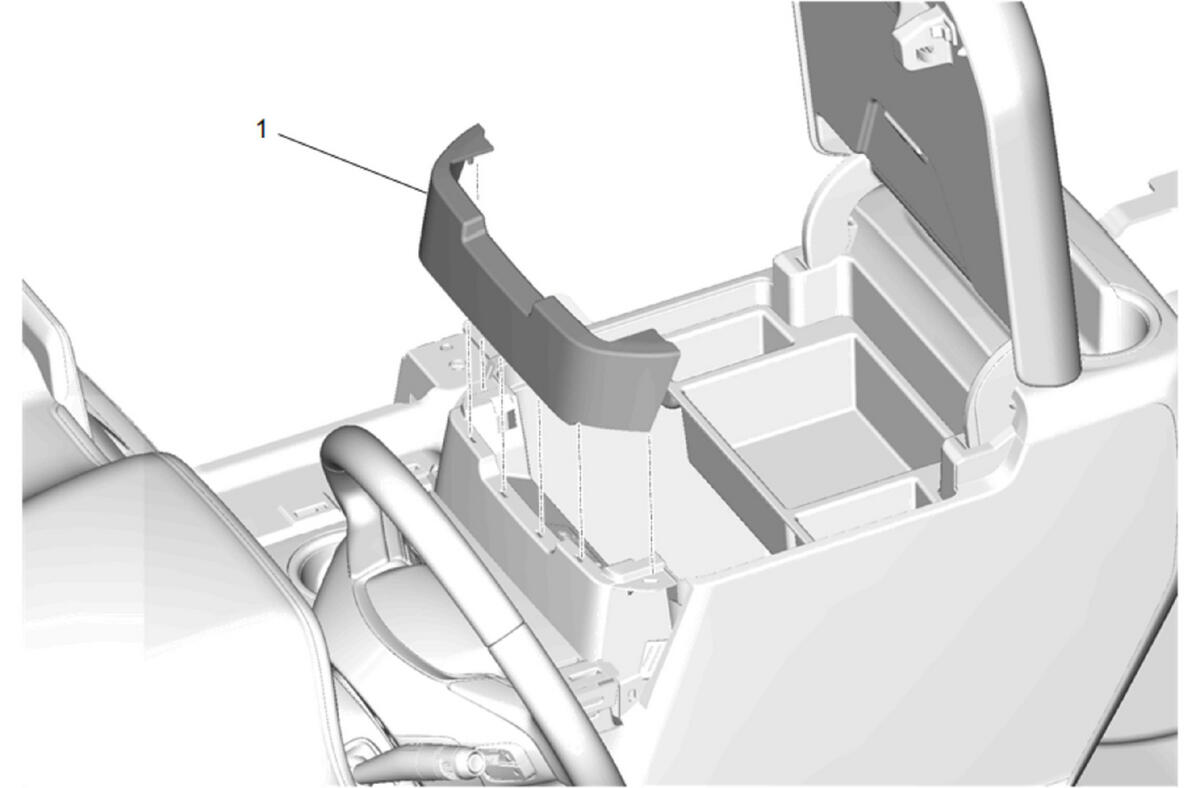

Front Floor Console Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Lower Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Lower Applique (1) - Install
