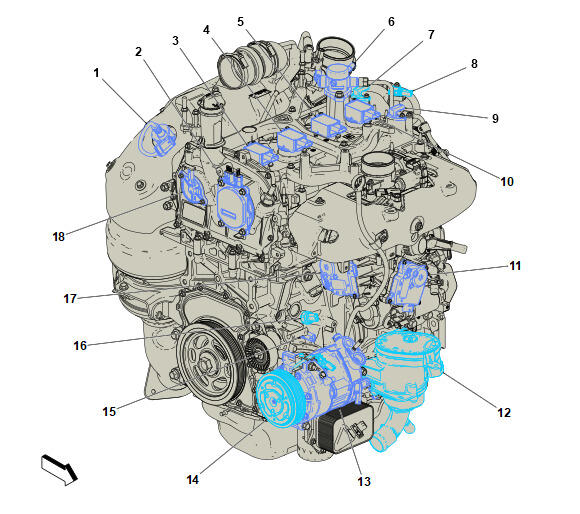

| 1 |
B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 2 |
M163 Intake / Single Camshaft Position Actuator M163 Intake / Single Camshaft Position Actuator X1
, or M163 Intake / Single Camshaft Position Actuator X2 |
| 3 |
T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 4 |
T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 5 |
T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 6 |
G18 Fuel Pump - High Pressure G18 Fuel Pump - High Pressure |
| 7 |
B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 8 |
B321 Crankcase Pressure Sensor B321 Crankcase Pressure Sensor |
| 9 |
B23F Camshaft Position Sensor - Intake B23F Camshaft Position Sensor - Intake |
| 10 |
T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 11 |
Q97M Engine Coolant Flow Control Valve - Main Q97M Engine Coolant Flow Control Valve - Main |
| 12 |
G59 Engine Coolant Pump G59 Engine Coolant Pump |
| 13 |
Q46 Air Conditioning Compressor Solenoid Valve Q46 Air Conditioning Compressor Solenoid Valve |
| 14 |
Q2 Air Conditioning Clutch Q2 Air Conditioning Clutch |
| 15 |
B36 Engine Oil Temperature Sensor B36 Engine Oil Temperature Sensor |
| 16 |
B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor |
| 17 |
Q97B Engine Coolant Flow Control Valve - Block Q97B Engine Coolant Flow Control Valve - Block |
| 18 |
Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
