Installation Procedure

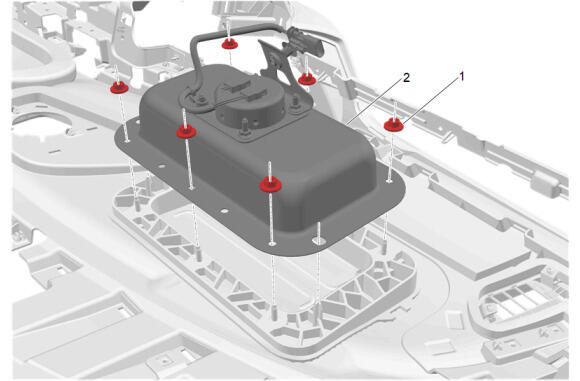

  1. GM5975102Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Never install the passenger airbag module into the instrument panel assembly that airbag module chute is cut. This may cause incorrect deployment when the passenger airbag is deployed.

    Instrument Panel Airbag (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Airbag Nut (1) - Install and tighten [6x] - Fastener Specifications
  3. Instrument Panel Assembly - Install - Instrument Panel Removal and Installation
  4. Enable the SIR System. SIR Disabling and Enabling
