Fastener Specifications

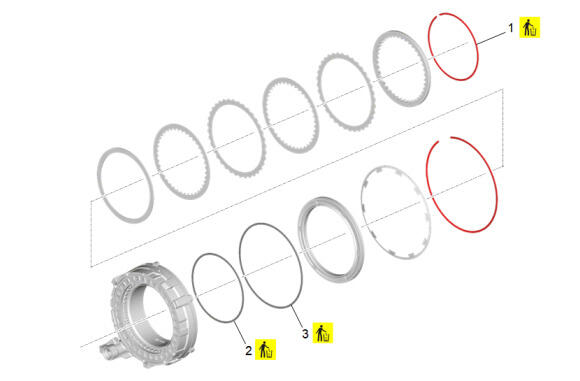

GM6419113Courtesy of GENERAL MOTORS COMPANY
1-Reverse and 1-2-3-4-5-6 Clutch Piston Housing Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 1-2-3-4-5-6 Clutch Piston Seal Yes - - 1-Reverse and 1-2-3-4-5-6 Clutch Piston Housing Assemble
2 1-2-3-4-5-6 Clutch Piston Inner Seal Yes - -

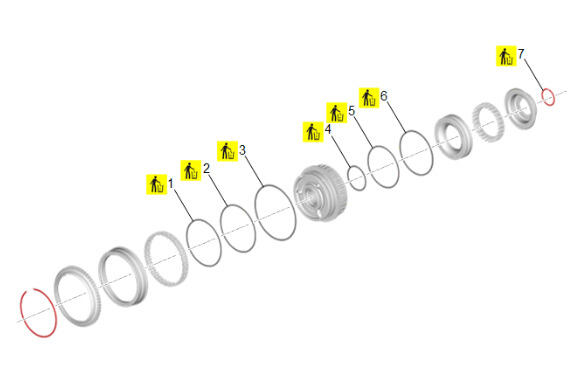

GM6419115Courtesy of GENERAL MOTORS COMPANY
5-7-Reverse and 6-7-8-9 Clutch Housing

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 5-7-Reverse Clutch Piston Inner Seal-Reluctor Wheel Yes - - 5-7-Reverse and 6-7-8-9 Clutch Housing Assemble
2 5-7-Reverse Clutch Piston Inner Seal Yes - -
3 5-7-Reverse Clutch Piston Dam Seal Yes - -
4 6-7-8-9 Clutch Piston Inner Seal Yes - -
5 6-7-8-9 Clutch Piston Outer Seal Yes - -
6 6-7-8-9 Clutch Dam Seal Yes - -
7 6-7-8-9 Clutch Dam Retaining Ring Yes - -

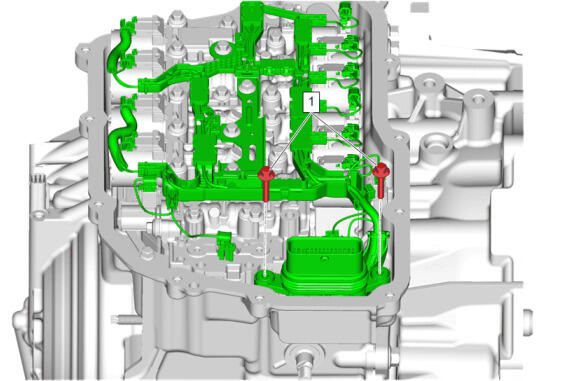

GM6596457Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Wiring Harness

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Wiring Harness Bolt [2x] - - 8 N.m (71 lb in) Control Valve Body Assembly Installation

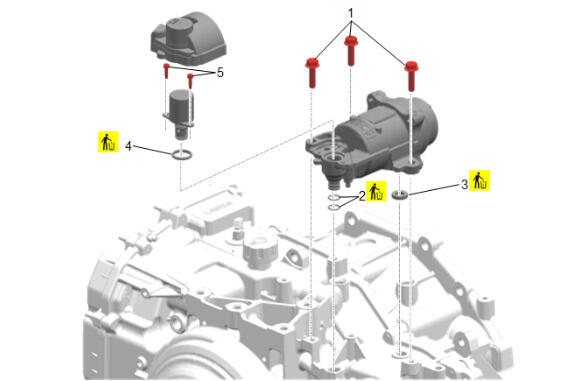

GM6419121Courtesy of GENERAL MOTORS COMPANY
Auxiliary Fluid Accumulator

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Auxiliary Fluid Accumulator Bolt [3x] - - 22 N.m (16 lb ft) Auxiliary Fluid Accumulator Installation
2 Automatic Transmission Case Seal [2x] Yes - -
3 Accumulator Bypass Valve Seal Yes - -
4 Accumulator Bypass Valve Seal- Solenoid Yes - -
5 Accumulator Valve Body Bolt [2x] - - 2.7 N.m (24 lb in)
GM6419122Courtesy of GENERAL MOTORS COMPANY

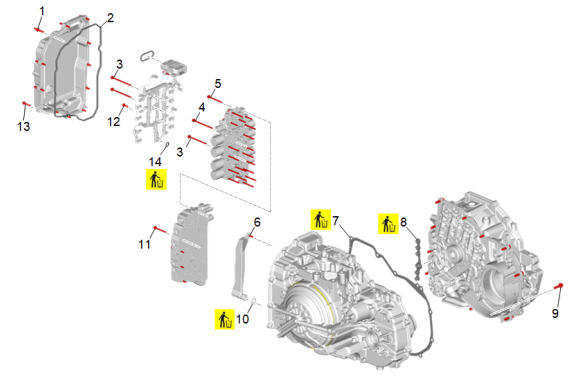

Case and Associated Parts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Body Cover Stud [6x] - - Cover Bolt Torque Sequence  Control Valve Body Cover Installation
2 Control Valve Body Cover Gasket - - -
3 Control Valve Body Bolt [8x] - - Control Valve Body Bolt Torque Sequence  Control Valve Body Assembly Installation
4 Control Valve Body Bolt [12x] - - Control Valve Body Bolt Torque Sequence  Control Valve Body Assembly Installation
5 Control Valve Body Bolt [3x] - - Control Valve Body Bolt Torque Sequence
6 Fluid Transfer Pipe Bolt - - 9 N.m (80 lb in) Control Valve Body Assembly Installation
7 Torque Converter Housing Gasket Yes - - Torque Converter Housing with Fluid Pump Assembly Installation
8 Automatic Transmission Fluid Pump Seal Yes - -
9 Torque Converter and Differential Housing Bolt [14x] - - Torque Converter and Differential Housing Bolt Torque Sequence
10 Fluid Transfer Pipe Seal Yes - - Control Valve Body Assembly Installation
11 Control Valve Body Bolt [5x] - - Control Valve Body Bolt Torque Sequence
12 Control Valve Solenoid Body Bolt - - 9 N.m (80 lb in)
13 Control Valve Body Cover Bolt [6x] - - Cover Bolt Torque Sequence  Control Valve Body Cover Installation
14 Automatic Transmission Fluid Temperature Sensor Seal Yes - - Control Valve Body Assembly Removal

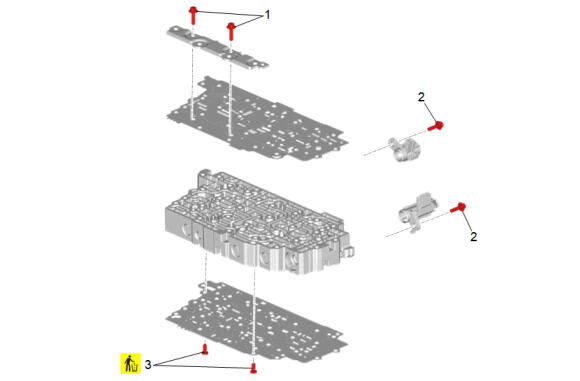

GM6419127Courtesy of GENERAL MOTORS COMPANY
Control Valve Body Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Solenoid Body Bolt [2x] - - 9 N.m (80 lb in) Control Valve Body Assembly Assemble
2 Control Valve Solenoid Body Bolt [2x] - - 9 N.m (80 lb in)
3 Control Valve Body Spacer Plate Retainer [2x] Yes - - Control Valve Body Assembly Assemble
GM6419128Courtesy of GENERAL MOTORS COMPANY

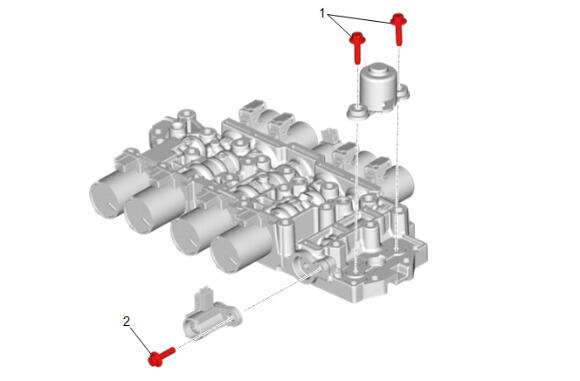

Control Valve Solenoid Body Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Solenoid Body Bolt [2x] - - 8 N.m (71 lb in) Control Valve Body Assembly Installation
2 Control Valve Solenoid Body Bolt - - 9 N.m (80 lb in) Control Valve Body Assembly Assemble
GM6596045Courtesy of GENERAL MOTORS COMPANY

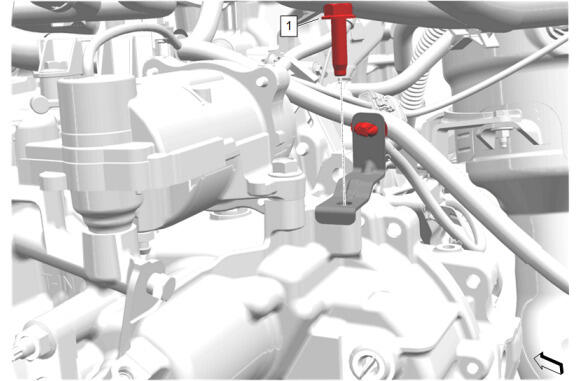

Engine Wiring Harness Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Clip Bracket Bolt - - 22 N.m (16 lb ft) Transmission Replacement (FWD) , or Transmission Replacement (AWD)

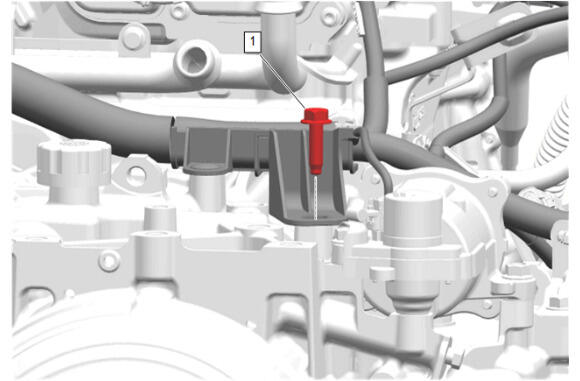

GM6612463Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Clip Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Clip Bracket Bolt - - 22 N.m (16 lb ft) Automatic Transmission Removal and Installation (FWD) , or Automatic Transmission Removal and Installation (AWD)

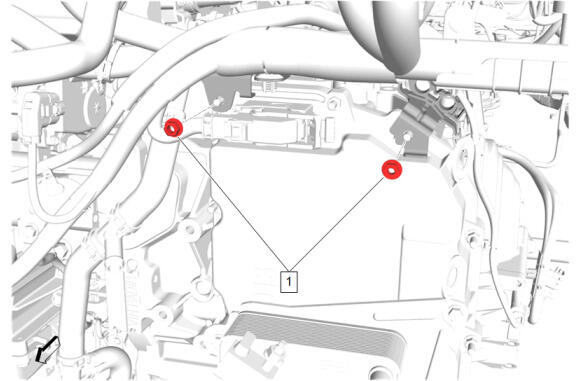

GM6577388Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Bracket Nuts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Engine Wiring Harness Bracket Nut [2x] - - 9 N.m (80 lb in) Control Valve Body Cover Replacement
GM6419178Courtesy of GENERAL MOTORS COMPANY

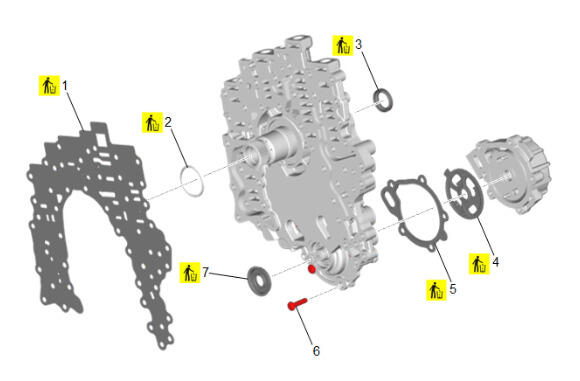

Oil Pump Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Auxiliary Control Valve Body Spacer Plate Yes - - Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation
2 Torque Converter Fluid Seal Ring Yes - - Transmission Fluid Pump Assemble
3 Stator Shaft Seal Yes - -
4 Automatic Transmission Fluid Pump Seal Yes - -
5 Automatic Transmission Fluid Pump Gasket Yes - -
6 Automatic Transmission Fluid Pump Cover Bolt [5x] Yes - 9 N.m (80 lb in)
7 Automatic Transmission Fluid Pump Shaft Seal Yes - -

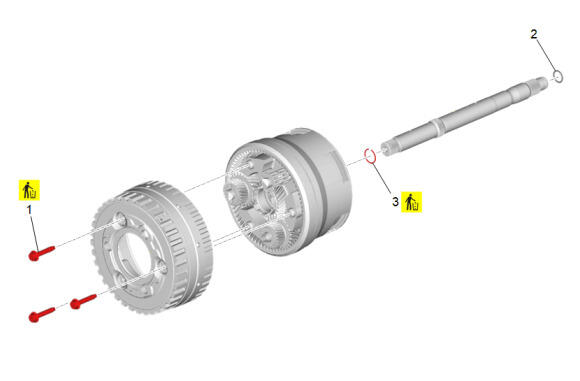

GM6419180Courtesy of GENERAL MOTORS COMPANY
Overdrive Carrier and Turbine Shaft

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Overdrive and Reaction Carrier Bolt [3x] Yes - 9 N.m (80 lb in) Overdrive and Reaction with Input Internal Gear Carrier Overhaul
2 Turbine Shaft Seal - - - 5-7-Reverse and 6-7-8-9 Clutch Housing Assemble
3 Turbine Shaft Retainer Ring Yes - -

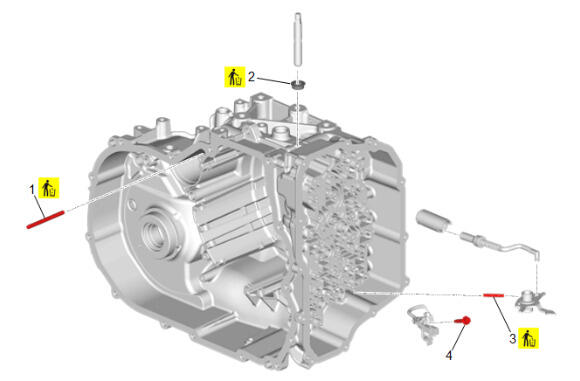

GM6419181Courtesy of GENERAL MOTORS COMPANY
Park System Components

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Park Pawl Actuator Guide Pin Yes - - Park Release Lever and Park Pawl Actuator Installation
2 Manual Shift Shaft Seal Yes - - Manual Shift Shaft Seal Installation
3 Manual Shaft Detent Lever Hub Pin Yes - - Park Release Lever and Park Pawl Actuator Installation
4 Automatic Transmission Output Speed Sensor Bolt - - 9 N.m (80 lb in) Input and Output Speed Sensor Installation

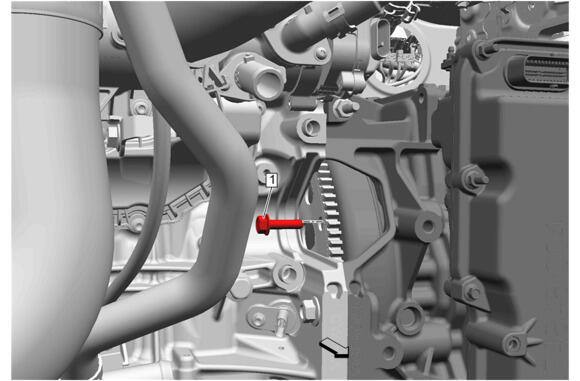

GM5053382Courtesy of GENERAL MOTORS COMPANY
Transmission Torque Converter Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Torque Converter Bolt [6x] - Yes 60 N.m (44 lb ft) Automatic Transmission Removal and Installation (FWD) , or Automatic Transmission Removal and Installation (AWD)

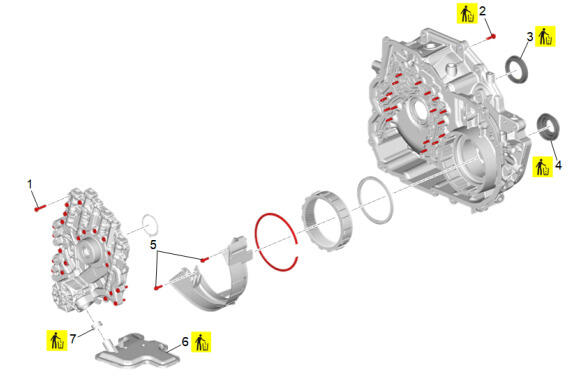

GM6419188Courtesy of GENERAL MOTORS COMPANY
Torque Converter and Differential Housing Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pump Cover Bolt [22x] - - Automatic Transmission Fluid Pump Cover Bolt Torque Sequence - Front  Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation
2 Automatic Transmission Fluid Pump Cover Bolt [19x] Yes - Automatic Transmission Fluid Pump Cover Bolt Torque Sequence - Back
3 Torque Converter Fluid Seal Yes - - Torque Converter Fluid Seal Replacement (AWD) , or Torque Converter Fluid Seal Replacement (FWD)
4 Front Wheel Drive Shaft Oil Seal Yes - - Front Wheel Drive Shaft Oil Seal Replacement - Right Side (FWD)
5 Front Differential Carrier Baffle Bolt [2x] - - 9 N.m (80 lb in) Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation
6 Automatic Transmission Fluid Filter Yes - - Transmission Fluid Pump Assemble
7 Automatic Transmission Fluid Filter Seal Yes - -

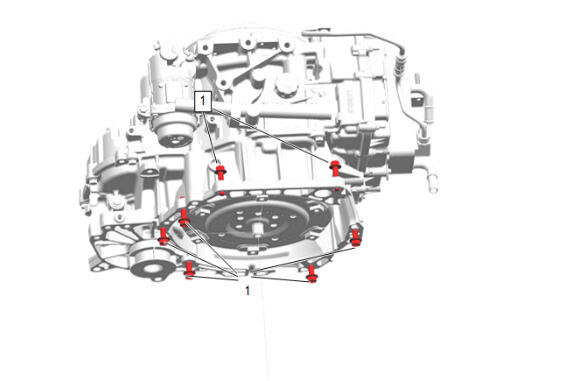

GM6608690Courtesy of GENERAL MOTORS COMPANY
Transmission Bolt

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Bolt [7x] - - 58 N.m (43 lb ft) Automatic Transmission Removal and Installation (FWD) , or Automatic Transmission Removal and Installation (AWD)

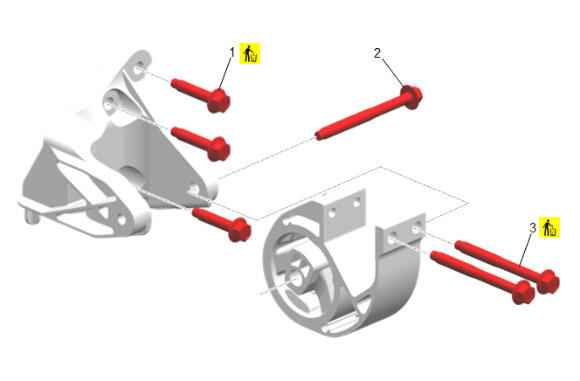

GM6419597Courtesy of GENERAL MOTORS COMPANY
Transmission Bracket and Mount - Rear

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Rear Mount Bracket Bolt [3x] Yes - First Pass:
100 N.m (74 lb ft)
Final Pass: 45-60 degrees		 Transmission Rear Mount Bracket Replacement (AWD) , or Transmission Rear Mount Bracket Replacement (FWD)
2 Rear Transmission Mount Through Bolt - - 100 N.m (74 lb ft) Transmission Rear Mount Replacement (AWD) , or Transmission Rear Mount Replacement (FWD)
3 Rear Transmission Mount Bolt [2x] Yes - First Pass:
100 N.m (74 lb ft)
Final Pass: 90 to 105 degrees
GM6419190Courtesy of GENERAL MOTORS COMPANY

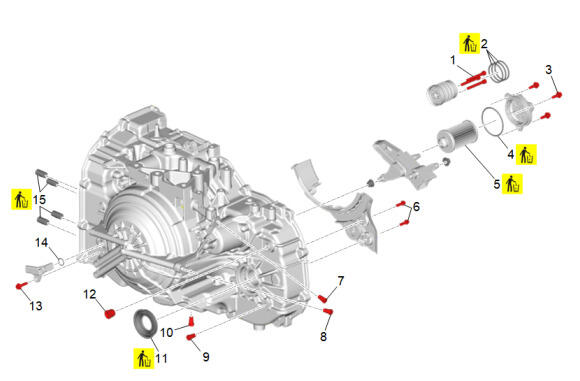

Transmission Case Assembly

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Input Shaft Support Bolt [3x] - - 12 N.m (106 lb in) Input Shaft Support Overhaul
2 5-7-Reverse and 6-7-8-9 Clutch Fluid Seal Ring [3x] Yes - -
3 Automatic Transmission Fluid Filter Bolt [3x] - - 10 N.m (89 lb in) Transmission Fluid Filter Assembly Installation
4 Automatic Transmission Fluid Filter Seal Yes - -
5 Automatic Transmission Fluid Filter Yes - -
6 Front Differential Carrier Baffle Bolt [2x] - - 12 N.m (106 lb in) Drive and Driven Sprocket, Drive Link, and Park Pawl Installation
7 Automatic Transmission Fluid Pressure Test Hole Plug - Yes 12 N.m (106 lb in) Automatic Transmission Fluid Pressure Test Hole Plug Replacement
8 Automatic Transmission Case Hole Plug - Yes 12 N.m (106 lb in) Automatic Transmission Case Hole Plug Replacement (Auxiliary Fluid Fill Plug) , or Automatic Transmission Case Hole Plug Replacement (Line Pressure Plug)
9 Automatic Transmission Fluid Level Hole Plug - Yes 12 N.m (106 lb in) Automatic Transmission Fluid Level Hole Plug Replacement
10 Automatic Transmission Fluid Pan Drain Plug - Yes 12 N.m (106 lb in) Automatic Transmission Fluid Pan Drain Plug Replacement
11 Front Wheel Drive Shaft Oil Seal Yes - - Front Wheel Drive Shaft Oil Seal Replacement - Left Side
12 Automatic Transmission Case Hole Plug - Yes 40 N.m (30 lb ft) Automatic Transmission Case Hole Plug Replacement (Auxiliary Fluid Fill Plug) , or Automatic Transmission Case Hole Plug Replacement (Line Pressure Plug)
13 Automatic Transmission Input Speed Sensor Bolt - - 9 N.m (80 lb in) Automatic Transmission Input Speed Sensor Replacement
14 Automatic Transmission Input Speed Sensor Seal - - -
15 Clutch Fluid Passage Seal [4x] Yes - - Control Valve Body Assembly Installation
GM6419598Courtesy of GENERAL MOTORS COMPANY

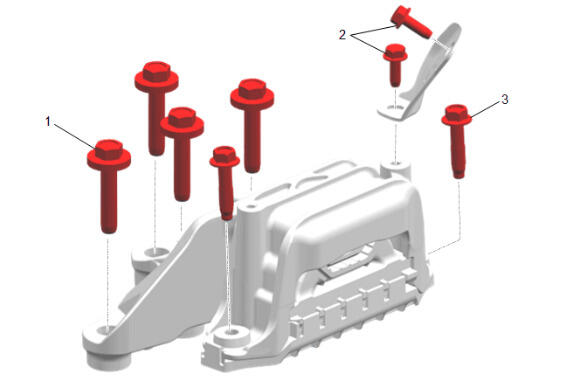

Transmission Mount

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Mount Transmission Side Bolt [4x] - - Transmission Mount Torque Sequence  Transmission Mount Replacement
2 Transmission Mount Brace Bolt [2x] - - 22 N.m (16 lb ft)
3 Transmission Mount Bolt [2x] - - 58 N.m (43 lb ft)

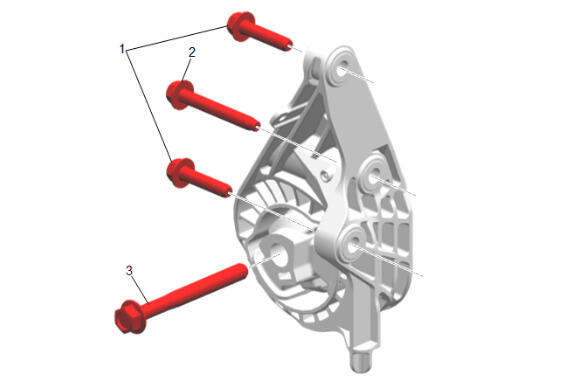

GM6419600Courtesy of GENERAL MOTORS COMPANY
Transmission Mount - Front

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Front Mount Bolt [2x] - - 58 N.m (43 lb ft) Transmission Front Mount Replacement
2 Transmission Front Mount Bolt - - 58 N.m (43 lb ft)
3 Transmission Front Mount Bolt - - 100 N.m (74 lb ft)

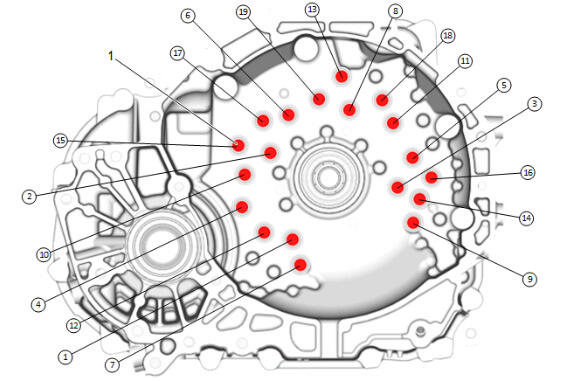

Automatic Transmission Fluid Pump Cover Bolt Torque Sequence - Back
GM6419117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pump Cover Bolt [19x] Yes - First Pass: 6 N.m (53 lb in)
Final Pass: 20 degrees		 Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation

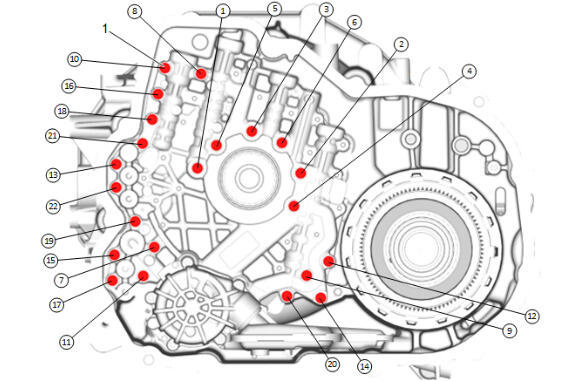

Automatic Transmission Fluid Pump Cover Bolt Torque Sequence - Front
GM6419120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Automatic Transmission Fluid Pump Cover Bolt [22x] Yes - First Pass: 6 N.m (53 lb in)
Final Pass: 20 degrees		 Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Installation
Control Valve Body Bolt Torque Sequence

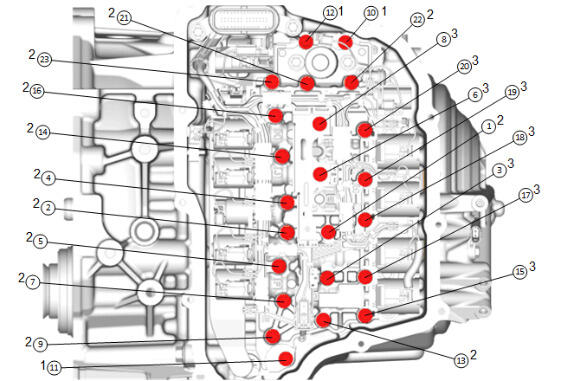

GM6419125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Body Bolt [3x] - - 8 N.m (71 lb in) Control Valve Body Assembly Installation
2 Control Valve Body Bolt [12x] - - 8 N.m (71 lb in)
3 Control Valve Body Bolt [8x] - - 8 N.m (71 lb in)

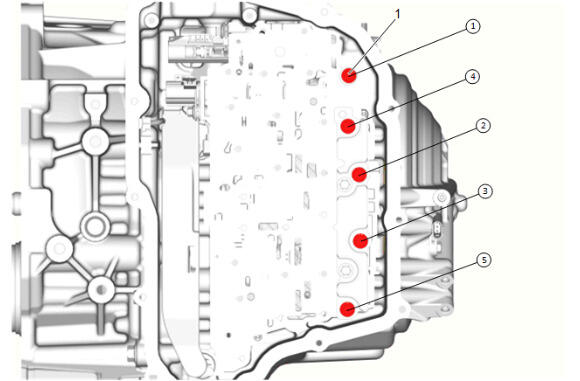

Control Valve Body Bolt Torque Sequence
GM6419126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Body Bolt [5x] - - 8 N.m (71 lb in) Control Valve Body Assembly Installation

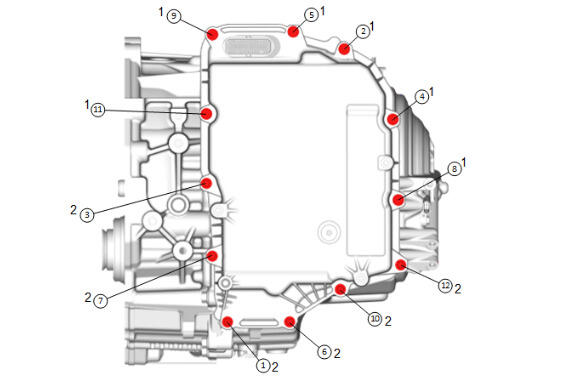

Cover Bolt Torque Sequence
GM6419141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Control Valve Body Cover Stud [6x] - - 11 N.m (97 lb in) Control Valve Body Cover Replacement
2 Control Valve Body Cover Bolt [6x] - - 11 N.m (97 lb in)

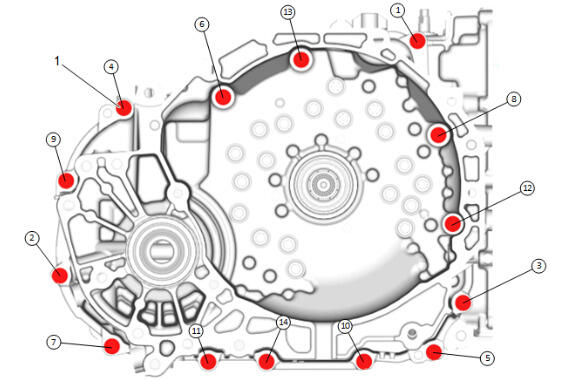

Torque Converter and Differential Housing Bolt Torque Sequence
GM6419186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Torque Converter and Differential Housing Bolt [14x] - - First Pass: 10 N.m (89 lb in)
Final Pass: 50 degrees		 Torque Converter Housing with Fluid Pump Assembly Installation
Transmission Mount Torque Sequence

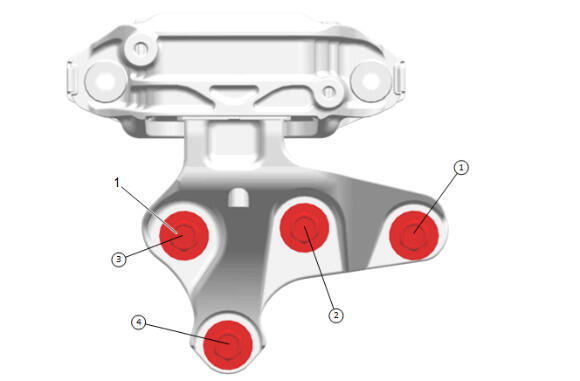

GM6420047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Transmission Mount Transmission Side Bolt [4x] - - 100 N.m (74 lb ft) Transmission Mount Replacement
