Installation Procedure

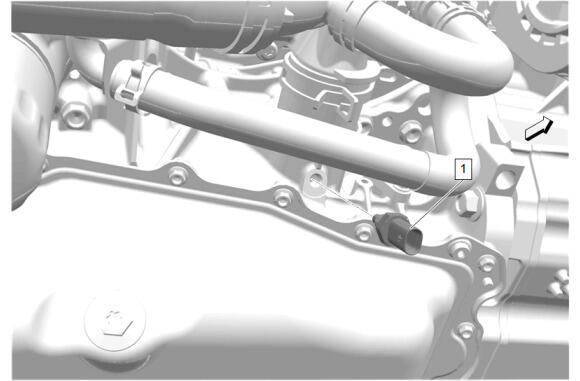

  1. GM6407448Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution .

    Engine Coolant Temperature Sensor (1) - Install and tighten - Fastener Specifications

  2. Connect the electrical connector.
  3. Install underbody panels as necessary. Underbody Panel Component Locator
  4. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716)
