K45 Powertrain Control Module X2

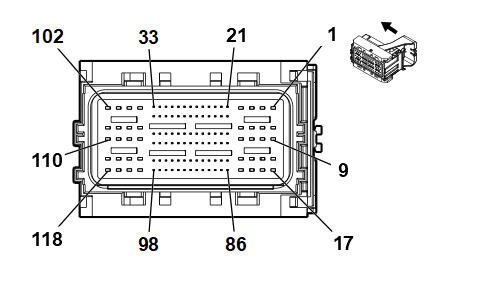

GM6166536Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Engine Wiring Harness
  • OEM Connector: 13552796
  • Service Connector: 85079959
  • Description: 118-Way F 0.5, 1.2 MXGENV Series, Sealed (BK with BK Terminal Position Assurance)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool
I 85079962 EL-35616-58 (BK) EL-38125-58
II 85079963 J-35616-12 (BU) EL-38125-58
Pin Size Color Circuit Function Terminal Type ID Option
1 - 13 - - - Not Occupied - -
14 0.5 WH / BN 10830 Oil Rotary Valve Open Control II -
15 0.5 GN / BN 10824 Radiator Rotary Valve Open Control II -
16 0.5 YE / BN 10827 Block Rotary Valve Open Control II -
17 - - - Not Occupied - -
18 0.5 WH / GY 10831 Oil Rotary Valve Close Control II -
19 0.5 GN / GY 10825 Radiator Rotary Valve Close Control II -
20 0.5 YE / GY 10828 Block Rotary Valve Close Control II -
21 0.5 YE / WH 3200 Throttle Inlet Absolute Pressure Sensor Signal I -
22 0.5 GN 380 Air Conditioning Refrigerant Pressure Sensor Signal I -
23 - 24 - - - Not Occupied - -
25 0.5 YE / BN 331 Oil Pressure Sensor Signal I -
26 - 27 - - - Not Occupied - -
28 0.5 GN / WH 432 Manifold Absolute Pressure Sensor Signal I -
29 0.5 YE / GY 3926 Crankcase Differential Pressure Sensor Signal I -
30 0.5 BN / BU 2447 Evaporative Purge Pump Pressure Signal I -
31 0.5 BU / BK 1422 Engine Water Charge Air Coolant Temperature Signal I -
32 - 34 - - - Not Occupied - -
35 0.5 WH / YE 6317 Electronic Transmission Range Select Out of Park Switch Signal I -
36 0.5 BN / BU 357 Oil Temperature Sensor Signal I -
37 0.5 VT 7485 Engine Oil Temperature Sensor 2 Signal I -
38 0.5 YE / BU 12813 Engine Coolant Control Valve Temperature Sensor Signal I -
39 0.5 VT 12814 Engine Water Pump Coolant Temperature Sensor Signal I -
40 0.5 BU 2990 Engine Radiator Coolant Temperature Sensor Signal I -
41 - 42 - - - Not Occupied - -
43 0.5 BU / YE 8938 Engine Integrated Exhaust Manifold Temperature Signal I -
44 0.5 GY / VT 2404 Engine Block Coolant Temperature Signal I -
45 0.5 WH / BU 7329 Pre-Throttle Air Temperature Signal I -
46 0.5 BN / WH 585 Transmission Fluid Temperature Sensor Signal I -
47 - 50 - - - Not Occupied - -
51 0.5 GN / WH 492 Mass Air Flow Sensor Signal I -
52 0.5 VT / WH 6319 Electronic Transmission Range Select Out of Park Switch 2 Signal I -
53 - 55 - - - Not Occupied - -
56 0.5 VT / GY 496 Knock Sensor 1 Signal I -
57 0.5 BK / YE 1716 Knock Sensor Low Reference 1 I -
58 0.5 BN 3706 Electronic Transmission Range Select Switch Analog Signal 1 I -
59 0.5 WH / BK 3705 Electronic Transmission Range Select Switch Analog Signal 2 I -
60 - 72 - - - Not Occupied - -
73 0.5 GN / BU 428 EVAP Canister Purge Solenoid Control I -
74 - 75 - - - Not Occupied - -
76 0.5 GY / BU 5282 Exhaust Camshaft Position Actuator Solenoid Valve 1 I -
77 0.5 BK / VT 6754 Camshaft Position Actuator Solenoid Valve X Low Reference I -
78 0.5 WH / GY 1876 Knock Sensor 2 Signal I -
79 0.5 BK / GY 2303 Knock Sensor Low Reference 2 I -
80 - 83 - - - Not Occupied - -
84 0.5 YE / BK 625 Starter Enable Relay Control I -
85 0.5 YE / VT 4325 Starter Pinion Solenoid Actuator Relay Control I -
86 - 98 - - - Not Occupied - -
99 0.5 WH / GY 4578 Surge Accumulator Solenoid Valve Low Side Control II -
100 - 106 - - - Not Occupied - -
107 0.5 GY / BK 5501 TCC / Clutch Select Solenoid Valve Control II -
108 0.5 WH / YE 2159 Park Inhibit Solenoid Assembly Control II -
109 0.5 YE 7301 High Pressure Fuel Pump High Control II -
110 0.5 VT / BK 7300 High Pressure Fuel Pump Low Control II -
111 0.75 GN 4803 Direct Fuel Injector High Voltage Control Cylinder 3 II -
112 0.75 BU 4802 Direct Fuel Injector High Voltage Control Cylinder 2 II -
113 0.75 BN 4801 Direct Fuel Injector High Voltage Control Cylinder 1 II -
114 0.75 GY / BU 4804 Direct Fuel Injector High Voltage Control Cylinder 4 II -
115 0.75 GN / GY 4903 Direct Fuel Injector High Voltage Supply Cylinder 3 II -
116 0.75 BU / GY 4902 Direct Fuel Injector High Voltage Supply Cylinder 2 II -
117 0.75 BN / WH 4901 Direct Fuel Injector High Voltage Supply Cylinder 1 II -
118 0.75 BU / WH 4904 Direct Fuel Injector High Voltage Supply Cylinder 4 II -
