Fastener Specifications

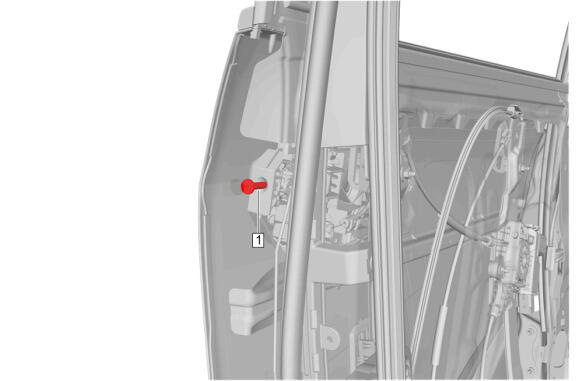

GM6419341Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Screw - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Replacement

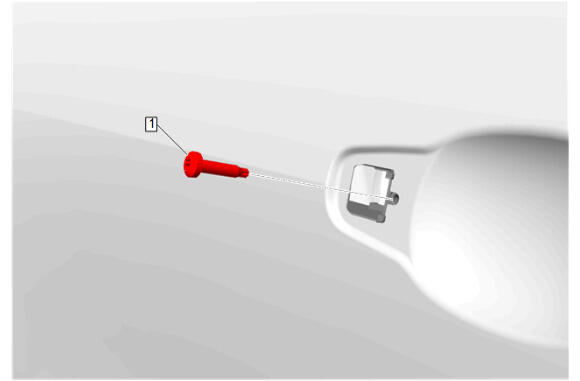

GM6389389Courtesy of GENERAL MOTORS COMPANY
Front Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Outside Handle Bracket Screw - - 4.7 N.m (42 lb in) Front Side Door Outside Handle Bracket Replacement

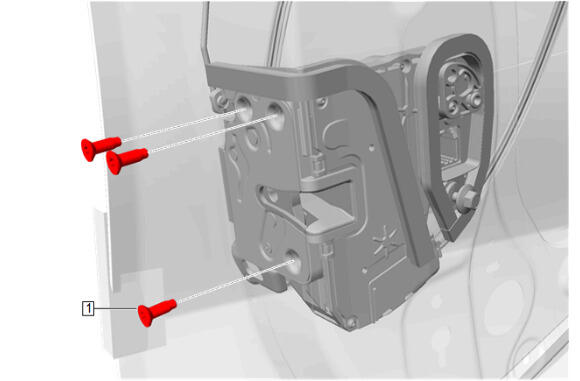

GM6389390Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt [3x] - Yes 9 N.m (80 lb in) Front Side Door Latch Replacement

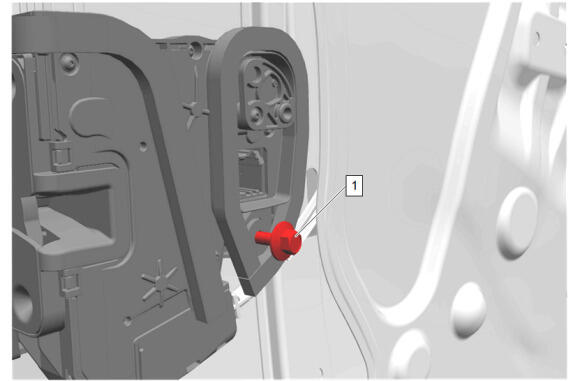

GM6554071Courtesy of GENERAL MOTORS COMPANY
Front Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Latch Bolt - - 11 N.m (97 lb in) Front Side Door Latch Replacement

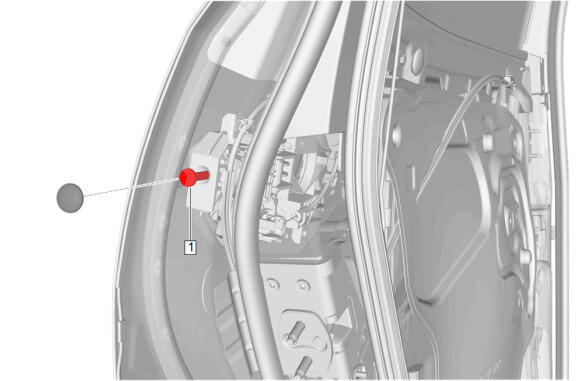

GM6422833Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Screw - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Replacement

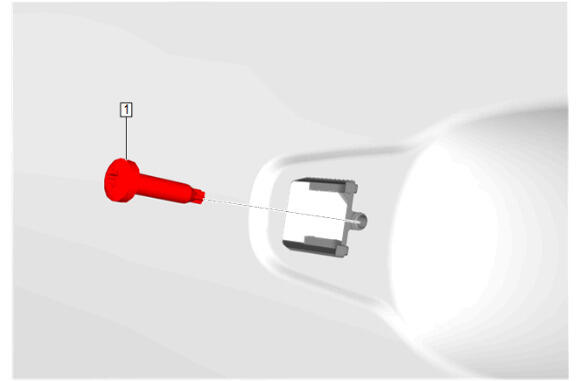

GM6389458Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Outside Handle Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Outside Handle Bracket Screw - - 4.7 N.m (42 lb in) Rear Side Door Outside Handle Bracket Replacement

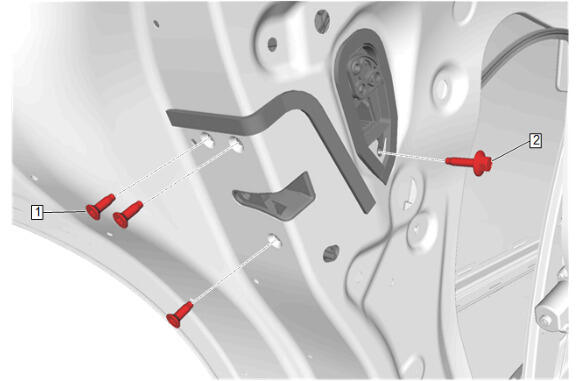

GM6400438Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Latch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Latch Bolt [3x] - Yes 9 N.m (80 lb in) Rear Side Door Latch Replacement
2 Rear Side Door Latch Bolt - Yes 11 N.m (97 lb in) Rear Side Door Latch Replacement

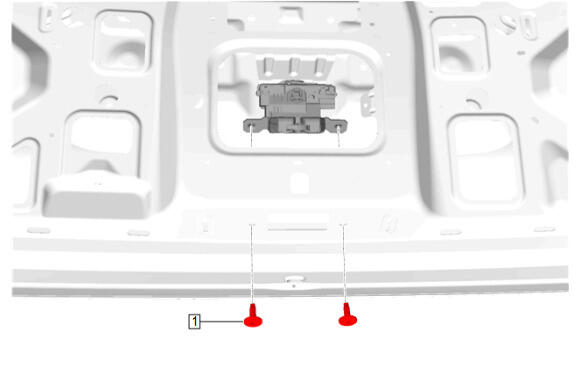

GM6422848Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Bolt [2x] - Yes 22 N.m (16 lb ft) Liftgate Latch Replacement

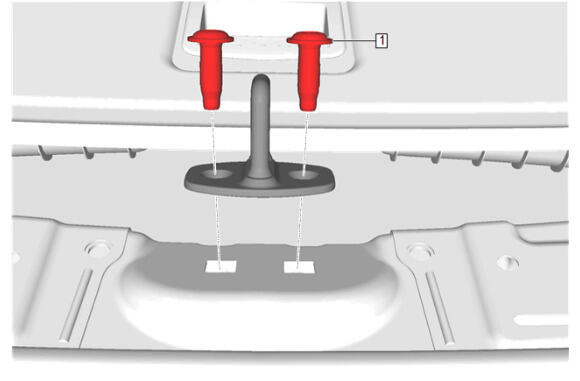

GM6422853Courtesy of GENERAL MOTORS COMPANY
Liftgate Latch Striker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Liftgate Latch Striker Bolt [2x] - - 22 N.m (16 lb ft) Liftgate Latch Striker Replacement
GM4573548Courtesy of GENERAL MOTORS COMPANY
Rear Side Door Lock Striker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Lock Striker Bolt [2x] - - 22 N.m (16 lb ft) Rear Side Door Latch Striker Replacement

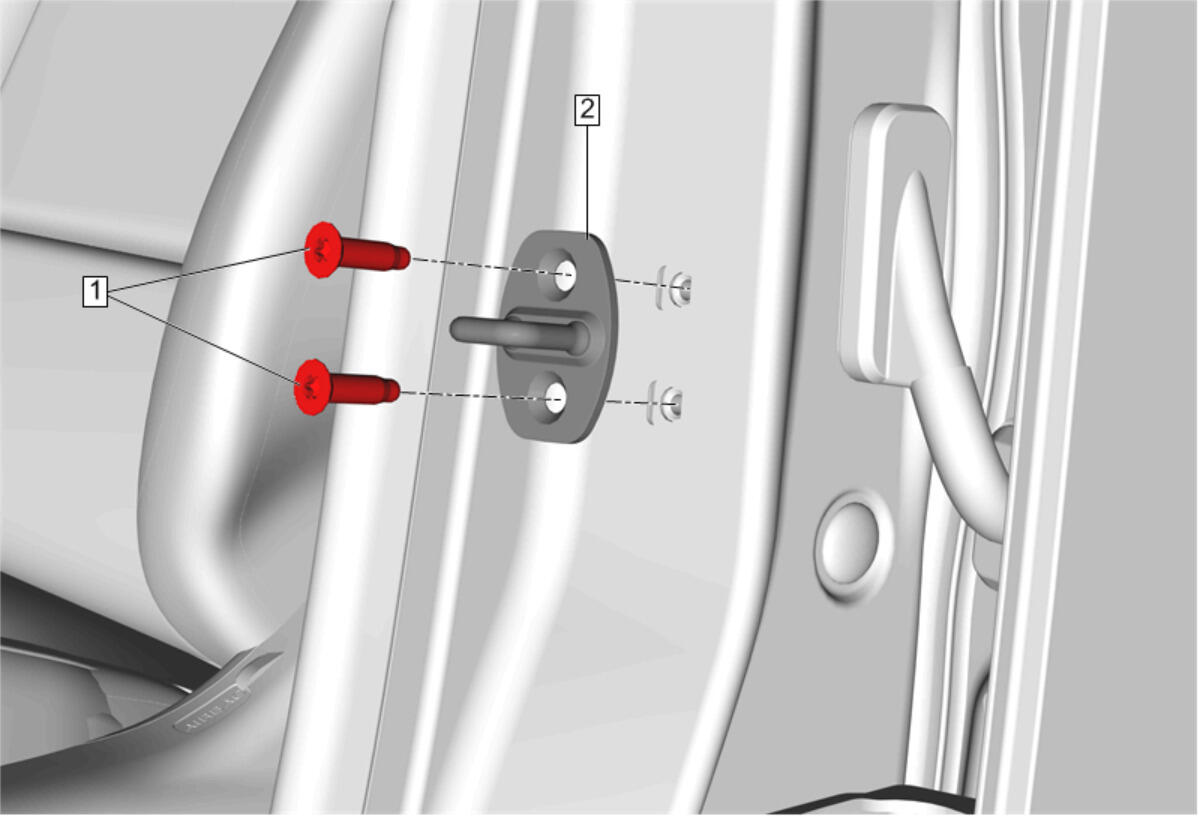

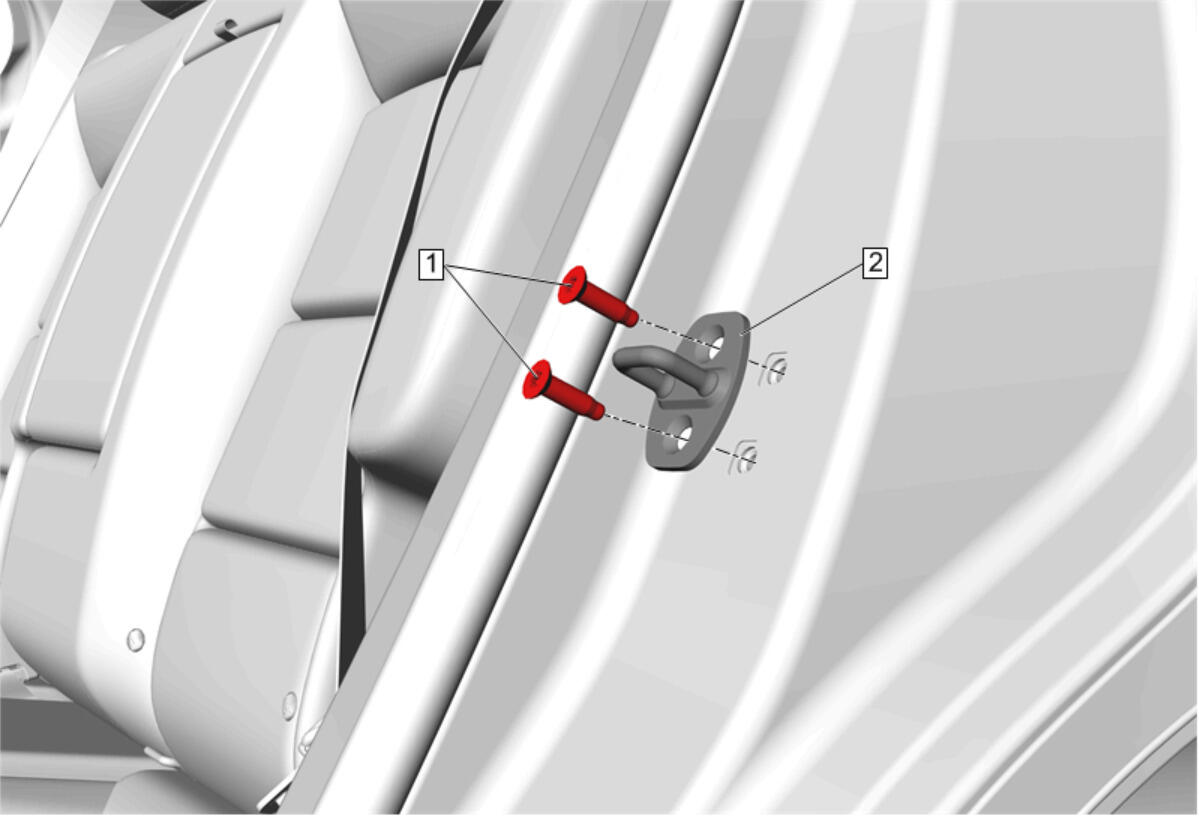

GM4573545Courtesy of GENERAL MOTORS COMPANY
Front Side Door Lock Striker

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Lock Striker Bolt [2x] - - 22 N.m (16 lb ft) Front Side Door Latch Striker Replacement
