Installation Procedure

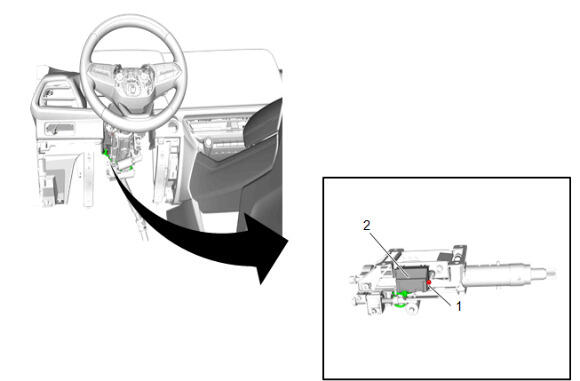

  1. GM6396027Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel and Telescope Control Module (2) - Install

  2. Connect the electrical connector.
    3. CAUTION:

    Fastener Caution .

  3. Steering Column Tilt Wheel and Telescope Control Module Bolt (1) - Install and tighten - Fastener Specifications

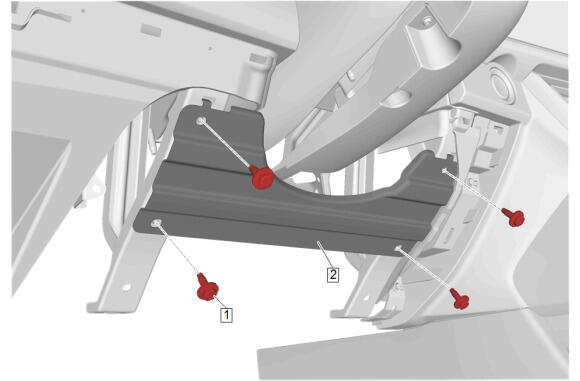

  4. GM6399510Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Deflector (2) - Install

  5. Instrument Panel Knee Bolster Deflector Bolt (1) - Install and tighten[4x] - Fastener Specifications

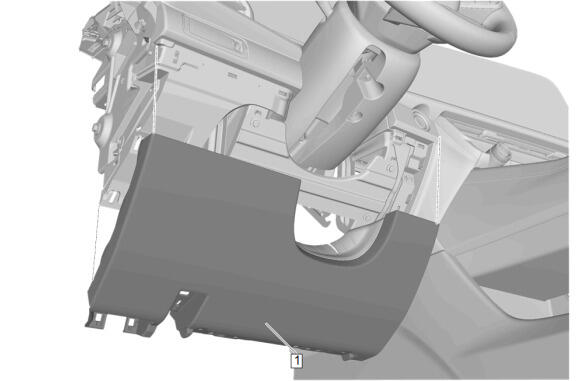

  6. GM6399550Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

    Instrument Panel Knee Bolster(1) - Install

  7. Instrument Panel Knee Bolster(1) - Install

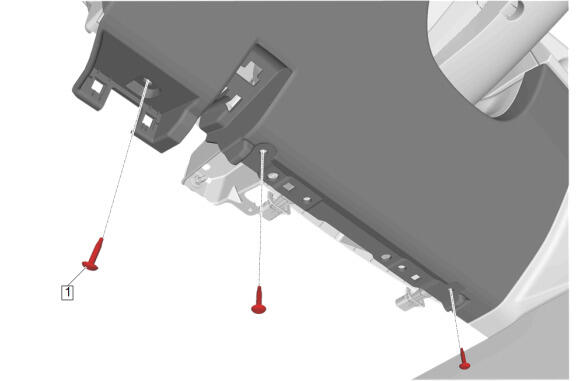

  8. GM6399511Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt(1) - Install and tighten[3x] - Fastener Specifications

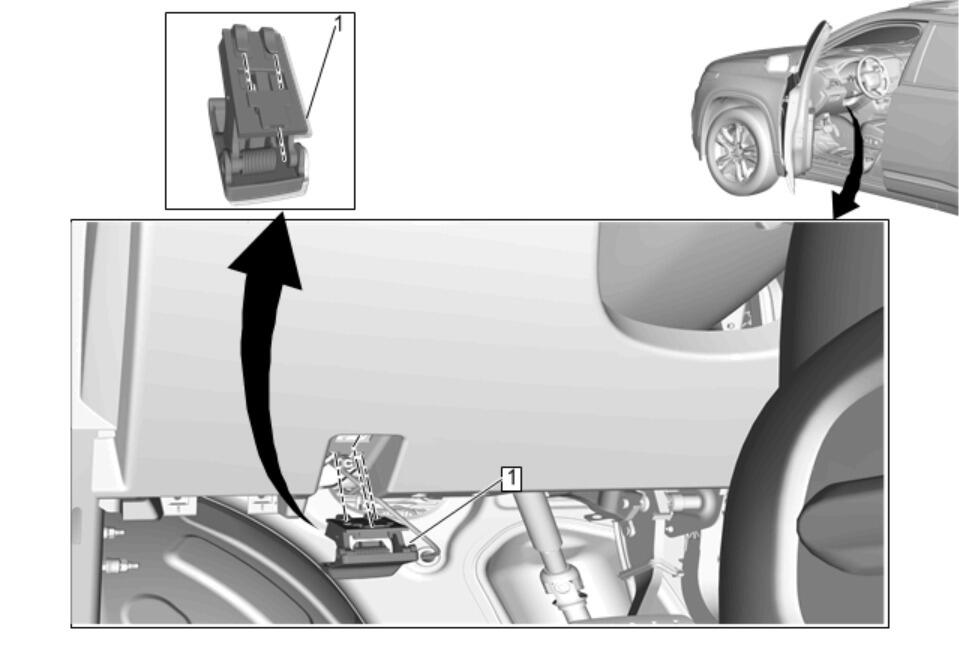

  9. GM4708585Courtesy of GENERAL MOTORS COMPANY

    Hood Primary Latch Release Cable Handle (1) - Install

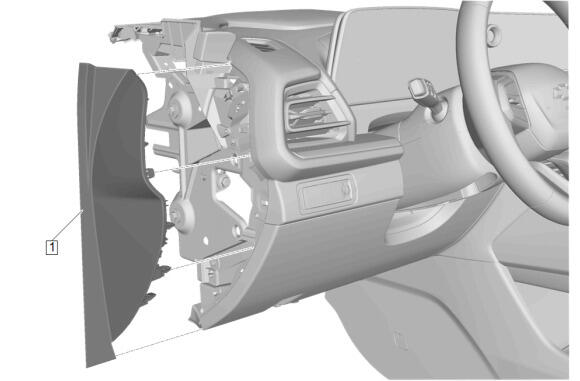

  10. GM6399514Courtesy of GENERAL MOTORS COMPANY

    Insert the tab at the top of the instrument panel outer trim cover (1) into the instrument panel before installing.

  11. Instrument Panel Outer Trim Cover(1) - Install
  12. Program the steering column tilt wheel and telescope control module. Control Module References
