Removal Procedure

Front Side Door Trim - Remove - Front Side Door Trim Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Reposition insulator, as required.

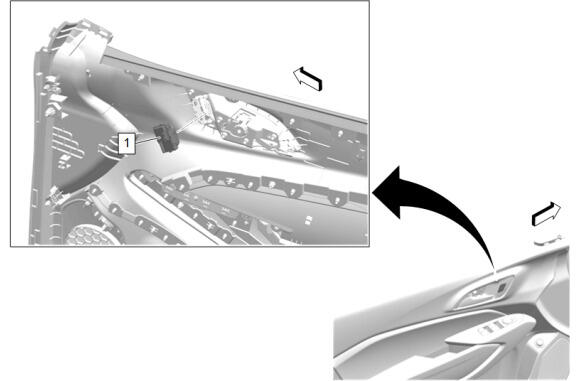

From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch (1) from the front side door trim.
Disconnect the electrical connector.
Door Lock Switch - Driver Side (1) - Remove
