Installation Procedure

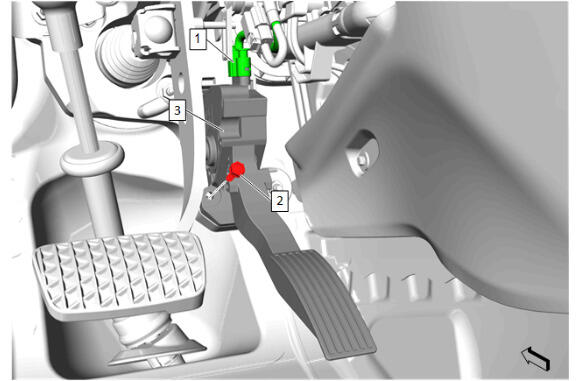

  1. GM5912823Courtesy of GENERAL MOTORS COMPANY

    Accelerator Pedal Assembly (3) - Install

    2. CAUTION:

    Fastener Caution

  2. Accelerator Pedal Lever Bolt (2) - Install and tighten - Fastener Specifications
  3. Electrical Connector (1) - Connect
