Installation Procedure

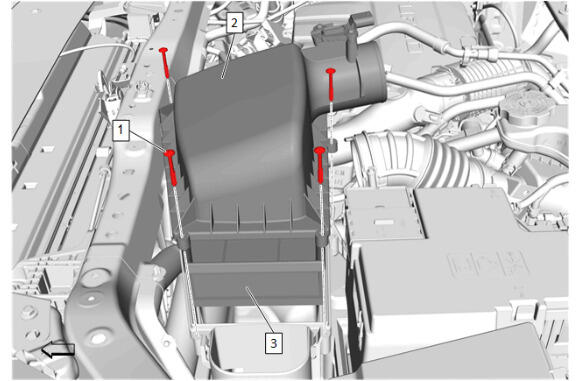

  1. GM6162732Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Element (3) - Install

  2. Air Cleaner Housing Cover (2) - Install
    3. CAUTION:

    Fastener Caution

  3. Air Cleaner Housing Cover Bolt (1) - Install and tighten [4x] - Fastener Specifications
  4. GM6162730Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Front Duct (2) @ Air Cleaner Assembly (3) - Install

  5. Air Cleaner Clamp (1) - Tighten - Fastener Specifications
  6. GM6162729Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (2) - Install

  7. Electrical Connector (1) - Connect
  8. GM6162728Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Vacuum Control Solenoid Valve Filter Hose (1) @ Air Cleaner Assembly (2) - Install

  9. GM6162738Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (1) - Install

  10. GM6162737Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct Retainer (1) - Install [2x]
