Installation Procedure

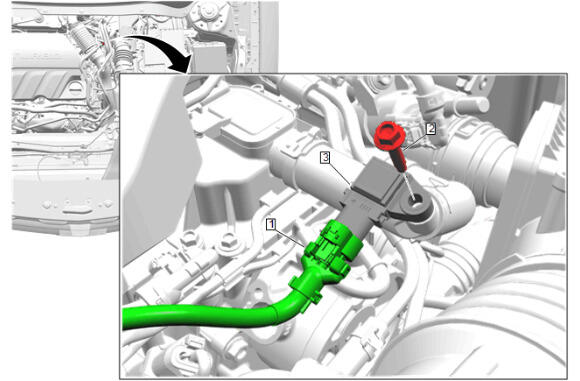

  1. GM6196364Courtesy of GENERAL MOTORS COMPANY

    Crankcase Pressure Sensor (3) - Install

    2. CAUTION:

    Fastener Caution

  2. Crankcase Pressure Sensor Bolt (2) - Install and tighten - Fastener Specifications
  3. Electrical Connector (1) - Connect
