Installation Procedure

CAUTION:

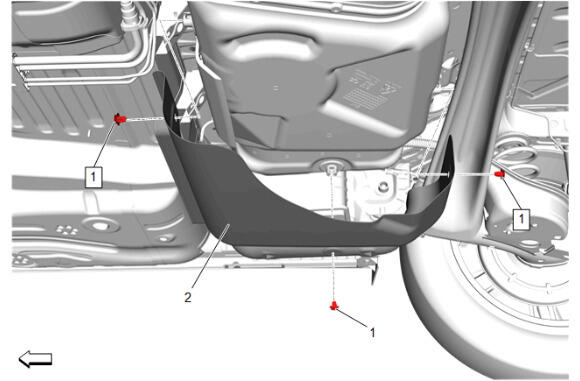

Fuel Tank Shield Nut (1) - Install [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

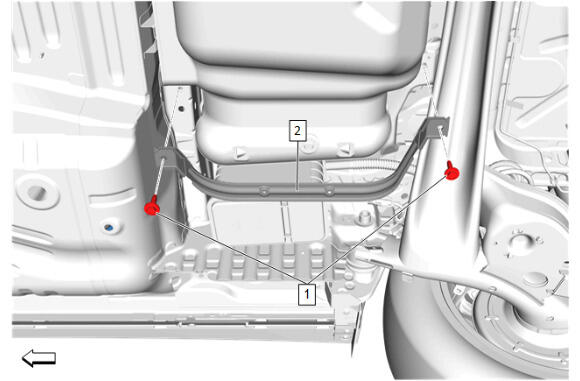

Fuel Tank Strap - Right Side (2) - Install
Fuel Tank Strap Bolt - Right Side (1) - Install and tighten [2x] - Fastener Specifications
Remove the jack.
Courtesy of GENERAL MOTORS COMPANY

Exhaust System Front Gasket (2) - Install NEW
Exhaust Muffler (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (1) @ Exhaust Insulator-Right Side (3) - Install
Exhaust Muffler (1) @ Exhaust Insulator-Left Side (2) - Install
Courtesy of GENERAL MOTORS COMPANY

Exhaust Muffler (2) @ Exhaust Insulator (3) - Install
Exhaust Hanger Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Catalytic Converter Nut (1) - Install and tighten [2x] - Fastener Specifications
Remove the support and lower the vehicle.
Inspect the exhaust system for leaks.
