Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

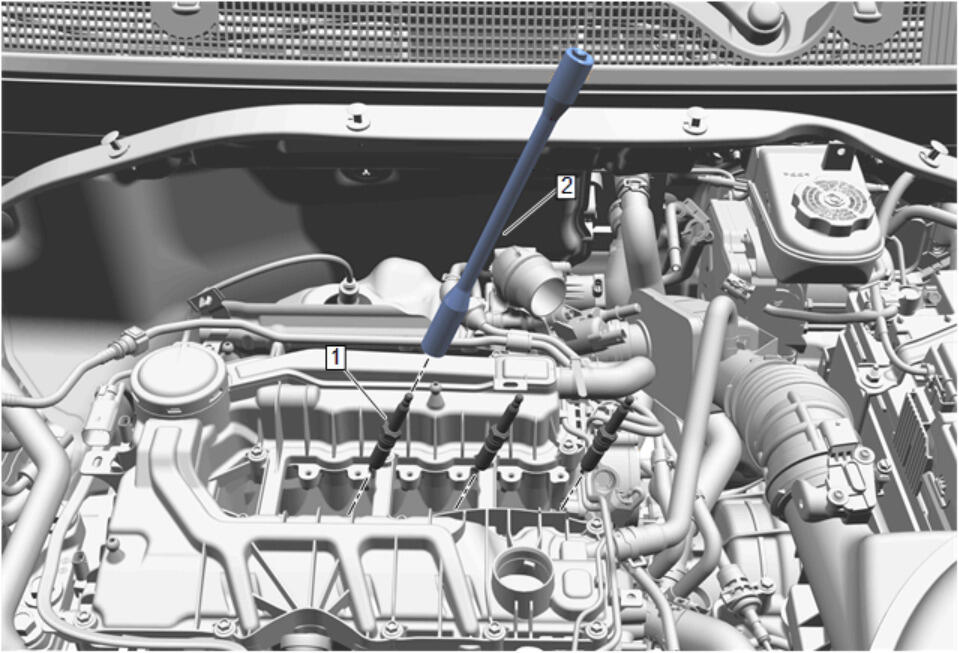

Spark Plug (1) - Install and tighten [3x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Inspect the inside of the ignition coil boot for a thin, even coat of dielectric grease. If there is no grease present or additional grease is necessary, apply a thin coating of dielectric grease to the inside of the ignition coil boot up to a depth of 15 mm (0.60 in) from the end of the boot. Adhesives, Fluids, Lubricants, and Sealers
Remove any excess dielectric grease from around the end of the ignition coil boot and ensure there is not an excessive amount within the boot.
Ignition Coil (2) - Install [3x]
Ignition Coil Bolt (1) - Install and tighten [6x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (3) - Install
Oil Filler Cap Seal (2) - Install
Oil Filler Cap (1) - Install
