Installation Procedure

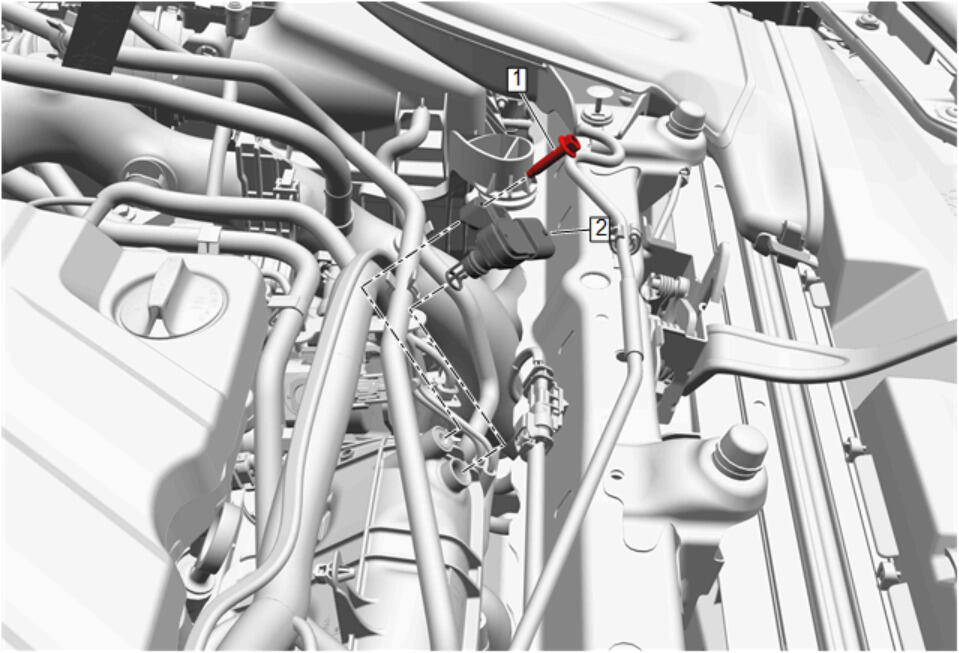

  1. GM5392503Courtesy of GENERAL MOTORS COMPANY

    Intake Air Pressure and Temperature Sensor (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Intake Air Pressure and Temperature Sensor Bolt (1) - Install and tighten - Fastener Specifications
  3. GM6182089Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector. (1)

  4. Perform the intake system learned values reset. Intake System Learned Values Reset
