Installation Procedure

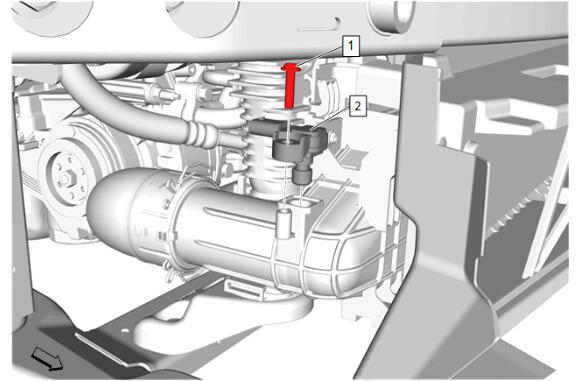

  1. GM6177483Courtesy of GENERAL MOTORS COMPANY

    Throttle Inlet Absolute Pressure Sensor (2) - Install

    2. CAUTION:

    Fastener Caution

  2. Throttle Inlet Absolute Pressure Sensor Bolt (1) - Install and tighten - Fastener Specifications

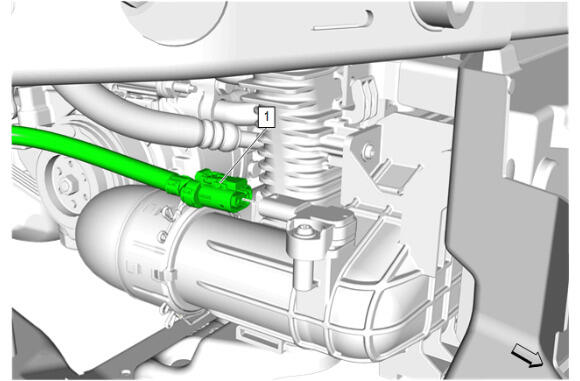

  3. GM6177440Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  4. GM5925325Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Removal and Installation
