Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

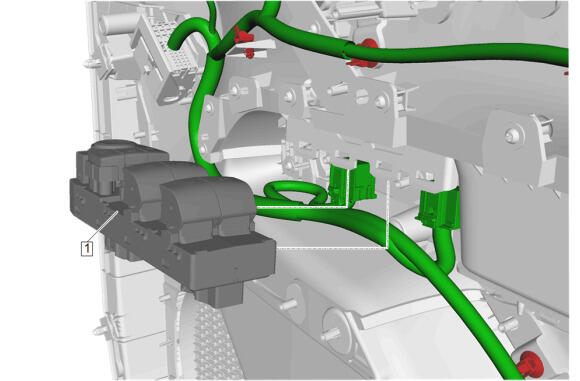

Front Side Door Window Control Switch (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer To Fastener Caution .

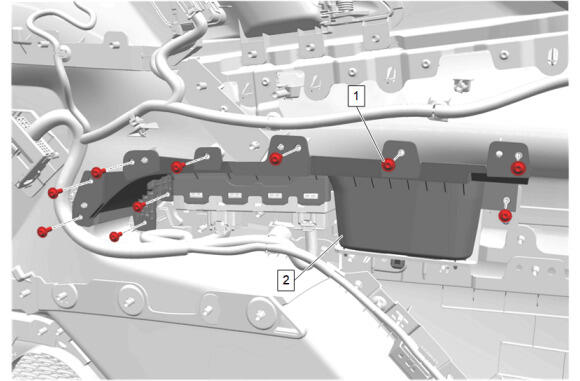

Front Switch Plate (2) - Install
Front Switch Plate Bolt (1) - Install And Tighten [10X] - fastener Specifications
Connect The Electrical Connectors.
Front Side Door Trim - Install - Front Side Door Trim Removal And Installation
