Fastener Specifications
NOTE:

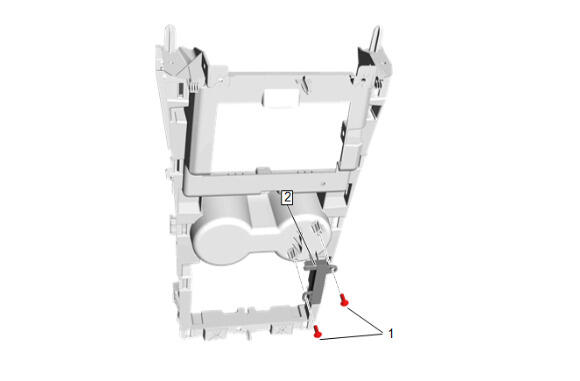

Callout items in the following chart represent components shown in graphic above.
Low Frequency Console Antenna
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Low Frequency Console Antenna Bolt [2x] | - | - | 4.7 N.m (42 lb in) | Low Frequency Console Antenna Replacement |
