Fastener Specifications

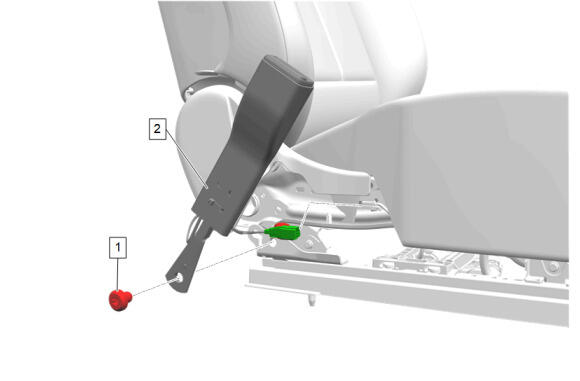

GM5956015Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Seat Belt Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Front Seat Belt Buckle Replacement

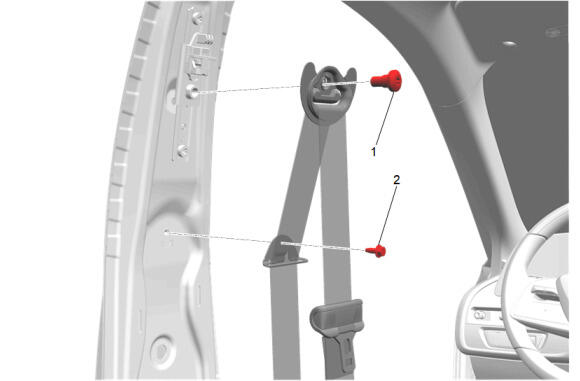

GM5969101Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Seat Belt Retractor

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement
2 Front Seat Belt Intermediate Guide Bolt - - 9 N.m (80 lb in) Front Seat Belt Retractor Replacement

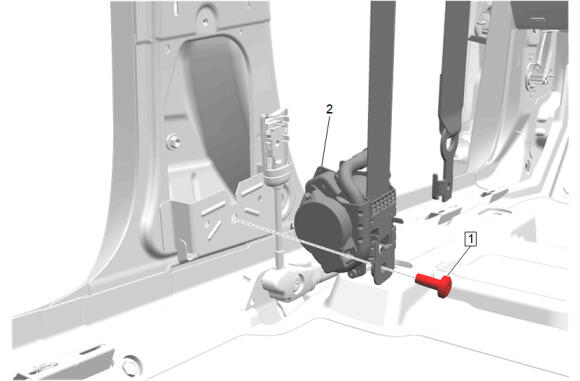

GM5969102Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Seat Belt Retractor

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) Front Seat Belt Retractor Replacement

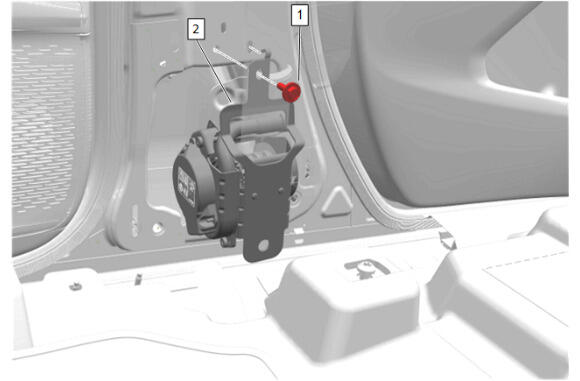

GM6682331Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Seat Belt Retractor

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Retractor Bolt - - 9 N.m (80 lb in) Front Seat Belt Retractor Replacement

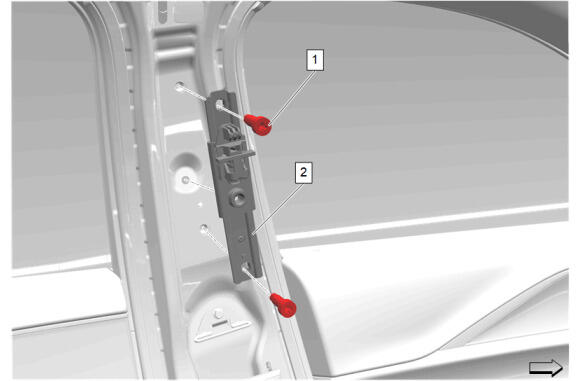

GM5970038Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Seat Belt Guide Adjuster

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Seat Belt Adjust Bolt [2x] - Yes 45 N.m (33 lb ft) Front Seat Belt Guide Adjuster Replacement

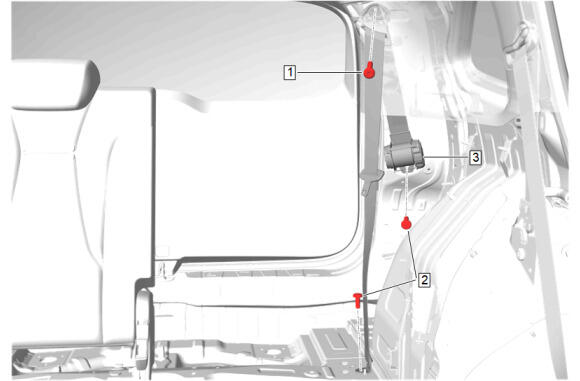

GM5700421Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
3rd Row Seat Belt Retractor

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Retractor Bolt - - 45 N.m (33 lb ft) 3rd Row Seat Belt Retractor Replacement
2 3rd Row Seat Belt Retractor Bolt [2x] - - 45 N.m (33 lb ft) 3rd Row Seat Belt Retractor Replacement
GM4769186Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
3rd Row Center Seat Belt Retractor

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 3rd Row Seat Belt Guide Bolt - - 45 N.m (33 lb ft) 3rd Row Center Seat Belt Retractor Replacement
2 3rd Row Seat Belt Retractor Bolt - Yes 45 N.m (33 lb ft) 3rd Row Center Seat Belt Retractor Replacement

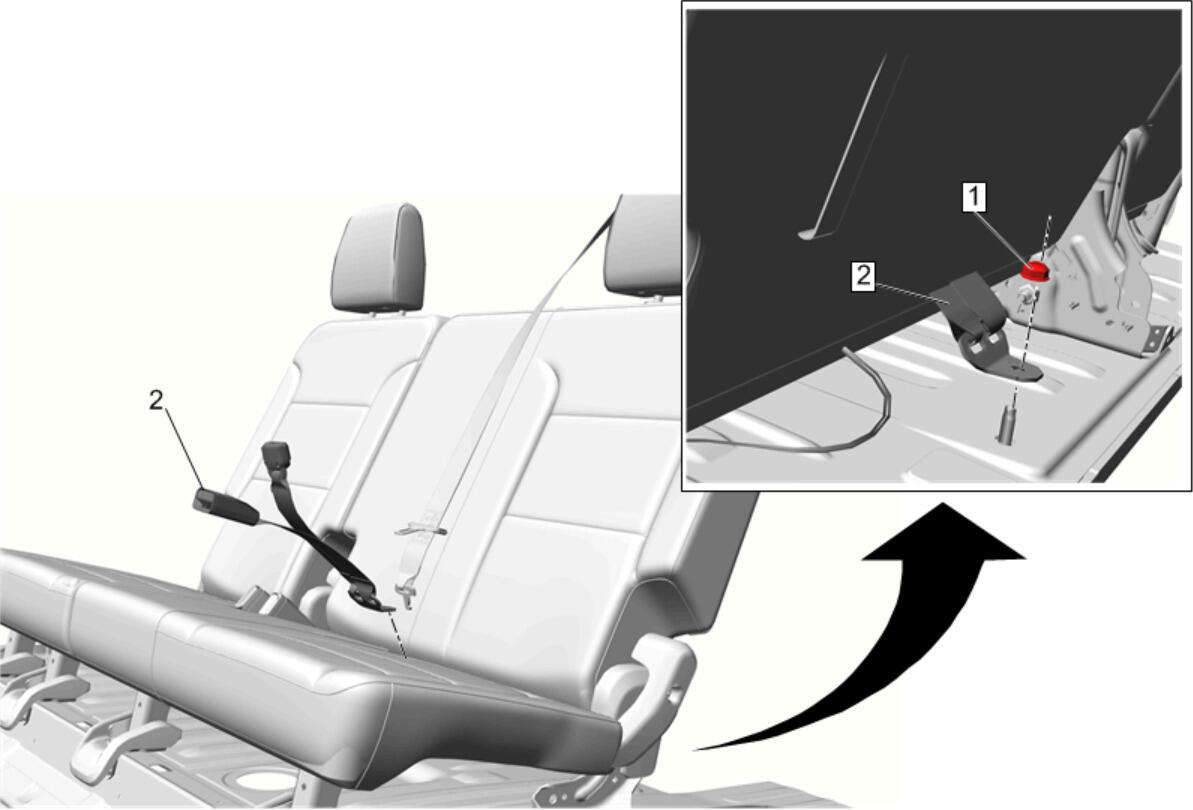

GM4769184Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
3rd Row Seat Belt Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 3rd Row Seat Belt Buckle Nut - - 45 N.m (33 lb ft) 3rd Row Seat Belt Buckle Replacement

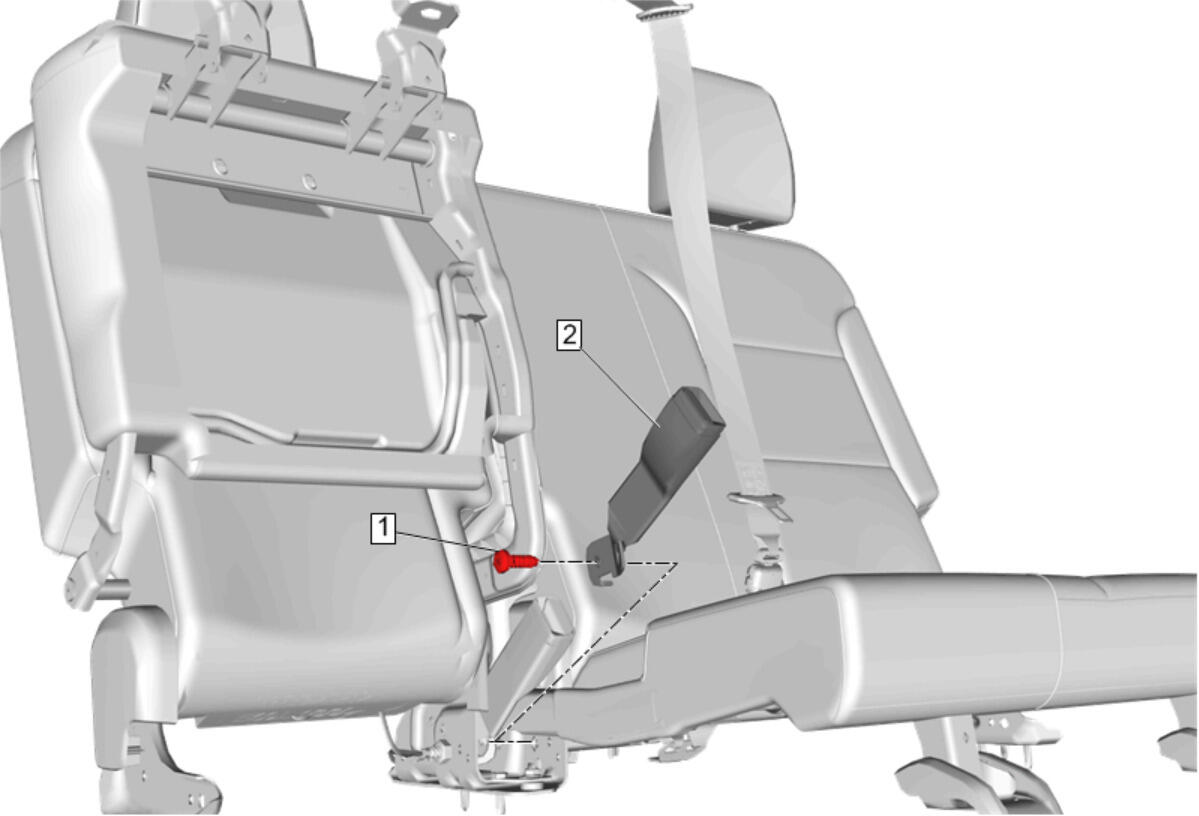

GM4769182Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
3rd Row Seat Belt Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 3rd Row Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) 3rd Row Center Seat Belt Buckle Replacement

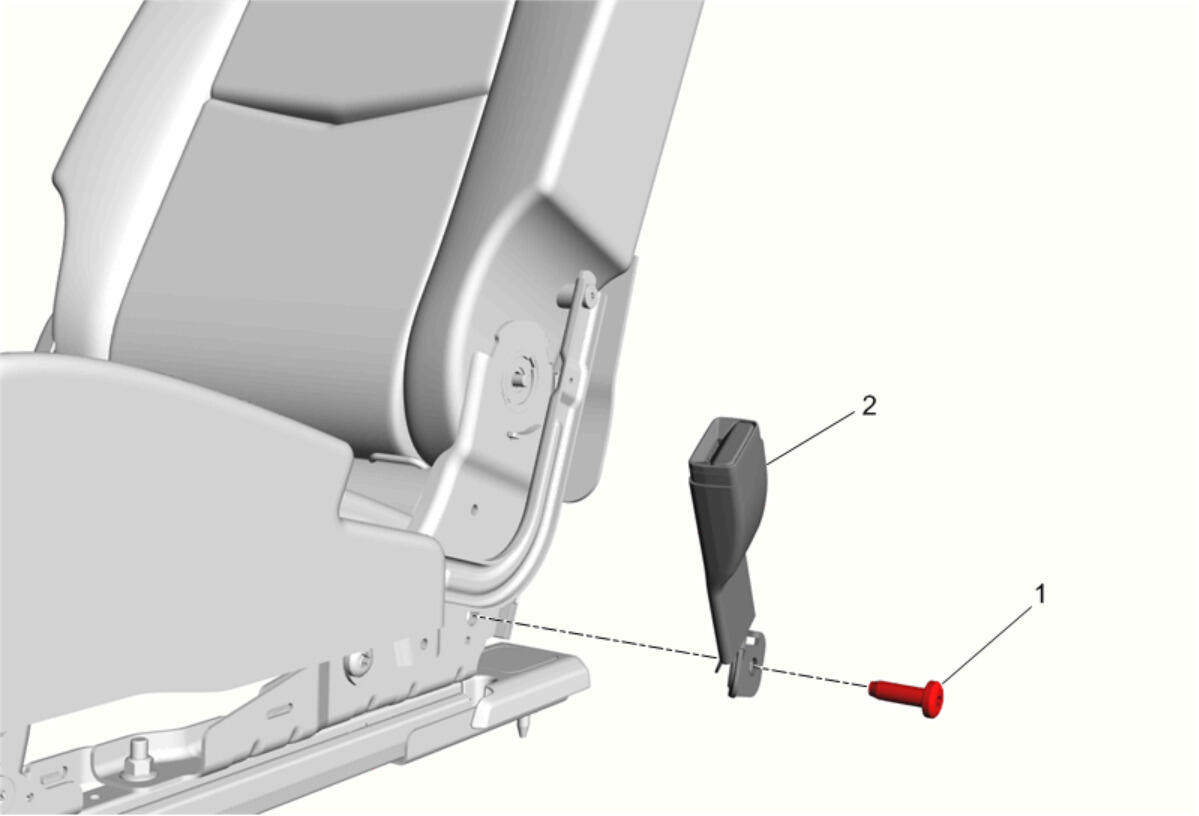

GM4321225Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Seat Belt Buckle 40%)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement (40%)

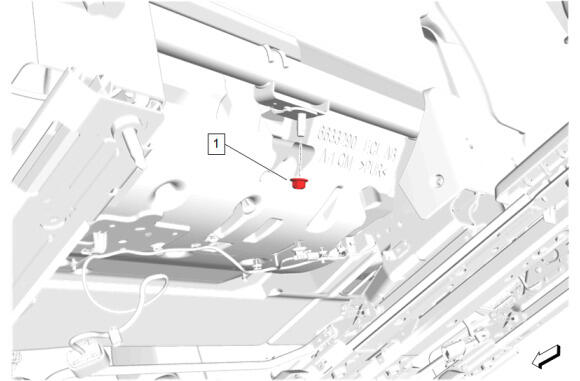

GM6656040Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Seat Belt Buckle 60%)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Center Belt Nut - - 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement (60%)

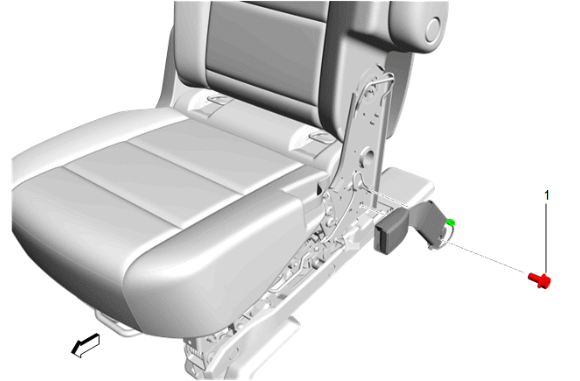

GM6725779Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Seat Belt Buckle (Captain)

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Rear Seat Belt Buckle Replacement (40%) , or Rear Seat Belt Buckle Replacement (60%) , or Rear Seat Belt Buckle Replacement (bucket)

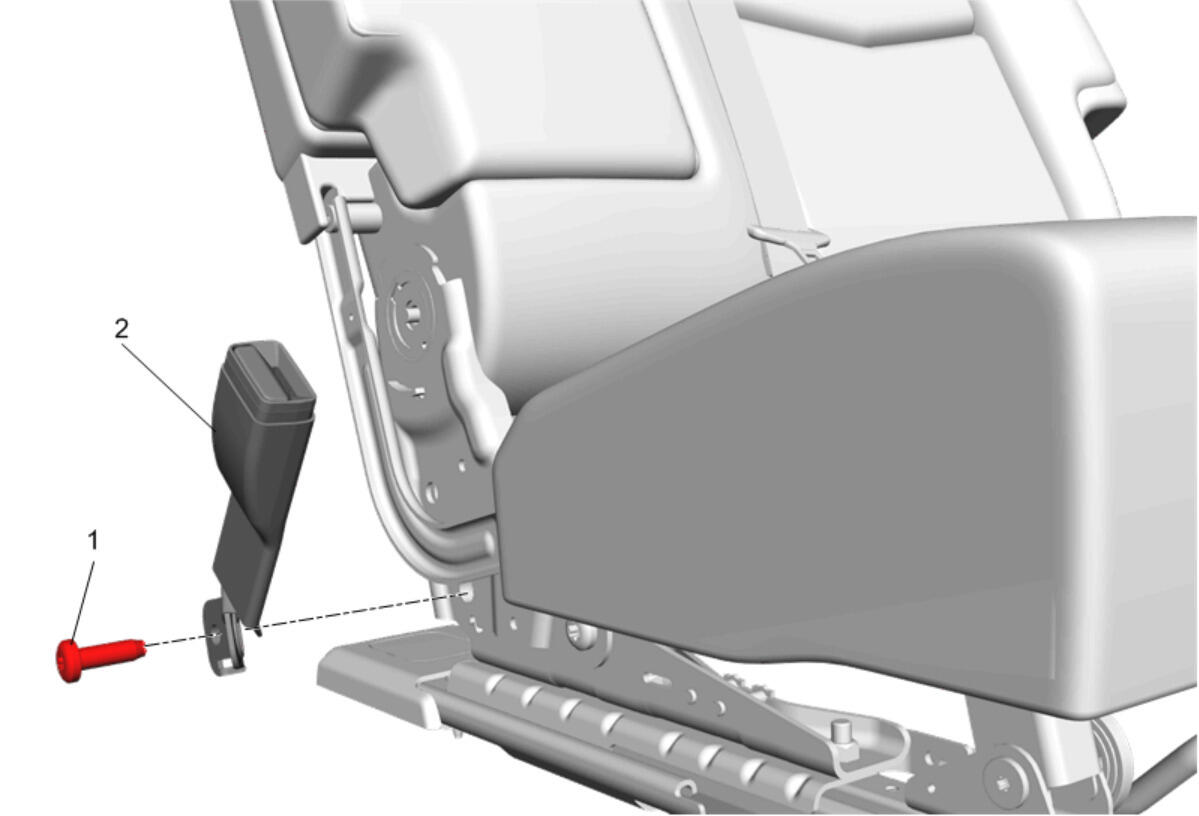

GM4316535Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Center Seat Belt Buckle

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Center Seat Belt Buckle Bolt - Yes 45 N.m (33 lb ft) Rear Center Seat Belt Buckle Replacement

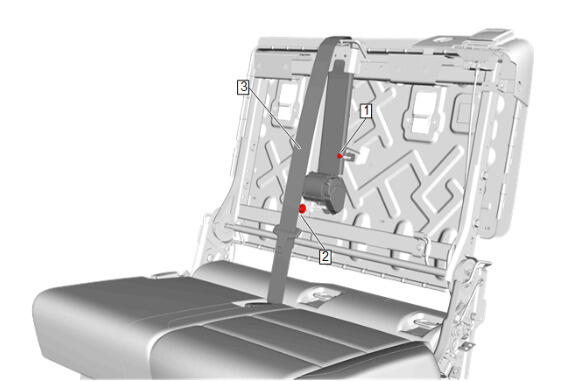

GM6419423Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Seat Center Belt Retractor

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Center Seat Belt Retractor Sleeve Bolt - - 2.5 N.m (22 lb in) Rear Seat Center Belt Retractor Replacement
2 Rear Seat Center Belt Nut - - 45 N.m (33 lb ft) Rear Seat Center Belt Retractor Replacement

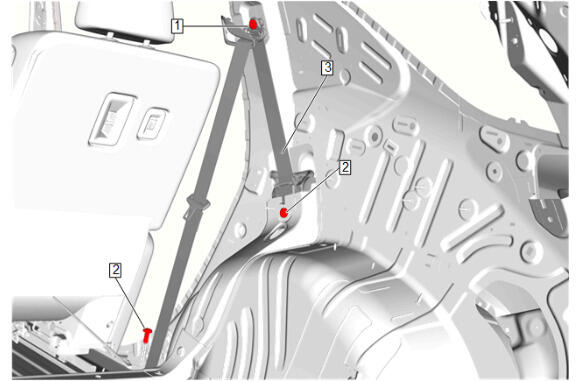

GM6387946Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Rear Seat Belt Retractor

Callout Component Name Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Seat Belt Guide Bolt - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
2 Rear Seat Belt Retractor Bolt [2x] - - 45 N.m (33 lb ft) Rear Seat Belt Retractor Replacement
