Removal Procedure

  1. Reposition the seat as necessary.

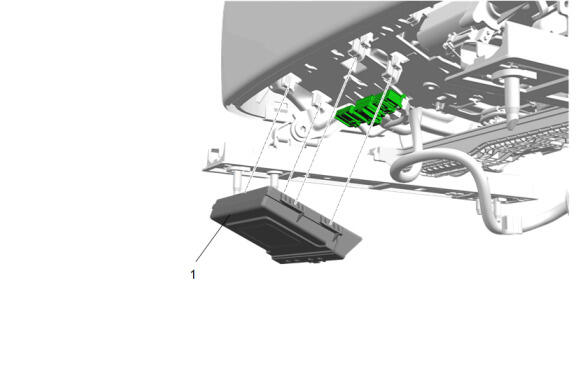

  2. GM5949500Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  3. Release the retaining tabs.
  4. Driver Seat Adjuster Memory Module (1) - Remove
