Fastener Specifications
NOTE:

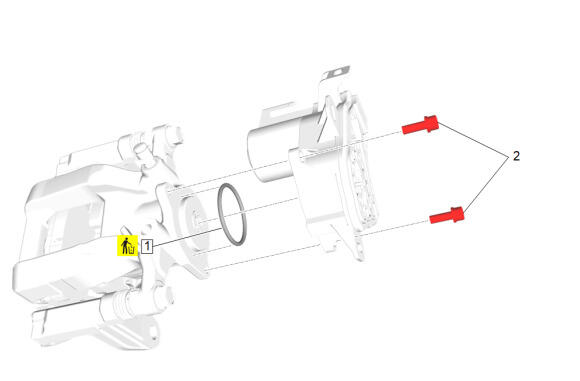

Callout items in the following chart represent components shown in graphic above.
Parking Brake Actuator Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Parking Brake Actuator Lever Seal | Yes | - | - | Parking Brake Actuator Replacement |
| 2 | Parking Brake Actuator Bolt [2x] | - | - | 9.5 N.m (84 lb in) | Parking Brake Actuator Replacement |
