Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Lower Crankcase Extension Coolant Hose (2) - Install

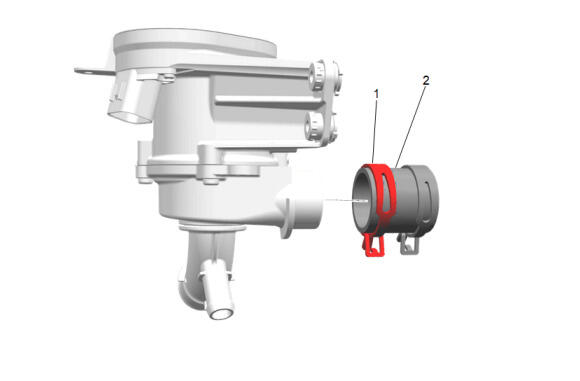

Hose Clamp (1) @ Water Pump Module - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

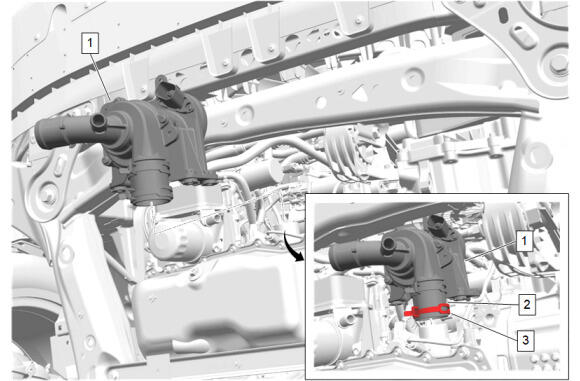

Water Pump Module (1) & Lower Crankcase Extension Coolant Hose (2) - Install
Hose Clamp (3) @ Lower Crankcase Extension - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

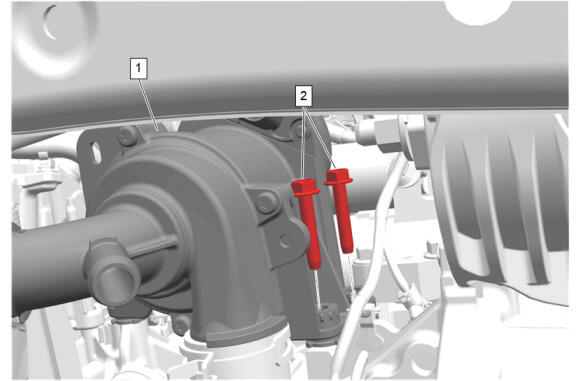

Water Pump Bolt (2) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

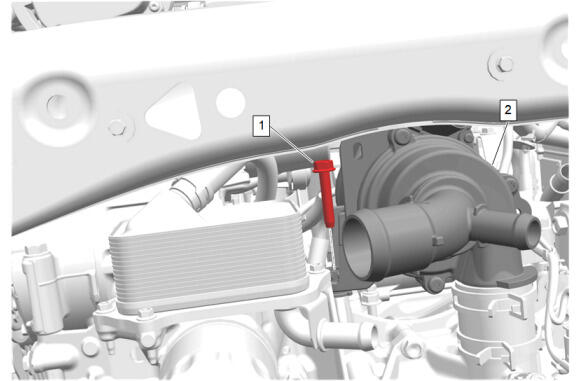

Water Pump Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

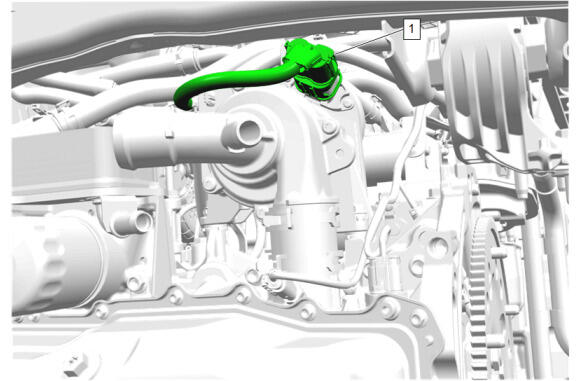

Connect the electrical connector and install the wiring harness retainers as necessary. (1)
Courtesy of GENERAL MOTORS COMPANY

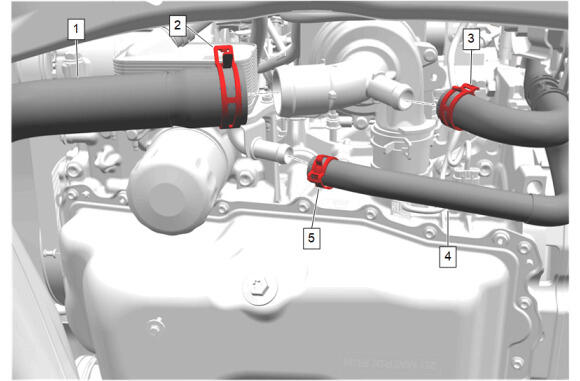

Water Pump Inlet Hose (4) @ Engine Oil Cooler - Install
Hose Clamp (5) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Water Pump Inlet Hose (4) @ Water Pump Module - Install
Hose Clamp (3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Radiator Outlet Hose (1) @ Water Pump Module - Install
Hose Clamp (2) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

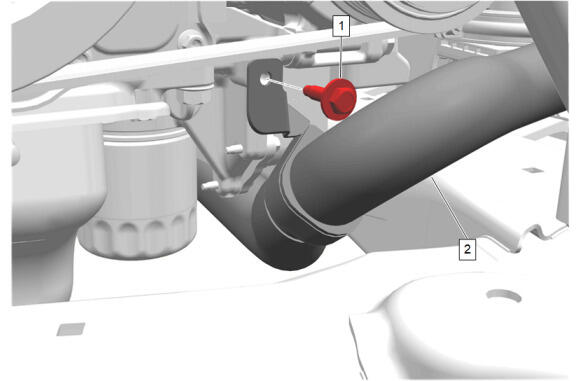

Radiator Outlet Hose Bracket Bolt (1) @ Radiator Outlet Hose (2) - Install and tighten - Fastener Specifications
Install underbody panels as necessary. Underbody Panel Component Locator
Fill the cooling system. Cooling System Draining and Filling (GE 47716)
Perform the engine coolant pump data reset. Engine Coolant Pump Data Reset
