Center Console Components

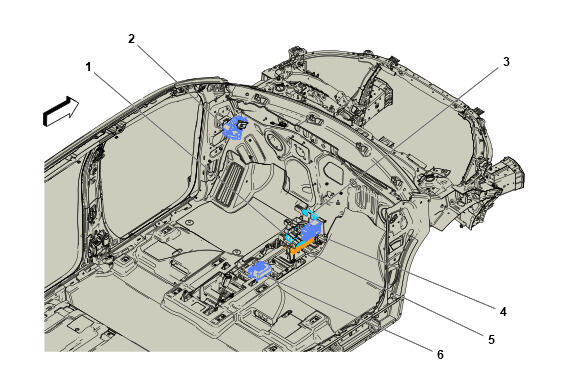

GM6425131Courtesy of GENERAL MOTORS COMPANY
Items
1. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 , or K56 Serial Data Gateway Module X2 , or K56 Serial Data Gateway Module X3
2. K219 Exterior Lighting Control Module K219 Lighting Control Module X1 , or K219 Lighting Control Module X2 , or K219 Lighting Control Module X3 , or K219 Lighting Control Module X4 , or K219 Lighting Control Module X5
3. T19 Power Supply Transformer T19 Multifunction Power Supply Converter
4. X51A Fuse Block - Instrument Panel X51A Instrument Panel Wiring Harness Junction Block X1 , or X51A Instrument Panel Wiring Harness Junction Block X2 , or X51A Instrument Panel Wiring Harness Junction Block X3 , or X51A Instrument Panel Wiring Harness Junction Block X4
5. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7 , or K9 Body Control Module X8
6. K36 Inflatable Restraint Sensing and Diagnostic Module K36 Restraints Control Module X1 , or K36 Restraints Control Module X2
