Fastener Specifications

GM6389399Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout items in the following chart represent components shown in graphic above.
Front Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Frame Rear Applique Bolt [2X] - - 2.5N.m (22 Lb In) Front Side Door Window Frame Rear Applique Replacement

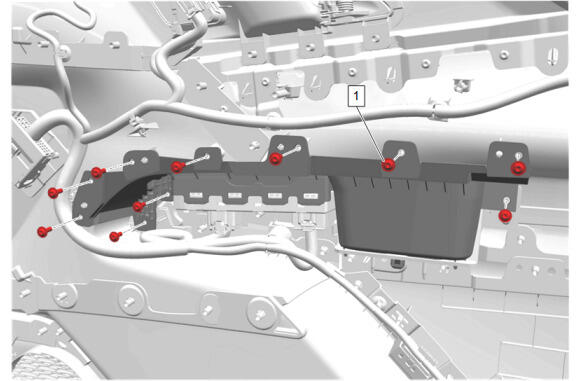

GM6557761Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Front Switch Plate

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Switch Plate Bolt [10X] - - 1 N.m (9 Lb In) front Side Door Window Control Switch Replacement
GM6389465Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Rear Side Door Window Frame Rear Applique

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Frame Rear Applique Bolt [2X] - - 2.5N.m (22 Lb In) front Side Door Window Frame Rear Applique Replacement

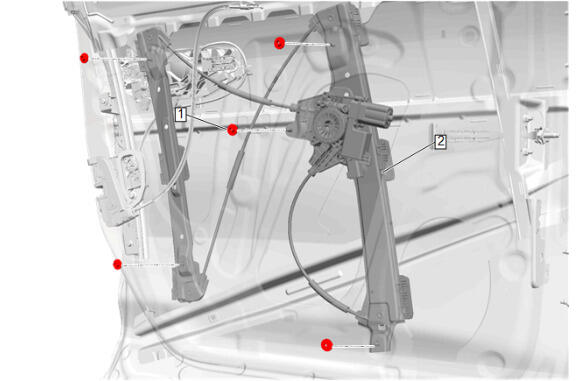

GM6389404Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Front Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Nut [5X] - - 11 N.m (97 Lb In) front Side Door Window Regulator Replacement
2 Front Side Door Window Regulator (Studs) - Yes - front Side Door Window Regulator Replacement

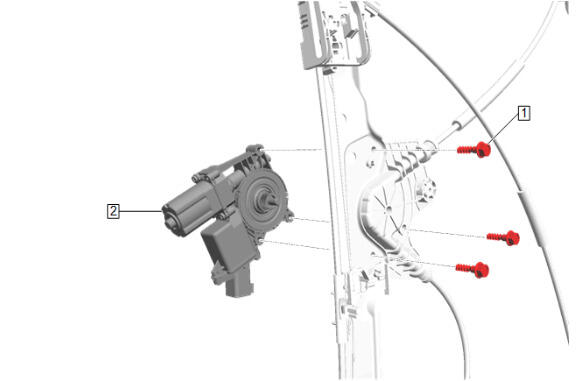

GM6389405Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Front Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Regulator Motor Bolt [3X] - - 2.5N.m (22 Lb In) front Side Door Window Regulator Motor Replacement

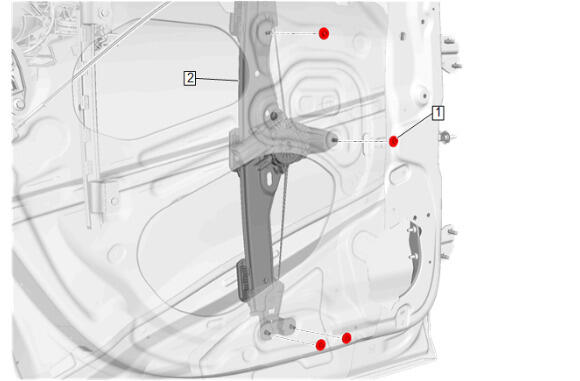

GM6389471Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Rear Side Door Window Regulator

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Nut [4X] - - 11 N.m (97 Lb In) rear Side Door Window Regulator Replacement
GM6389471Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Rear Side Door Window Regulator Motor

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Regulator Motor Bolt [3X] - - 11 N.m (97 Lb In) rear Side Door Window Regulator Motor Replacement

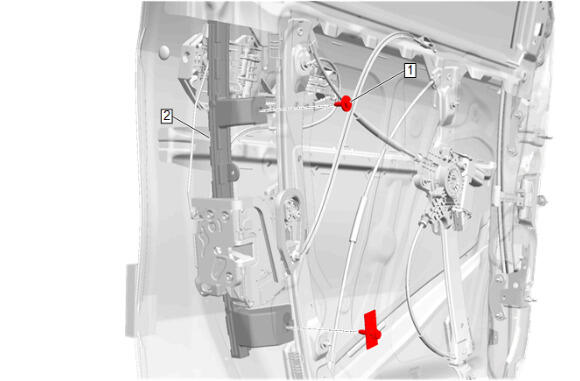

GM6389398Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Front Side Door Window Channel Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Channel Retainer Bolt [2X] - Yes 11 N.m (97 Lb In) front Side Door Window Channel Retainer Replacement

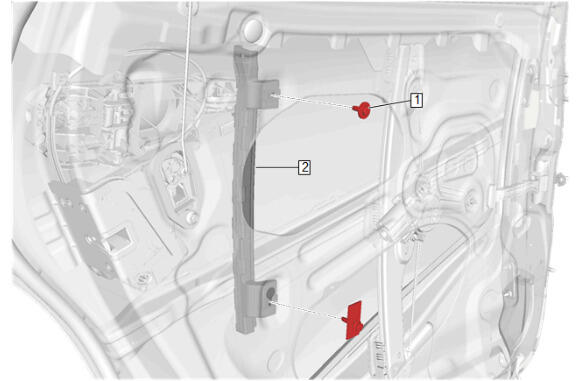

GM6389464Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Rear Side Door Window Channel Rear Retainer

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Channel Rear Bolt [2X] - Yes 11 N.m (97 Lb In) rear Side Door Window Channel Rear Retainer Replacement
GM6389463Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Rear Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Belt Reveal Molding [2X] - - 2.5N.m (22 Lb In) Rear Side Door Window Belt Reveal Molding Replacement

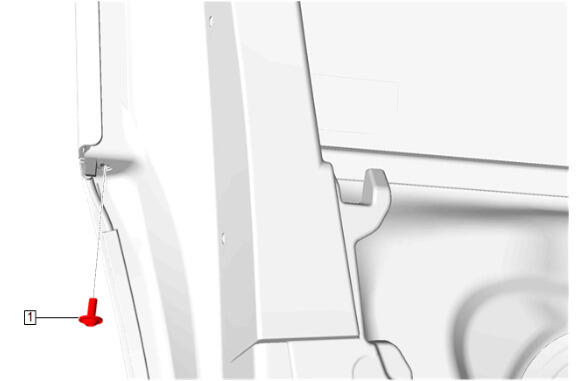

GM6389397Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Front Side Door Window Belt Reveal Molding

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Front Side Door Window Belt Reveal Molding Bolt - - 2.5N.m (22 Lb In) Front Side Door Window Belt Reveal Molding Replacement
GM6389476Courtesy of GENERAL MOTORS COMPANY
NOTE: Callout Items In The Following Chart Represent Components Shown In Graphic Above.
Rear Side Door Window Weatherstrip

Callout Component Name [Component Quantity] Single Use Fastener/Component Thread Locking Adhesive Required Specification Procedure
Metric (English)
1 Rear Side Door Window Weatherstrip Bolt - Yes 2.5N.m (22 Lb In) Rear Side Door Window Weatherstrip Replacement
