Installation Procedure

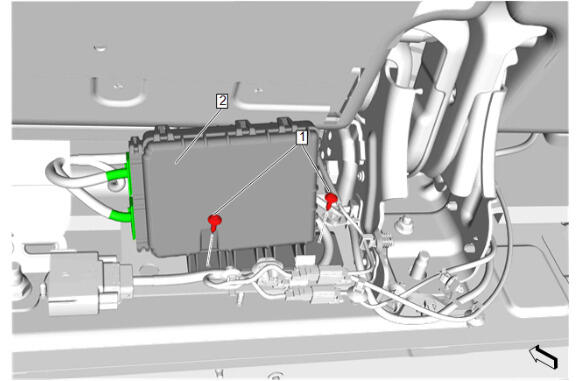

  1. GM6578572Courtesy of GENERAL MOTORS COMPANY

    Folding 3rd Row Seat Module (2) - Install

  2. Connect the electrical connectors.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Folding 3rd Row Seat Module Screw (1) - Install and tighten [2x] - Fastener Specifications
  4. GM6399531Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Floor Stowage Compartment Divider (2) - Install

  5. Rear Compartment Floor Stowage Compartment Divider Retainer (1) - Install and tighten [4x] - Fastener Specifications

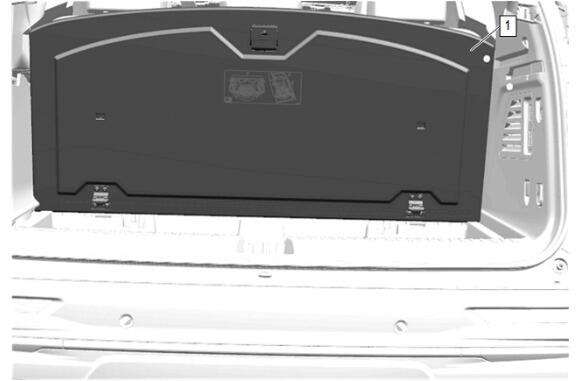

  6. GM6671599Courtesy of GENERAL MOTORS COMPANY

    Fold the load floor trim panel (1) down.

  7. Perform the necessary programming and setup procedure: Power Folding Seat Calibration
