Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

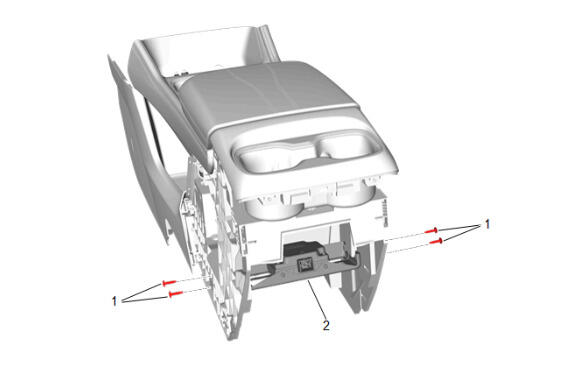

Accessory AC and DC Power Control Module Bracket - Rear (3) @ DC/AC Converter Control Module (4) - Install
Accessory AC and DC Power Control Module Bracket - Front (2) @ DC/AC Converter Control Module (4) - Install

CAUTION:

Accessory AC and DC Power Control Module Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

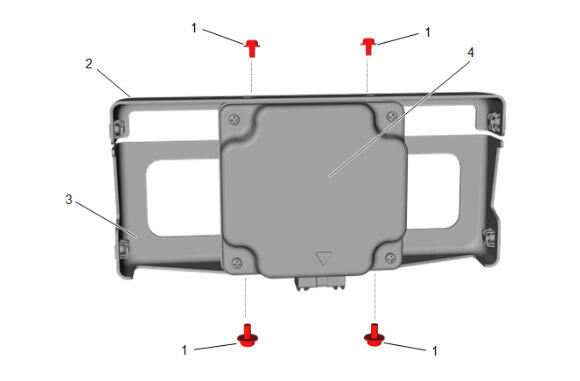

DC/AC Converter Control Module Asm (2) - Install
Accessory AC and DC Power Control Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

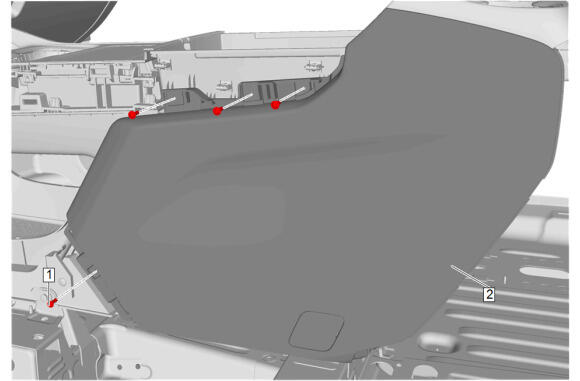

Front Floor Rear Console Side Trim Panel - Left Side (2) - Install
Front Floor Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

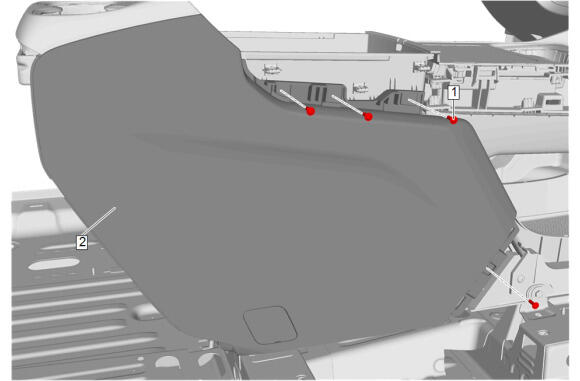

Front Floor Rear Console Side Trim Panel - Right Side (1) - Install
Front Floor Console Side Trim Panel Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

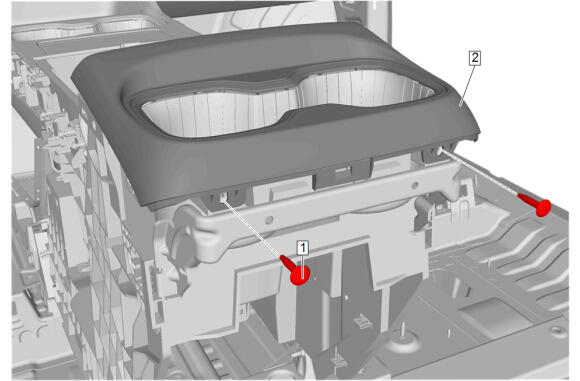

Front Floor Console Rear Trim Lower Panel (2) - Install
Front Floor Console Cup Holder Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

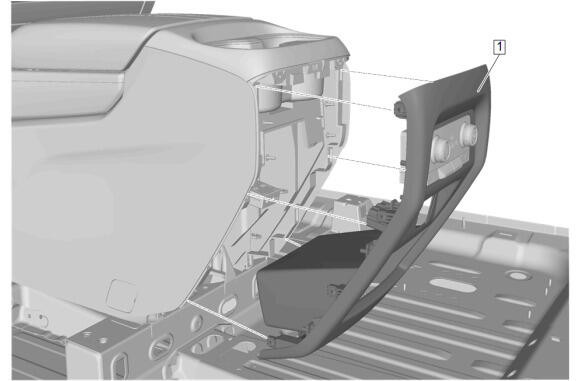

Front Floor Console Rear Trim Panel (1) - Install
Front Floor Console - Install - Front Floor Console Removal and Installation
