Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

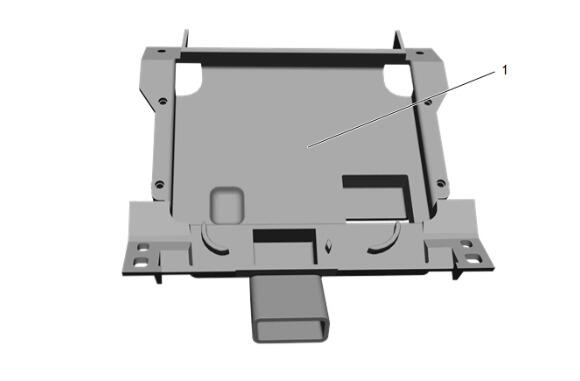

Wireless Charging System Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

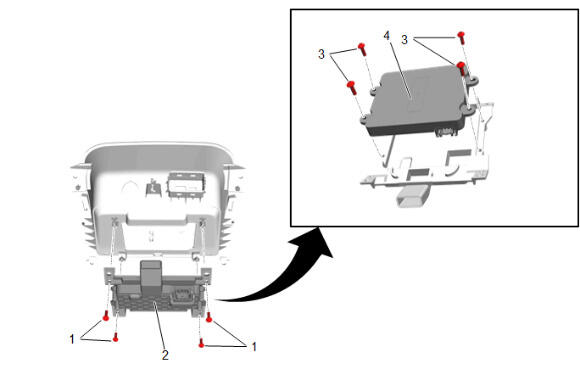

Wireless Charging System Module (4) - Install

CAUTION:

Wireless Charging System Module Bolt (3) - Install and tighten [4x] - Fastener Specifications
Wireless Charging System Module Assembly (2) - Install
Wireless Charging System Module Bracket Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.

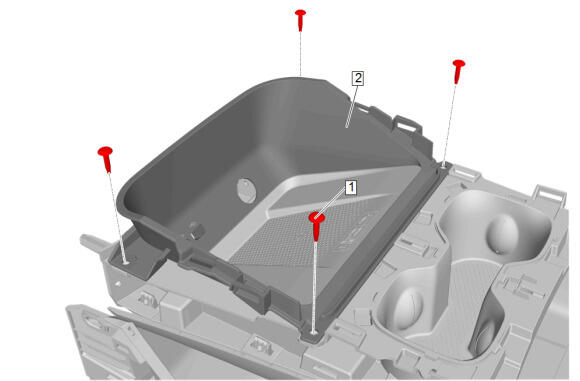

Front Floor Console Front Compartment (2) - Install
Front Floor Console Compartment Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

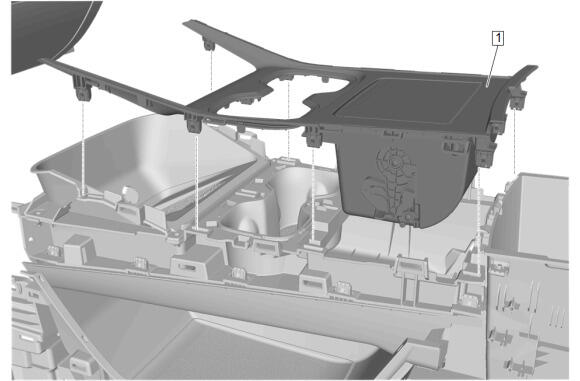

Front Floor Console Upper Panel (1) - Install
Front Floor Console - Install - Front Floor Console Removal and Installation
