Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

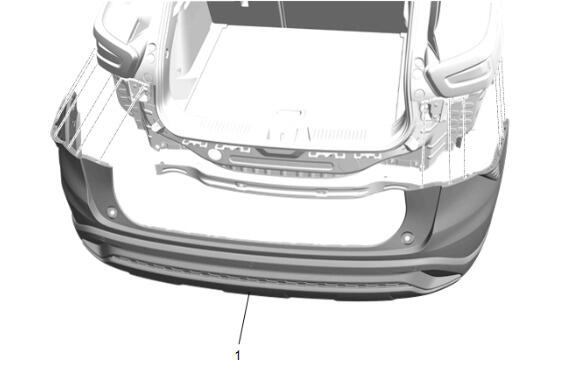

Rear Bumper Fascia (1) - Remove - Rear Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

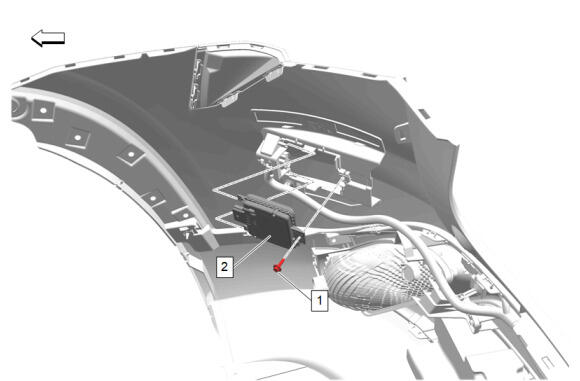

NOTE:
Right side shown, left side similar.

Disconnect the electrical connector.
Side Object Sensing Alert Module Bolt (1) - Remove
Side Object Sensing Alert Module (2) - Remove
