Removal Procedure

  1. GM5911455Courtesy of GENERAL MOTORS COMPANY

    Using a suitable plastic trim tool, release the retaining tabs.

  2. Front Floor Console Compartment Liner (1) - Remove

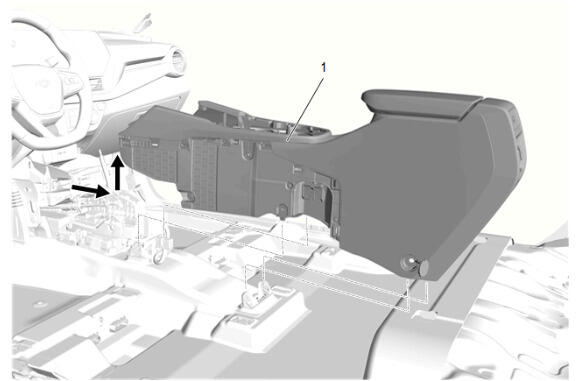

  3. GM5911443Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Remove - Front Floor Console Removal and Installation

  4. GM6154998Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray Bolt (1) - Remove [2x]

  5. GM6200039Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Air Duct (1) @ Wireless Charging System Module - Disconnect

  6. GM5911600Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Stowage Tray (1) - Remove

  7. GM5911641Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

  8. GM5918301Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [3x]

  9. Wireless Charging System Module Assembly (2) - Remove
  10. GM5918306Courtesy of GENERAL MOTORS COMPANY

    Wireless Charging System Module Bolt (1) - Remove [4x]

  11. Wireless Charging System Module Bracket (2) @ Wireless Charging System Module - Remove
