Installation Procedure

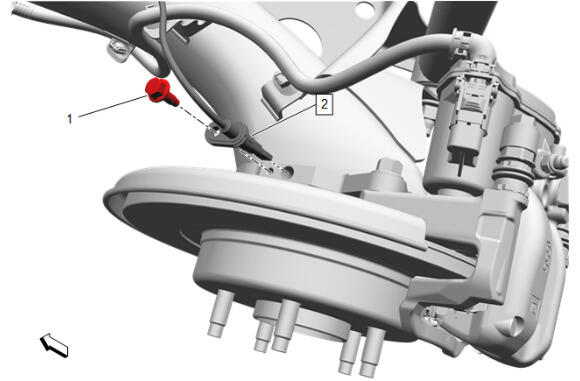

  1. GM5917842Courtesy of GENERAL MOTORS COMPANY

    Rear Wheel Speed Sensor (2) @ Rear Axle - Install

    2. CAUTION:

    Fastener Caution

  2. Rear Wheel Speed Sensor Bolt (1) @ Rear Axle - Install and tighten - Fastener Specifications

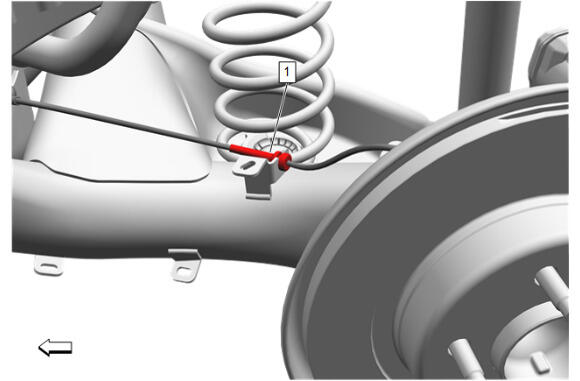

  3. GM5917840Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Secure

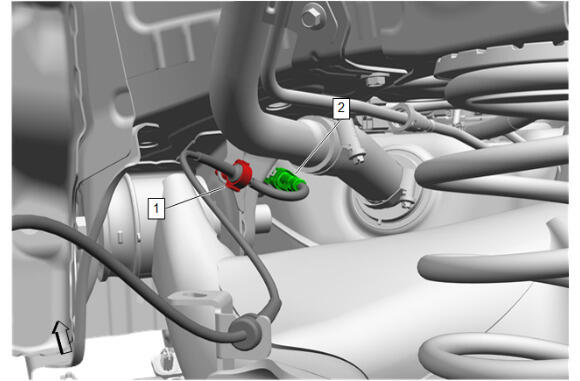

  4. GM5917838Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) @ Body Wiring Harness - Connect

  5. Wiring Harness Retainer (1) - Secure
  6. Lower the vehicle.
